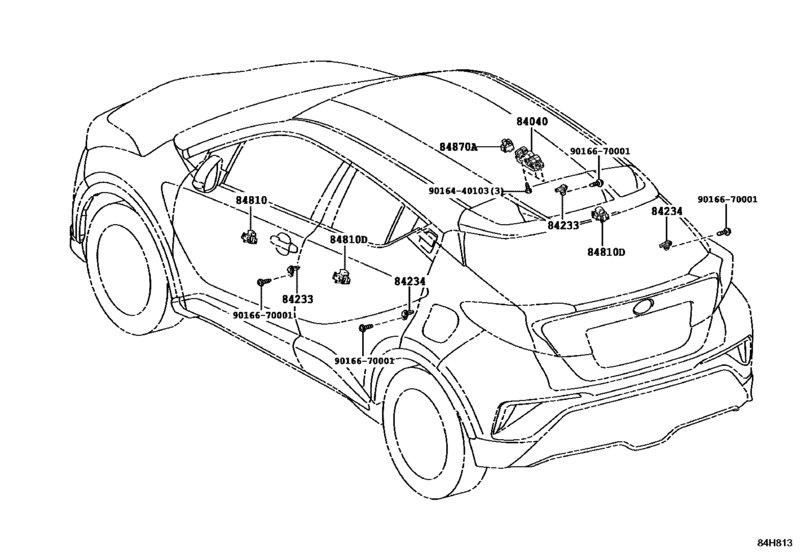

Switch & Relay & Computer ([12.2016 - ] ﾄﾞｱ & ﾙｰﾌ (1612- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZYX10
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- From
- 12.2016
- No.of Doors
- 5D
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84040
|
84040
84040-10010 Master Switch Assy,multiplex Network[12.2016 -] NGX50,ZYX10 |
84040-10010 |
US $289.60 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[12.2016 -] NGX50,ZYX10 |
84231-60070 |
from US $11.83 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[12.2016 -] NGX50,ZYX10 |
84231-60070 |
from US $11.83 |
||
|
84810
|
84810
84810-10030 Switch Assy, Power Window Regulator[12.2016 -] NGX50,ZYX10 |
84810-10030 |
US $45.14 |
||
|
84810D
|
84810D
84810-10030 Switch Assy, Power Window Regulator[12.2016 -] NGX50,ZYX10 |
84810-10030 |
US $45.14 |
||
|
84870A
|
84870A
84872-47060 Switch Assy, Outer Mirror[12.2016 -] NGX50,ZYX10 |
84872-47060 |
from US $43.32 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.74 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $1.08 |
