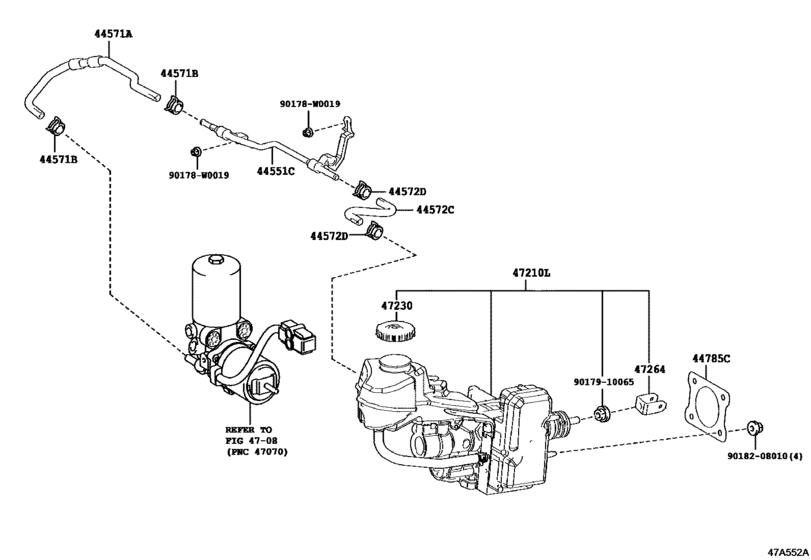

Brake Master Cylinder ([10.2016 - ] (1610- )ZYX10..LHD) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- ZYX10
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- EUR
- From
- 10.2016
- Model Mark
- N
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44551C
|
44551C
44551-47050
Tube, Brake Actuator, No.1
[10.2016 -] ZYX10..LHD |
44551-47050 |
— | ||
|
44571A
|
44571A
44571-47070
Hose, Brake Actuator, No.1
[10.2016 -] ZYX10..LHD |
44571-47070 |
— | ||
|
44571B
|
44571B
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[10.2016 -] ZYX10 |
96137-41501 |
from US $2.15 |
||
|
44572C
|
44572C
44572-47050
Hose, Brake Actuator, No.2
[10.2016 -] ZYX10..LHD |
44572-47050 |
— | ||
|
44572D
|
44572D
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[10.2016 -] ZYX10 |
96137-41501 |
from US $2.15 |
||
|
44785C
|
44785C
44785-05020 Gasket, Brake BoosterBRAKE BOOSTER [10.2016 -] ZYX10 |
44785-05020 |
US $8.59 |
||
|
47210L
|
47210L
47050-10010
Brake Booster Assy, W/master Cylinder
[10.2016 -] ZYX10..LHD |
47050-10010 |
— | ||
|
47210L
|
47210L
47050-10020
Brake Booster Assy, W/master Cylinder
[10.2016 -] ZYX10..LHD TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES |
47050-10020 |
— | ||
|
47210L
|
47210L
47050-10030
Brake Booster Assy, W/master Cylinder
[10.2016 -] ZYX10..LHD..N TIRE & DISC WHEEL-215/65R16 ALUMINUM |
47050-10030 |
— | ||
|
47230
|
47230
47230-47090 Cap Assy, Brake Master Cylinder Reservoir Filler[10.2016 -] ZYX10 |
47230-47090 |
from US $12.09 |
||
|
47264
|
47264
47264-12060 Clevis, Master Cylinder Push Rod[10.2016 -] ZYX10 |
47264-12060 |
from US $3.35 |
||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
|
9018208010
|
9018208010
90182-08010 New Genuine Part |
90182-08010 |
US $0.61 |
