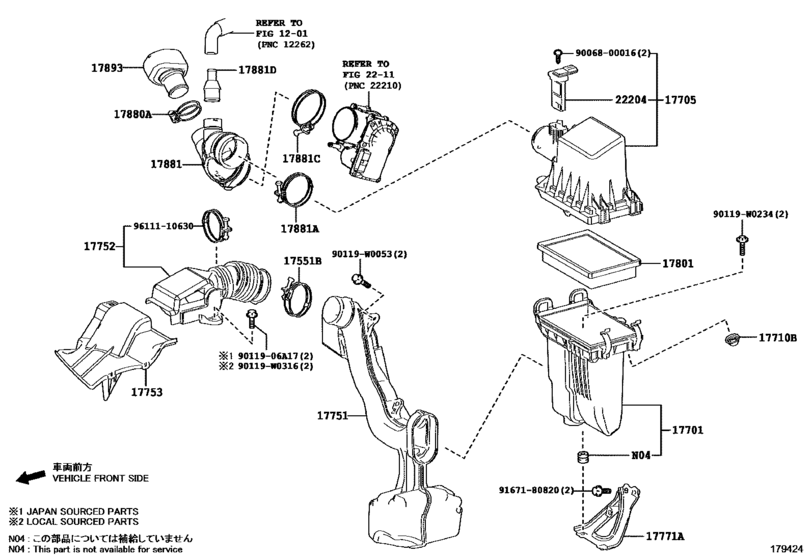

Air Cleaner ([10.2016 - ] (1610- )2ZRFXE) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- ZYX10
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- EUR
- From
- 10.2016
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17551B
|
17551B
96111-10650 Clamp(For Air Cleaner Inlet, No.1)[10.2016 -] 2ZRFXE..ZYX10 |
96111-10650 |
from US $2.73 |
||
|
17701
|
17701
17701-0T140
Case Sub-Assy, Air Cleaner
[10.2016 -] 2ZRFXE..ZYX10 |
17701-0T140 |
— | ||
|
17705
|
17705
17705-0T170
Cap Sub-Assy, Air Cleaner
[10.2016 -] 2ZRFXE..ZYX10 |
17705-0T170 |
— | ||
|
17710B
|
17710B
90480-18006 Grommet(For Ventilation System)[10.2016 -] 8NRFTS..NGX10,50; 2ZRFXE,3ZRFAE..ZGX10,ZYX10 |
90480-18006 |
from US $2.32 |
||
|
17751
|
17751
17751-0T190
Inlet, Air Cleaner, No.1
[10.2016 -] 2ZRFXE..ZYX10 |
17751-0T190 |
— | ||
|
17752
|
17752
17752-0T060 Inlet, Air Cleaner, No.2[10.2016 -] 2ZRFXE..ZYX10 |
17752-0T060 |
US $35.80 |
||
|
17753
|
17753
17753-0T010 Inlet, Air Cleaner, No.3[10.2016 -] 2ZRFXE..ZYX10 |
17753-0T010 |
US $15.09 |
||
|
17771A
|
17771A
17771-0T010
Bracket, Air Cleaner
[10.2016 -] 2ZRFXE..ZYX10 |
17771-0T010 |
— | ||
|
17801
|
17801
17801-0M040 Element Sub-Assy, Air Cleaner Filter[10.2016 -] 2ZRFXE..ZYX10 (L) |
17801-0M040 |
US $54.70 |
||
|
17801
|
17801
17801-21060 Element Sub-Assy, Air Cleaner Filter[10.2016 -] 2ZRFXE..ZYX10 (J) |
17801-21060 |
from US $25.63 |
||
|
17880A
|
17880A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[10.2016 -] 2ZRFXE..ZYX10 |
96111-10460 |
from US $2.85 |
||
|
17881
|
17881
17881-0T440
Hose, Air Cleaner, No.1
[10.2016 -] 2ZRFXE..ZYX10 |
17881-0T440 |
— | ||
|
17881A
|
17881A
96111-10650 Clamp(For Air Cleaner Inlet, No.1)[10.2016 -] 2ZRFXE..ZYX10 |
96111-10650 |
from US $2.73 |
||
|
17881C
|
17881C
96111-10750 Clamp, Hose(For Air Cleaner Duct)[10.2016 -] 2ZRFXE,3ZRFAE..ZGX10,ZYX10 |
96111-10750 |
from US $3.40 |
||
|
17881D
|
17881D
90904-06008 Tube, Union(Fog Air Cleaner Hose)[10.2016 -] 2ZRFXE..ZYX10 |
90904-06008 |
from US $6.09 |
||
|
17893
|
17893
17893-0T050
Resonator, Intake Air
[10.2016 -] 2ZRFXE..ZYX10 |
17893-0T050 |
— | ||
|
22204
|
22204
22204-75030 Meter Sub-Assy, Intake Air Flow[10.2016 -] 2ZRFXE..ZYX10; 8NRFTS..NGX10,50 |
22204-75030 |
from US $95.22 |
||
|
90119W0053
|
90119W0053
90119-W0053 New Genuine Part |
90119-W0053 |
US $1.98 |
||
|
90119W0234
|
90119W0234
90119-W0234
New Genuine Part
|
90119-W0234 |
— | ||
|
9011906A17
|
9011906A17
90119-06A17 BOLT WWASHER |
90119-06A17 |
US $1.08 |
||
|
9006800016
|
9006800016
90068-00016 New Genuine Part |
90068-00016 |
US $0.73 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.86 |
||
|
9611110630
|
9611110630
96111-10630 Clamp, Hose |
96111-10630 |
US $4.12 |
