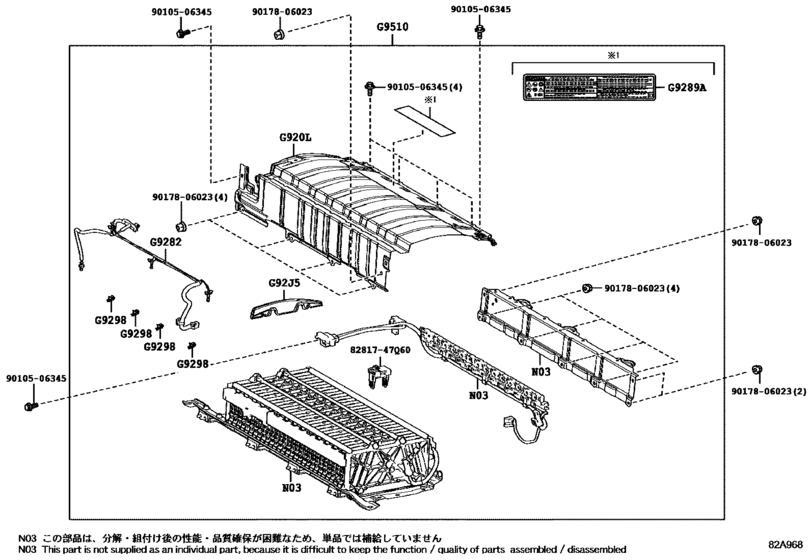

Battery & Battery Cable ([10.2016 - ] HV BATTERY (1610- )ZYX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZYX10
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- EUR
- From
- 10.2016
- Model Mark
- E
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8281747Q60
|
8281747Q60
82817-47Q60 Protector, Wiring Harness |
82817-47Q60 |
US $6.84 |
||
|
9010506345
|
9010506345
90105-06345 New Genuine Part |
90105-06345 |
US $1.08 |
||
|
9017806023
|
9017806023
90178-06023 New Genuine Part |
90178-06023 |
US $1.08 |
||
|
G92J5
|
G92J5
G92J5-47030 Packing, Hybrid Battery, No.1[10.2016 -] ZYX10 |
G92J5-47030 |
US $6.26 |
||
|
G920L
|
G920L
G920N-47090 Cover Sub-Assy, Hybrid Battery, Upper No.1[10.2016 -] ZYX10 |
G920N-47090 |
US $82.99 |
||
|
G9282
|
G9282
G9282-47050 Thermistor, Hybrid Battery[10.2016 -] ZYX10 |
G9282-47050 |
from US $103.27 |
||
|
G9289A
|
G9289A
G9288-48040 Label, Battery Charging NoticeBATTERY CARGING NOTICE [10.2016 -] ZYX10 |
G9288-48040 |
US $5.10 |
||
|
G9298
|
G9298
G928E-47010 Clamp, Hv Battery[10.2016 -] ZYX10 |
G928E-47010 |
from US $1.46 |
||
|
G9510
|
G9510
G9510-47130 Battery Assy, Hv Supply (Cannot supply)[10.2016 -] ZYX10 |
G9510-47130 |
US $1,771.52 |
