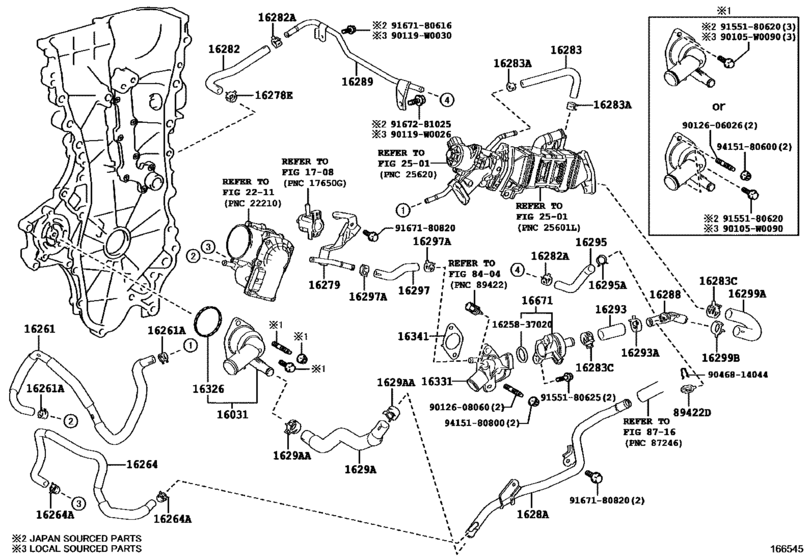

Radiator & Water Outlet ([10.2016 - ] (1610- )2ZRFXE) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- ZYX10
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- EUR
- From
- 10.2016
- Model Mark
- G
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1628A
|
1628A
16268-0T180
Pipe, Water By-Pass, No.6
[10.2016 -] 2ZRFXE..ZYX10 (L) |
16268-0T180 |
— | ||
|
1628A
|
1628A
16268-37110 Pipe, Water By-Pass, No.6[10.2016 -] 2ZRFXE..ZYX10 (J) |
16268-37110 |
US $37.13 |
||
|
1629A
|
1629A
16267-0T090
Hose, Water By-Pass, No.14
[10.2016 -] 2ZRFXE..ZYX10 (L) |
16267-0T090 |
— | ||
|
1629A
|
1629A
16267-37100 Hose, Water By-Pass, No.14[10.2016 -] 2ZRFXE..ZYX10 (J) |
16267-37100 |
US $16.97 |
||
|
1629AA
|
1629AA
90466-W0007
Clip(For Water By-Pass Hose No.1)
[10.2016 -] 2ZRFXE..ZYX10 (L) |
90466-W0007 |
— | ||
|
1629AA
|
1629AA
96136-42501 Clip(For Ventilation Hose)[10.2016 -] 2ZRFXE..ZYX10 (J) |
96136-42501 |
from US $3.24 |
||
|
16031
|
16031
16031-37010 Water Inlet Sub-Assy, W/thermostatW/THERMOSTAT [10.2016 -] 2ZRFXE..ZYX10 |
16031-37010 |
from US $38.75 |
||
|
16261
|
16261
16261-0T290
Hose, Water By-Pass
[10.2016 -] 2ZRFXE..ZYX10 (L) |
16261-0T290 |
— | ||
|
16261
|
16261
16261-37160 Hose, Water By-Pass[10.2016 -] 2ZRFXE..ZYX10 (J) |
16261-37160 |
from US $15.93 |
||
|
16261A
|
16261A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[10.2016 -] 2ZRFXE,3ZRFAE..ZGX10,ZYX10 |
96137-41501 |
from US $2.15 |
||
|
16264
|
16264
16264-0T230
Hose, Water By-Pass, No.2
[10.2016 -] 2ZRFXE..ZYX10 (L) |
16264-0T230 |
— | ||
|
16264
|
16264
16264-37130 Hose, Water By-Pass, No.2[10.2016 -] 2ZRFXE..ZYX10 (J) |
16264-37130 |
from US $16.44 |
||
|
16264A
|
16264A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[10.2016 -] 2ZRFXE,3ZRFAE..ZGX10,ZYX10 |
96137-41501 |
from US $2.15 |
||
|
16278E
|
16278E
90466-16005 Clip(For Water By-Pass Hose)NO.2(FOR OIL COOLER HOSE) [10.2016 -] 2ZRFXE..ZYX10 |
90466-16005 |
from US $1.83 |
||
|
16279
|
16279
16279-37020 Pipe, Water By-Pass, No.3[10.2016 -] 2ZRFXE..ZYX10 |
16279-37020 |
US $31.16 |
||
|
16282
|
16282
16282-37090 Hose, Water By-Pass, No.5[10.2016 -] 2ZRFXE..ZYX10 |
16282-37090 |
US $4.66 |
||
|
16282A
|
16282A
90466-16005 Clip(For Water By-Pass Hose)NO.2(FOR OIL COOLER HOSE) [10.2016 -] 2ZRFXE..ZYX10 |
90466-16005 |
from US $1.83 |
||
|
16283
|
16283
16283-0T060 Hose, Water By-Pass, No.6[10.2016 -] 2ZRFXE..ZYX10 (L) |
16283-0T060 |
US $4.66 |
||
|
16283
|
16283
16283-37021 Hose, Water By-Pass, No.6[10.2016 -] 2ZRFXE..ZYX10 (J) |
16283-37021 |
US $4.66 |
||
|
16283A
|
16283A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[10.2016 -] 2ZRFXE..ZYX10 |
96137-41501 |
from US $2.15 |
||
|
16283C
|
16283C
90466-W0007
Clip(For Water By-Pass Hose No.1)
[10.2016 -] 2ZRFXE..ZYX10 (L) |
90466-W0007 |
— | ||
|
16283C
|
16283C
96136-42501 Clip(For Ventilation Hose)[10.2016 -] 2ZRFXE..ZYX10 (J) |
96136-42501 |
from US $3.24 |
||
|
16288
|
16288
16288-37010 Pipe, Water By-Pass, No.4[10.2016 -] 2ZRFXE..ZYX10 |
16288-37010 |
US $10.39 |
||
|
16289
|
16289
16278-0T020
Pipe, Water By-Pass, No.5
[10.2016 -] 2ZRFXE..ZYX10 (L) |
16278-0T020 |
— | ||
|
16289
|
16289
16278-37020 Pipe, Water By-Pass, No.5[10.2016 -] 2ZRFXE..ZYX10 (J) |
16278-37020 |
US $28.54 |
||
|
16293
|
16293
16293-37010 Hose, Water By-Pass, No.10[10.2016 -] 2ZRFXE..ZYX10 |
16293-37010 |
US $6.99 |
||
|
16293A
|
16293A
96138-42501 Clip, Hose(For Radiator Hose Sub-Assy)[10.2016 -] 2ZRFXE..ZYX10 |
96138-42501 |
from US $2.96 |
||
|
16295
|
16295
16295-37020 Hose, Water By-Pass, No.7[10.2016 -] 2ZRFXE..ZYX10 |
16295-37020 |
US $4.66 |
||
|
16295A
|
16295A
90466-16005 Clip(For Water By-Pass Hose)NO.2(FOR OIL COOLER HOSE) [10.2016 -] 2ZRFXE..ZYX10 |
90466-16005 |
from US $1.83 |
||
|
16297
|
16297
16297-37010 Hose, Water By-Pass, No.9[10.2016 -] 2ZRFXE..ZYX10 |
16297-37010 |
from US $5.44 |
||
|
16297A
|
16297A
90466-16005 Clip(For Water By-Pass Hose)NO.2(FOR OIL COOLER HOSE) [10.2016 -] 2ZRFXE..ZYX10 |
90466-16005 |
from US $1.83 |
||
|
16299A
|
16299A
16281-37070 Hose, Water By-Pass, No.13[10.2016 -] 2ZRFXE..ZYX10 |
16281-37070 |
US $8.42 |
||
|
16299B
|
16299B
96138-42501 Clip, Hose(For Radiator Hose Sub-Assy)[10.2016 -] 2ZRFXE..ZYX10 |
96138-42501 |
from US $2.96 |
||
|
16326
|
16326
16326-37020 Gasket, Water Inlet Housing, No.2WATER INLET HOUSING, NO.2 [10.2016 -] 2ZRFXE..ZYX10 |
16326-37020 |
from US $3.22 |
||
|
16331
|
16331
16331-37090 Outlet, Water[10.2016 -] 2ZRFXE..ZYX10 |
16331-37090 |
US $50.57 |
||
|
16341
|
16341
16341-37010 Gasket, Water Outlet[10.2016 -] 2ZRFXE..ZYX10 |
16341-37010 |
US $3.40 |
||
|
16671
|
16671
16671-37010 Valve, Water[10.2016 -] 2ZRFXE..ZYX10 |
16671-37010 |
US $95.12 |
||
|
89422D
|
89422D
89422-47010 Sensor, Water Temperature (For E.f.i.)[10.2016 -] ZYX10 |
89422-47010 |
US $40.49 |
||
|
90105W0090
|
90105W0090
90105-W0090
New Genuine Part
|
90105-W0090 |
— | ||
|
90119W0026
|
90119W0026
90119-W0026
New Genuine Part
|
90119-W0026 |
— | ||
|
90119W0030
|
90119W0030
90119-W0030
New Genuine Part
|
90119-W0030 |
— | ||
|
1625837020
|
1625837020
16258-37020 Gasket(For Heater Return) |
16258-37020 |
US $6.81 |
||
|
9012606026
|
9012606026
90126-06026 Bolt, Stud(Manifold To Throttle Body) |
90126-06026 |
from US $0.64 |
||
|
9012608060
|
9012608060
90126-08060 Bolt, Stud(For Intake Manifold To Cylinder Head)STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
90126-08060 |
from US $2.40 |
||
|
9046814044
|
9046814044
90468-14044 9046814044 |
90468-14044 |
US $1.08 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.64 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.64 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.86 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.13 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
