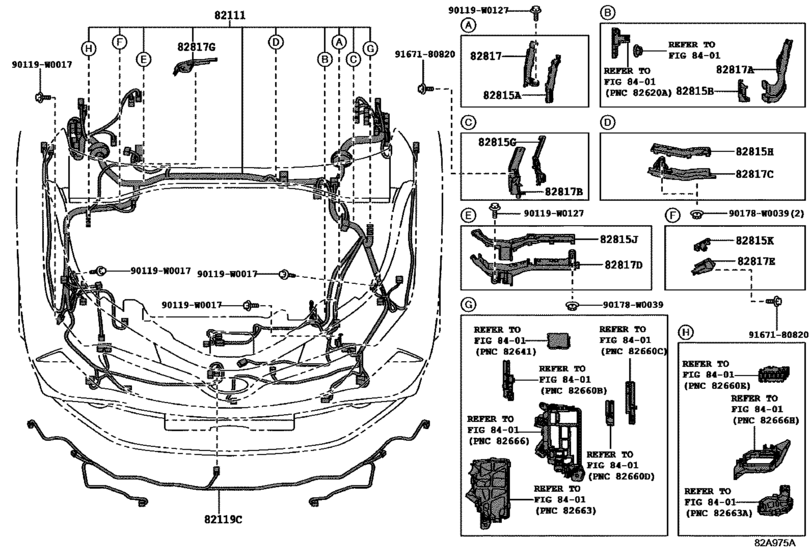

Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )ZYX10..RHD) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- ZYX10
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- EUR
- From
- 10.2016
- Model Mark
- N
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-F4520
Wire, Engine Room Main
[10.2016 -] ZYX10..RHD UNITED KINGDOM SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
82111-F4520 |
— | ||
|
82111
|
82111
82111-F4530
Wire, Engine Room Main
[10.2016 -] ZYX10..RHD |
82111-F4530 |
— | ||
|
82111
|
82111
82111-F4540
Wire, Engine Room Main
[10.2016 -] ZYX10..RHD UNITED KINGDOM SPEC |
82111-F4540 |
— | ||
|
82111
|
82111
82111-F4550
Wire, Engine Room Main
[10.2016 -] ZYX10..RHD HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
82111-F4550 |
— | ||
|
82111
|
82111
82111-F4E80
Wire, Engine Room Main
[10.2016 -] ZYX10..RHD..N UNITED KINGDOM SPEC&ECO PACKAGE |
82111-F4E80 |
— | ||
|
82111
|
82111
82111-F4F00
Wire, Engine Room Main
[10.2016 -] ZYX10..RHD..N UNITED KINGDOM SPEC&LIGHT GRADE&ECO PACKAGE&AUDIO-RADIO LESS & 2SPEAKER; ZYX10..RHD..N ECO PACKAGE |
82111-F4F00 |
— | ||
|
82111
|
82111
82111-F4F20
Wire, Engine Room Main
[10.2016 -] ZYX10..RHD..N UNITED KINGDOM SPEC&ECO PACKAGE&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
82111-F4F20 |
— | ||
|
82111
|
82111
82111-F4F40
Wire, Engine Room Main
[10.2016 -] ZYX10..RHD..N ECO PACKAGE&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
82111-F4F40 |
— | ||
|
82119C
|
82119C
82119-F4010 Wire, Engine Room, No.5[10.2016 -] NGX10,50,ZYX10..E..EUR; NGX10,50,ZYX10..LHD..E..EUR EUROPE SPEC(EXCEPT EU); NGX10,50..LHD..E..EUR NEW CALEDONIA SPEC; NGX10,50,ZYX10..LHD..E..EUR REUNION SPEC; NGX10,50,ZYX10..LHD..E..EUR FRENCH GUIANA SPEC; NGX10,50,ZYX10..LHD..E..EUR GUADELO |
82119-F4010 |
US $50.52 |
||
|
82815A
|
82815A
82815-47880 Cover, Wiring Harness Protector[10.2016 -] ZYX10 |
82815-47880 |
US $5.39 |
||
|
82815B
|
82815B
82815-47C20 Cover, Wiring Harness Protector[10.2016 -] ZYX10 |
82815-47C20 |
US $6.70 |
||
|
82815G
|
82815G
82815-47C90 Cover, Wiring Harness Protector No.5[10.2016 -] ZYX10..RHD |
82815-47C90 |
US $13.10 |
||
|
82815H
|
82815H
82815-47D00 Cover, Wiring Harness Protector No.6[10.2016 -] ZYX10..RHD |
82815-47D00 |
US $8.74 |
||
|
82815J
|
82815J
82815-47D30 Cover, Wiring Harness Protector, No.7[10.2016 -] ZYX10..RHD |
82815-47D30 |
US $14.41 |
||
|
82815K
|
82815K
82815-47D40 Cover, Wiring Harness Protector, No.8[10.2016 -] ZYX10..RHD |
82815-47D40 |
US $7.43 |
||
|
82817
|
82817
82817-47N30 Protector, Wiring Harness, No.1[10.2016 -] ZYX10 |
82817-47N30 |
US $6.99 |
||
|
82817A
|
82817A
82817-47N40 Protector, Wiring Harness, No.2[10.2016 -] ZYX10 |
82817-47N40 |
US $11.94 |
||
|
82817B
|
82817B
82817-47N60 Protector, Wiring Harness, No.3[10.2016 -] ZYX10..RHD |
82817-47N60 |
US $18.05 |
||
|
82817C
|
82817C
82817-47N70 Protector, Wiring Harness, No.4[10.2016 -] ZYX10..RHD |
82817-47N70 |
US $12.96 |
||
|
82817D
|
82817D
82817-47P00 Protector, Wiring Harness, No.5[10.2016 -] ZYX10..RHD |
82817-47P00 |
US $21.55 |
||
|
82817E
|
82817E
82817-47P10 Protector, Wiring Harness, No.6[10.2016 -] ZYX10..RHD |
82817-47P10 |
US $12.38 |
||
|
82817G
|
82817G
82817-F4530 Protector, Wiring Harness, No.8[10.2016 -] NGX10,50,ZYX10..RHD |
82817-F4530 |
US $4.37 |
||
|
90119W0017
|
90119W0017
90119-W0017
New Genuine Part
|
90119-W0017 |
— | ||
| replacement | |||||
|
90119W0017
|
90119W0017
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
90119W0127
|
90119W0127
90119-W0127 New Genuine Part |
90119-W0127 |
US $1.02 |
||
|
90178W0039
|
90178W0039
90178-W0039 New Genuine Part |
90178-W0039 |
US $0.73 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.86 |
||
