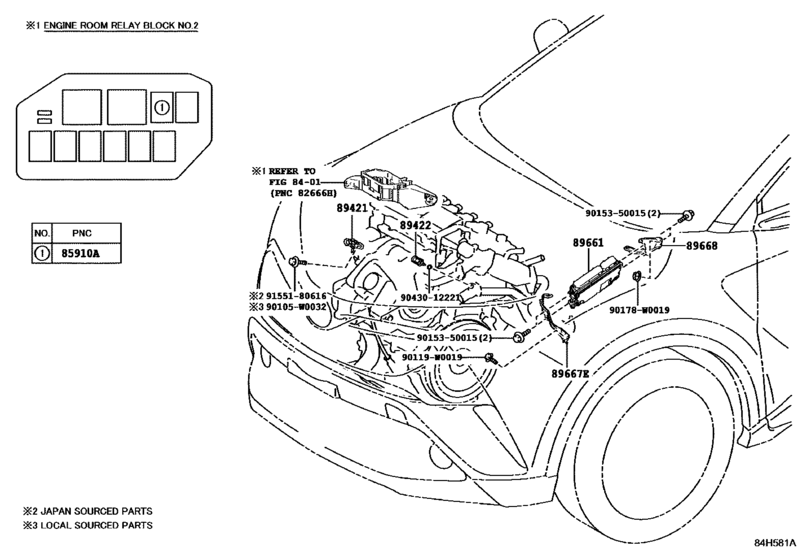

Electronic Fuel Injection System ([10.2016 - ] (1610- )ZYX10) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZYX10
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- EUR
- From
- 10.2016
- Model Mark
- N
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90080-87021
Relay, Lamp Cut
[10.2016 -] ZGX10,ZYX10 |
90080-87021 |
— | ||
|
89421
|
89421
89421-26030 Sensor Assy, Vacuum[10.2016 -] ZGX10,ZYX10 |
89421-26030 |
from US $96.76 |
||
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[10.2016 -] ZGX10,ZYX10 |
89422-33030 |
from US $40.49 |
||
|
89661
|
89661
89661-F4040
Computer, Engine Control
[10.2016 -] ZYX10..N ECO PACKAGE |
89661-F4040 |
— | ||
|
89661
|
89661
89661-F4050
Computer, Engine Control
[10.2016 -] ZYX10 |
89661-F4050 |
— | ||
|
89667E
|
89667E
89667-F4020
Bracket, Engine Control Computer, No.1
[10.2016 -] ZYX10 |
89667-F4020 |
— | ||
|
89668
|
89668
89668-F4020
Bracket, Engine Control Computer, No.2
[10.2016 -] ZYX10 |
89668-F4020 |
— | ||
|
90105W0032
|
90105W0032
90105-W0032
New Genuine Part
|
90105-W0032 |
— | ||
|
90119W0019
|
90119W0019
90119-W0019 BOLT WWASHER |
90119-W0019 |
US $1.98 |
||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
9015350015
|
9015350015
90153-50015 New Genuine Part |
90153-50015 |
US $1.08 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.07 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
