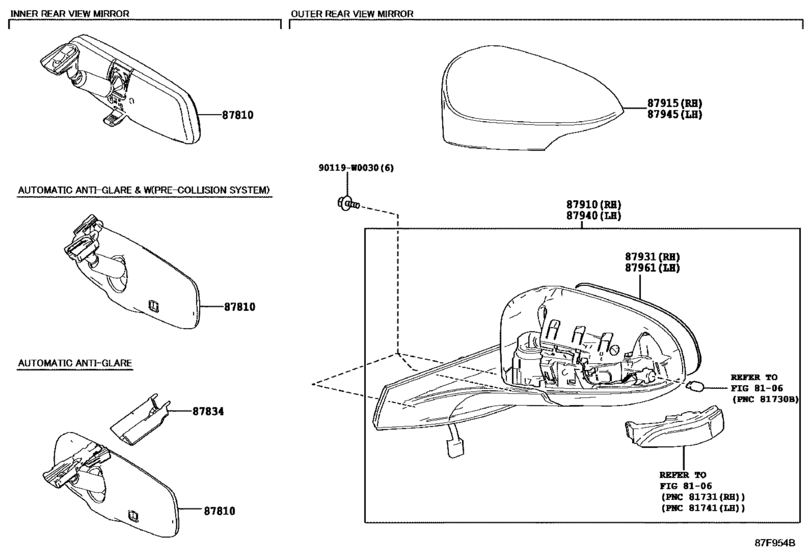

Mirror ([10.2016 - ] (1610- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZYX10
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- EUR
- From
- 10.2016
- Model Mark
- N
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-0WQ40 Mirror Assy, Inner Rear View[10.2016 -] NGX10..D; ZYX10..N;NGX10..6F..N..EUR LIGHT GRADE |
87810-0WQ40 |
from US $46.12 |
||
|
87810
|
87810
87810-0WQ50 Mirror Assy, Inner Rear View[10.2016 -] NGX10,50,ZYX10..(E,G,N)..EUR |
87810-0WQ50 |
US $361.92 |
||
|
87910
|
87910
87910-F4070
Mirror Assy, Outer Rear View, Rh
[10.2016 -] NGX10,50,ZYX10..RHD..(D,G,N) |
87910-F4070 |
— | ||
|
87910
|
87910
87910-F4080 Mirror Assy, Outer Rear View, Rh[10.2016 -] NGX10,50,ZYX10..RHD..E; NGX10,50,ZYX10..RHD..(G,N) WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR) |
87910-F4080 |
US $359.63 |
||
|
87910
|
87910
87910-F4090
Mirror Assy, Outer Rear View, Rh
[10.2016 -] NGX10,50,ZYX10..RHD..(G,N) WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR)&BLIND SPOT MONITOR-WITH; NGX10,50,ZYX10..RHD..E BLIND SPOT MONITOR-WITH |
87910-F4090 |
— | ||
|
87915
|
87915
87915-0F911 Cover, Outer Mirror, Rh[10.2016 -] NGX10,50,ZGX10,ZYX10 |
87915-0F911 |
US $15.48 |
||
|
87931
|
87931
87931-F4010
Outer Mirror, Rh
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
87931-F4010 |
— | ||
|
87931
|
87931
87931-F4030
Outer Mirror, Rh
[10.2016 -] NGX10,50,ZGX10..G..RUS RUSSIA SPEC&WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR)&BLIND SPOT MONIT OR-WITH; NGX10,50,ZGX10..E..RUS RUSSIA SPEC&BLIND SPOT MONITOR-WITH; NGX10,50,ZGX10..G..RUS UKRAINE SPEC&WIRELESS DOOR LOCK-SMART ENTRY(* |
87931-F4030 |
— | ||
|
87940
|
87940
87940-F4070
Mirror Assy, Outer Rear View, Lh
[10.2016 -] NGX10,50,ZYX10..RHD..(D,G,N) |
87940-F4070 |
— | ||
|
87940
|
87940
87940-F4080
Mirror Assy, Outer Rear View, Lh
[10.2016 -] NGX10,50,ZYX10..RHD..E; NGX10,50,ZYX10..RHD..(G,N) WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR) |
87940-F4080 |
— | ||
|
87940
|
87940
87940-F4090
Mirror Assy, Outer Rear View, Lh
[10.2016 -] NGX10,50,ZYX10..RHD..(G,N) WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR)&BLIND SPOT MONITOR-WITH; NGX10,50,ZYX10..RHD..E BLIND SPOT MONITOR-WITH |
87940-F4090 |
— | ||
|
87945
|
87945
87945-0F911 Cover, Outer Mirror, Lh[10.2016 -] NGX10,50,ZGX10,ZYX10 |
87945-0F911 |
US $14.16 |
||
|
87961
|
87961
87961-F4010
Mirror Outer, Lh
[10.2016 -] NGX10,50,ZGX10,ZYX10 |
87961-F4010 |
— | ||
|
87961
|
87961
87961-F4030
Mirror Outer, Lh
[10.2016 -] NGX10,50,ZGX10..G..RUS RUSSIA SPEC&WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR)&BLIND SPOT MONIT OR-WITH; NGX10,50,ZGX10..E..RUS RUSSIA SPEC&BLIND SPOT MONITOR-WITH; NGX10,50,ZGX10..G..RUS UKRAINE SPEC&WIRELESS DOOR LOCK-SMART ENTRY(* |
87961-F4030 |
— | ||
|
90119W0030
|
90119W0030
90119-W0030
New Genuine Part
|
90119-W0030 |
— |
