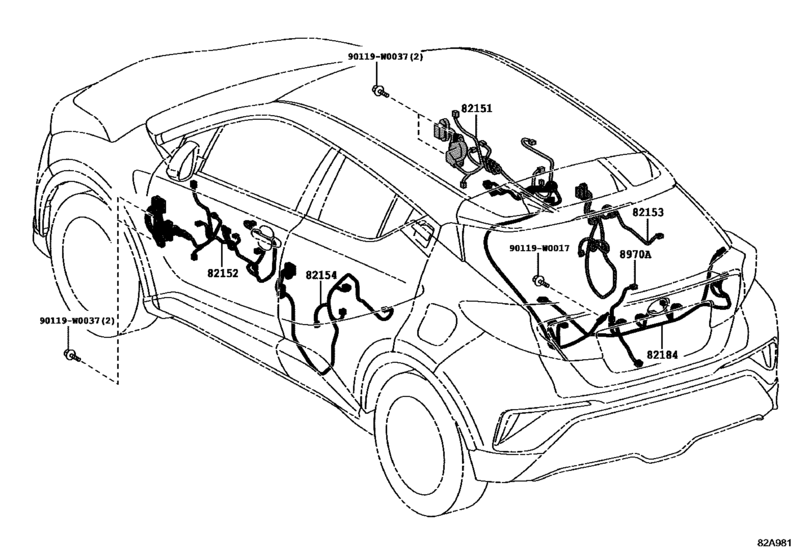

Wiring & Clamp ([10.2016 - ] DOOR (1610- )) Diagram Toyota C-HR
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZYX10
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- EUR
- From
- 10.2016
- Model Mark
- N
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8970A
|
8970A
8970A-10010
Cord Sub-Assy, Theft Warning Sensor
[10.2016 -] NGX10,50,ZYX10..RHD UNITED KINGDOM SPEC |
8970A-10010 |
— | ||
|
82151
|
82151
82151-F4130
Wire, Front Door, Rh
[10.2016 -] NGX10,50,ZYX10..RHD..(D,N) |
82151-F4130 |
— | ||
|
82151
|
82151
82151-F4160
Wire, Front Door, Rh
[10.2016 -] NGX10,50,ZYX10..RHD..N WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR) |
82151-F4160 |
— | ||
|
82152
|
82152
82152-F4130
Wire, Front Door, Lh
[10.2016 -] NGX10,50,ZYX10..RHD..(D,N) |
82152-F4130 |
— | ||
|
82152
|
82152
82152-F4160
Wire, Front Door, Lh
[10.2016 -] NGX10,50,ZYX10..RHD..N WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR) |
82152-F4160 |
— | ||
|
82153
|
82153
82153-F4030
Wire, Rear Door, No.1
[10.2016 -] NGX10..RHD..D; NGX10..LHD..D..EUR ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN); ZYX10..LHD..N;NGX10..LHD..6F..N..EUR ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&AUDIO-RADIO LESS & 2SPEAKER; ZYX10..RHD..N;NGX10..RHD..6F..N AUDIO-RADIO LESS & 2SPEA |
82153-F4030 |
— | ||
|
82153
|
82153
82153-F4040
Wire, Rear Door, No.1
[10.2016 -] NGX10,50,ZYX10..RHD..(E,G,N); NGX10..LHD..D..EUR NEW CALEDONIA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN); NGX10..LHD..D..EUR REUNION SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN); NGX10..LHD..D..EUR FRENCH GUIANA SPEC&ANTI-THEFT SYSTEM |
82153-F4040 |
— | ||
|
82154
|
82154
82154-F4030
Wire, Rear Door, No.2
[10.2016 -] NGX10..RHD..D; NGX10..LHD..D..EUR ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN); ZYX10..LHD..N;NGX10..LHD..6F..N..EUR ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&AUDIO-RADIO LESS & 2SPEAKER; ZYX10..RHD..N;NGX10..RHD..6F..N AUDIO-RADIO LESS & 2SPEA |
82154-F4030 |
— | ||
|
82154
|
82154
82154-F4040
Wire, Rear Door, No.2
[10.2016 -] NGX10,50,ZYX10..RHD..(E,G,N); NGX10..LHD..D..EUR NEW CALEDONIA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN); NGX10..LHD..D..EUR REUNION SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN); NGX10..LHD..D..EUR FRENCH GUIANA SPEC&ANTI-THEFT SYSTEM |
82154-F4040 |
— | ||
|
82184
|
82184
82184-F4030 Wire, Back Door, No.1[10.2016 -] NGX10..D; ZGX10..G,N MEXICO SPEC&WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR)&AUDIO-CD & 6SPEA KER & USB & *BT,FOR MEXICO; ZGX10 MEXICO SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,FOR MEXICO; NGX10,50,ZYX10..LHD..(G,N)..EUR WIRELESS DOOR LOC |
82184-F4030 |
US $157.25 |
||
|
82184
|
82184
82184-F4040 Wire, Back Door, No.1[10.2016 -] NGX10,50,ZGX10,ZYX10..E; NGX10,50,ZGX10,ZYX10..G,N WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR) |
82184-F4040 |
US $180.54 |
||
|
82184
|
82184
82184-F4050 Wire, Back Door, No.1[10.2016 -] ZGX10..G MEXICO SPEC&WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR)&HEADLAMP-LED&AUD IO-CD & 6SPEAKER & USB & *BT,FOR MEXICO; ZGX10..E,G MEXICO SPEC&HEADLAMP-LED&AUDIO-CD & 6SPEAKER & USB & *BT,FOR MEXICO; NGX10,50,ZYX10..N..EUR WIRELES |
82184-F4050 |
US $157.25 |
||
|
82184
|
82184
82184-F4060 Wire, Back Door, No.1[10.2016 -] NGX10,50,ZYX10..(G,N)..EUR WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR)&HEADLAMP-LED & WITH(AUTOMATI C HIGH BEAM); NGX10,50,ZGX10..G..RUS;NGX10,50,ZYX10..LHD..(G,N)..EUR WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR)&HEADLAMP-L |
82184-F4060 |
US $180.54 |
||
|
82184
|
82184
82184-F4150
Wire, Back Door, No.1
[10.2016 -] NGX10..RHD..D UNITED KINGDOM SPEC; NGX10,50,ZYX10..RHD..N UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR)&AUDIO-RA DIO LESS & 6SPEAKER; NGX10,50,ZYX10..RHD..N UNITED KINGDOM SPEC&AUDIO-RADIO LESS & 6SPEAKER |
82184-F4150 |
— | ||
|
82184
|
82184
82184-F4160
Wire, Back Door, No.1
[10.2016 -] NGX10,50,ZYX10..RHD..(E,G,N) UNITED KINGDOM SPEC; NGX10,50,ZYX10..RHD..(G,N) UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR) |
82184-F4160 |
— | ||
|
82184
|
82184
82184-F4180
Wire, Back Door, No.1
[10.2016 -] NGX10,50,ZYX10..RHD..(G,N) UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR)&HEADLAMP -LED & WITH(AUTOMATIC HIGH BEAM); NGX10,50,ZYX10..RHD..(E,G,N) UNITED KINGDOM SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
82184-F4180 |
— | ||
|
82184
|
82184
82184-F4230
Wire, Back Door, No.1
[10.2016 -] NGX10,50,ZGX10,ZYX10..G,N |
82184-F4230 |
— | ||
|
82184
|
82184
82184-F4280
Wire, Back Door, No.1
[10.2016 -] NGX10,50,ZYX10..RHD..N UNITED KINGDOM SPEC&WIRELESS DOOR LOCK-SMART ENTRY(*DRP DOOR & BACK DOOR)&HEADLAMP -LED & WITH(AUTOMATIC HIGH BEAM)&AUDIO-RADIO LESS & 6SPEAKER; NGX10,50,ZYX10..RHD..N UNITED KINGDOM SPEC&HEADLAMP-LED & WITH(AUTOMATIC HI |
82184-F4280 |
— | ||
|
90119W0017
|
90119W0017
90119-W0017
New Genuine Part
|
90119-W0017 |
— | ||
| replacement | |||||
|
90119W0017
|
90119W0017
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
90119W0037
|
90119W0037
90119-W0037
Bolt, W/washer
|
90119-W0037 |
— | ||
