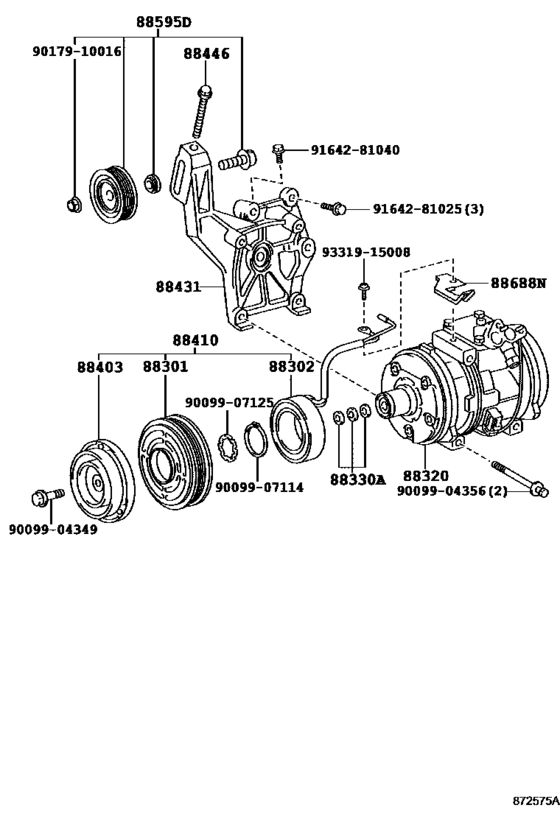

Heating & Air Conditioning - Compressor ([01.1996 - ] (9601- )AT191) Diagram Toyota CALDINA
- Year
- 1996 - 1997
- Sales region
- Japan
- Frame
- AT191
- grade
- FZ
- body
- WG
- ENGINE
- 7AFE
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 08.1997
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-1A060
Rotor Sub-Assy, Magnet Clutch
[01.1996 - 08.1997] AT191 |
88412-1A060 |
— | ||
|
88302
|
88302
88411-22310
Stator Sub-Assy, Magnet Clutch
[01.1996 - 08.1997] AT191,CT19#,ET196,ST19# |
88411-22310 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-2A030 Stator Sub-Assy, Magnet Clutch[01.1996 - 08.1997] AT191,CT19#,ET196,ST19# |
88411-2A030 |
US $79.67 |
||
|
88320
|
88320
88320-2B340
Compressor Assy, Cooler
[01.1996 - 08.1997] AT191 |
88320-2B340 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-35H92 Compressor Assy, Cooler[01.1996 - 08.1997] AT191 |
88320-35H92 |
US $1,359.32 |
||
|
88330A
|
88330A
88335-14020 Washer[07.1993 -] CT197..UX;AT191,CT190,196,198,ET196,ST19# |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-30290 Hub Sub-Assy, Magnet Clutch[07.1993 - 06.2002] AT191,CT19#,ET196,ST19# |
88403-30290 |
US $86.66 |
||
|
88410
|
88410
88410-2B170 Clutch Assy, Magnet[01.1996 - 08.1997] AT191 |
88410-2B170 |
US $551.82 |
||
|
88431
|
88431
88431-20390
Bracket, Compressor Mounting, No.1
[01.1996 - 08.1997] AT191 |
88431-20390 |
— | ||
|
88446
|
88446
88446-12030
Bolt, Idle Pulley
[09.1996 - 08.1997] AT191 |
88446-12030 |
— | ||
|
88446
|
88446
88446-36010
Bolt, Idle Pulley
[01.1996 - 09.1996] AT191 |
88446-36010 |
— | ||
|
88595D
|
88595D
88440-20160 Pulley Assy, Idle[01.1996 - 08.1997] AT191 |
88440-20160 |
US $85.90 |
||
|
88688N
|
88688N
88688-2D760
Bracket, Cooler
[01.1996 - 08.1997] AT191 |
88688-2D760 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904356
|
9009904356
90099-04356 BOLT |
90099-04356 |
US $2.77 |
||
| replacement | |||||
|
9009904356
|
9009904356
90099043561
Bolt
|
90099043561 |
— | ||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.19 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.15 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.99 |
||
|
9164281025
|
9164281025
91642-81025 BOLT WWASHER |
91642-81025 |
from US $1.01 |
||
|
9164281040
|
9164281040
91642-81040 New Genuine Part |
91642-81040 |
US $3.84 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
