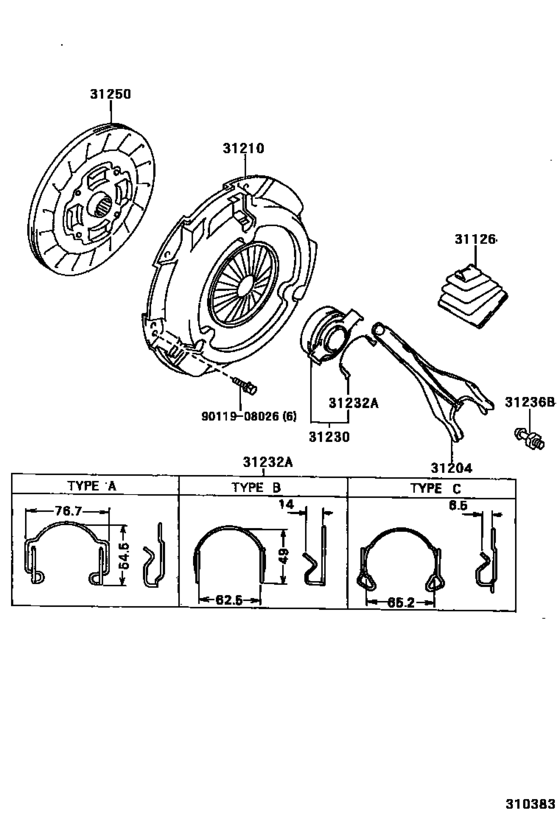

Clutch & Release Fork ([08.1997 - ] (9708- )AT211..5F) Diagram Toyota CALDINA
- Year
- 1997 - 2002
- Sales region
- Japan
- Frame
- AT211
- grade
- E
- body
- WG
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- From
- 08.1997
- To
- 09.2002
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[08.1997 - 09.2002] AT211..5F |
31126-12051 |
from US $10.08 |
||
|
31204
|
31204
31204-17010 Fork Sub-Assy, Clutch Release[08.1997 - 09.2002] AT211..5F |
31204-17010 |
US $44.23 |
||
|
31210
|
31210
31210-12201 Cover Assy, Clutch[08.1997 -] AT211..5F |
31210-12201 |
US $155.79 |
||
| replacement | |||||
|
31210
|
31210
31210-52053 Cover Assy, Clutch[08.1997 -] AT211..5F |
31210-52053 |
from US $137.10 |
||
|
31230
|
31230
31230-12170
Bearing Assy, Clutch Release
[08.1997 - 01.2001] AT211..5F |
31230-12170 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-12191 Bearing Assy, Clutch Release[08.1997 - 01.2001] AT211..5F |
31230-12191 |
from US $37.65 |
||
|
31230
|
31230
31230-12171 Bearing Assy, Clutch Release[01.2001 - 01.2002] AT211..5F |
31230-12171 |
US $65.08 |
||
| replacement | |||||
|
31230
|
31230
31230-12191 Bearing Assy, Clutch Release[01.2001 - 01.2002] AT211..5F |
31230-12191 |
from US $37.65 |
||
|
31230
|
31230
31230-12191 Bearing Assy, Clutch Release[01.2002 - 09.2002] AT211..5F |
31230-12191 |
from US $37.65 |
||
|
31232A
|
31232A
31232-12050
Clip, Release Bearing Hub
[08.1997 - 12.1999] AT211..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
31232-12050 |
— | ||
|
31232A
|
31232A
31232-12060
Clip, Release Bearing Hub
[08.1997 - 12.1999] AT211..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
31232-12060 |
— | ||
|
31232A
|
31232A
31232-12070 Clip, Release Bearing Hub[08.1997 - 09.2002] AT211..5F TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
31232-12070 |
US $3.20 |
||
|
31236B
|
31236B
31236-12020 Support, Release Fork[08.1997 - 09.2002] AT211..5F |
31236-12020 |
US $8.16 |
||
|
31250
|
31250
31250-20280 Disc Assy, Clutch[08.1997 -] AT211..5F |
31250-20280 |
US $116.48 |
||
| replacement | |||||
|
31250
|
31250
31250-12570 Disc Assy, Clutch[08.1997 -] AT211..5F |
31250-12570 |
from US $146.88 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.82 |
||
