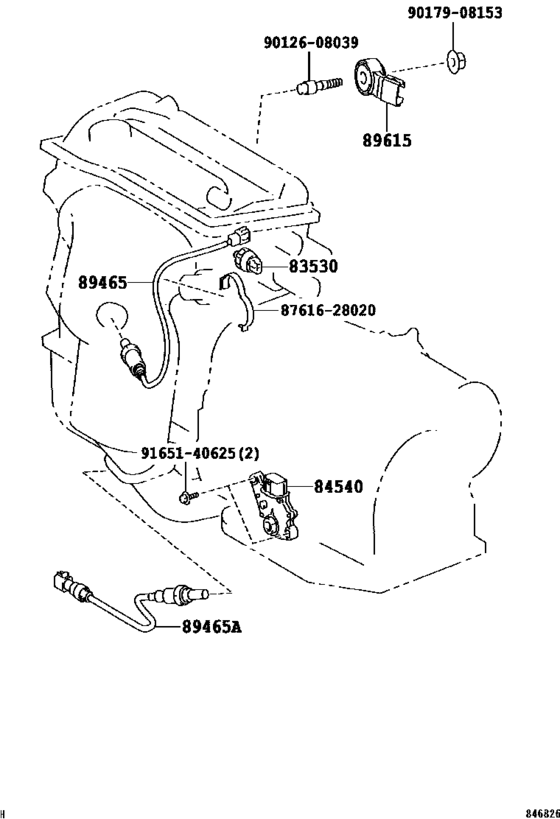

Switch & Relay & Computer ([01.2005 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0501- )AZT24#) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- AZT246
- grade
- ZT
- body
- WG
- ENGINE
- 1AZFSE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[09.2002 - 01.2005] AZT24#,ST246 ＤＥＮＳＯ |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [09.2002 - 01.2005] AZT24#,ST246 ＤＥＮＳＯ |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[09.2002 - 01.2005] AZT24#,ST246 ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [09.2002 - 01.2005] AZT24#,ST246,ZZT241 ＹＡＺＡＫＩ |
83530-60020 |
from US $25.55 |
||
|
84540
|
84540
84540-12230 Switch Assy, Neutral Start[09.2002 - 01.2005] AZT24# |
84540-12230 |
US $336.34 |
||
| replacement | |||||
|
84540
|
84540
84540-32110 Switch Assy, Neutral Start[09.2002 - 01.2005] AZT24# |
84540-32110 |
from US $159 |
||
|
84540
|
84540
84540-48010 Switch Assy, Neutral Start[01.2005 - 06.2007] AZT24#,ST246 |
84540-48010 |
from US $142.92 |
||
|
89465
|
89465
89465-63030
Sensor, Oxygen
[09.2002 - 01.2005] AZT24# |
89465-63030 |
— | ||
|
89465
|
89465
89465-68010 Sensor, Oxygen[01.2005 -] AZT24# |
89465-68010 |
US $164.16 |
||
|
89465A
|
89465A
89465-68020 Sensor, Oxygen No.2[01.2005 -] AZT24# |
89465-68020 |
US $164.16 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[01.2005 -] AZT24#,ST246,ZZT241 |
89615-20090 |
from US $36.02 |
||
|
89615
|
89615
89615-44010 Sensor, Knock Control[09.2002 - 01.2005] AZT24# |
89615-44010 |
US $227.14 |
||
|
8761628020
|
8761628020
87616-28020 Clamp, Cooling Unit Case |
87616-28020 |
US $4.08 |
||
|
9012608039
|
9012608039
90126-08039 Bolt, Stud(For Oil Pan) |
90126-08039 |
US $3.84 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
