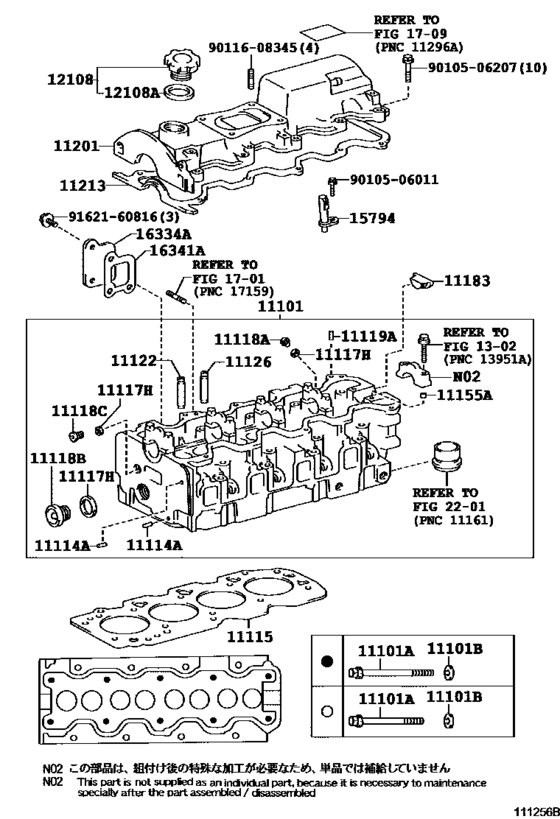

Cylinder Head ([01.1996 - 05.1997] (9601-9705)2C#) Diagram Toyota CALDINA
- Year
- 1996 - 1997
- Sales region
- Japan
- Frame
- CT190
- grade
- CZ
- body
- WG
- ENGINE
- 2CT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 08.1997
- Gear Shift Type
- 4FC
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-64250 Head Sub-Assy, Cylinder[01.1996 - 02.1997] 2CT..CT190 |
11101-64250 |
US $1,587.04 |
||
| replacements | |||||
|
11101
|
11101
11101-64253 Head Sub-Assy, Cylinder[01.1996 - 02.1997] 2CT..CT190 |
11101-64253 |
from US $1,587.04 |
||
|
11101
|
11101
90201-22010 Washer, Plate(For Valve Spring Seat)[01.1996 - 02.1997] 2CT..CT190 |
90201-22010 |
from US $1.31 |
||
|
11101
|
11101
11176-64020 Seat, Injection Nozzle[01.1996 - 02.1997] 2CT..CT190 |
11176-64020 |
US $4.02 |
||
|
11101
|
11101
11101-64251 Head Sub-Assy, Cylinder[02.1997 - 05.1997] 2CT..CT190 |
11101-64251 |
US $1,587.04 |
||
| replacements | |||||
|
11101
|
11101
11101-64253 Head Sub-Assy, Cylinder[02.1997 - 05.1997] 2CT..CT190 |
11101-64253 |
from US $1,587.04 |
||
|
11101
|
11101
90201-22010 Washer, Plate(For Valve Spring Seat)[02.1997 - 05.1997] 2CT..CT190 |
90201-22010 |
from US $1.31 |
||
|
11101
|
11101
11176-64020 Seat, Injection Nozzle[02.1997 - 05.1997] 2CT..CT190 |
11176-64020 |
US $4.02 |
||
|
11101
|
11101
11101-64252 Head Sub-Assy, Cylinder[05.1997 - 08.1997] 2CT..CT190 |
11101-64252 |
US $1,587.04 |
||
| replacements | |||||
|
11101
|
11101
11101-64253 Head Sub-Assy, Cylinder[05.1997 - 08.1997] 2CT..CT190 |
11101-64253 |
from US $1,587.04 |
||
|
11101
|
11101
11176-64020 Seat, Injection Nozzle[05.1997 - 08.1997] 2CT..CT190 |
11176-64020 |
US $4.02 |
||
|
11101A
|
11101A
90910-02097 Bolt(For Cylinder Head Set)[11.1992 - 05.1998] 2C#..CT19# ＊１１−１．２５ＰＸ１２３−５３ |
90910-02097 |
from US $3.65 |
||
|
11101A
|
11101A
90910-02099 Bolt(For Cylinder Head Set)[11.1992 - 05.1998] 2C#..CT19# ＊１１−１．２５ＰＸ１４５−５３ |
90910-02099 |
from US $4.54 |
||
|
11101B
|
11101B
90201-12222 Washer, Plate(For Cylinder Head Set)[11.1992 -] 2C#,3CE..CT19# |
90201-12222 |
from US $1.29 |
||
|
11114A
|
11114A
90250-06068 Pin, Straight[11.1992 -] 2C#,3CE..CT19# 長さ＝１１，外径＝６ |
90250-06068 |
from US $1.05 |
||
|
11115
|
11115
11115-64140 Gasket, Cylinder Head[01.1996 - 08.1997] 2C#..CT19# |
11115-64140 |
US $94.64 |
||
| replacement | |||||
|
11115
|
11115
11115-64141-02 Gasket, Cylinder HeadCYLINDER HEAD [01.1996 - 08.1997] 2C#..CT19# |
11115-64141-02 |
from US $55.85 |
||
|
11117H
|
11117H
90430-10204 Gasket(For Water Hole)[11.1992 - 05.1997] 2C#..CT19# 品名コード １１１１８Ａ |
90430-10204 |
from US $3.68 |
||
|
11117H
|
11117H
90430-12010 Gasket(For Water Hole)[11.1992 - 05.1997] 2C#..CT19# 品名コード １１１１８Ｃ |
90430-12010 |
US $3.20 |
||
|
11117H
|
11117H
90430-33133 Gasket(For Cylinder Head Screw Plug)[11.1992 - 05.1997] 2C#..CT19# 品名コード １１１１８Ｂ |
90430-33133 |
US $3.20 |
||
|
11118A
|
11118A
90341-10005 Plug, Straight, No.1[11.1992 - 05.1997] 2C#..CT19# |
90341-10005 |
US $2.62 |
||
|
11118B
|
11118B
90341-32070 Plug, W/head Taper Screw, No.1[11.1992 - 05.1997] 2C#..CT19# |
90341-32070 |
US $10.66 |
||
|
11118C
|
11118C
90341-12013 Plug, Straight, No.2[11.1992 - 05.1997] 2C#..CT19# |
90341-12013 |
US $3.06 |
||
|
11119A
|
11119A
90250-06013 Pin, Straight, No.1[11.1992 -] 2C#,3CE..CT19# 長さ＝１６，外径＝６ |
90250-06013 |
US $0.61 |
||
|
11122
|
11122
11122-64010 Bush, Intake Valve Guide[11.1992 -] 2C#,3CE..CT19# ＳＴＤ |
11122-64010 |
from US $7.86 |
||
|
11122
|
11122
11123-64010 Bush, Intake Valve Guide[11.1992 -] 2C#,3CE..CT19# Ｏ／Ｓ ０．０５ |
11123-64010 |
US $8.30 |
||
|
11126
|
11126
11126-64010 Bush, Exhaust Valve Guide[11.1992 - 08.1997] 2C#..CT19# ＳＴＤ |
11126-64010 |
US $11.50 |
||
| replacement | |||||
|
11126
|
11126
11126-64030 Bush, Exhaust Valve Guide[11.1992 - 08.1997] 2C#..CT19# ＳＴＤ |
11126-64030 |
from US $7.13 |
||
|
11126
|
11126
11127-64010 Bush, Exhaust Valve Guide[11.1992 - 08.1997] 2C#..CT19# Ｏ／Ｓ ０．０５ |
11127-64010 |
US $11.50 |
||
| replacement | |||||
|
11126
|
11126
11127-64030 Bush, Exhaust Valve Guide[11.1992 - 08.1997] 2C#..CT19# Ｏ／Ｓ ０．０５ |
11127-64030 |
US $7.13 |
||
|
11155A
|
11155A
90253-11021 Pin, Ring[11.1992 -] 2C#,3CE..CT19# |
90253-11021 |
from US $1.50 |
||
|
11183
|
11183
11183-64010 Plug, Semicircular[11.1992 -] 2C#,3CE..CT19# |
11183-64010 |
from US $8.35 |
||
|
11201
|
11201
11201-64140 Cover Sub-Assy, Cylinder Head[01.1996 - 09.1996] 2C#..CT19# |
11201-64140 |
US $289.74 |
||
| replacement | |||||
|
11201
|
11201
11201-64141 Cover Sub-Assy, Cylinder Head[01.1996 - 09.1996] 2C#..CT19# |
11201-64141 |
US $200.93 |
||
|
11201
|
11201
11201-64141 Cover Sub-Assy, Cylinder Head[09.1996 -] 2C#,3CE..CT19# |
11201-64141 |
US $200.93 |
||
|
11213
|
11213
11213-64060
Gasket, Cylinder Head Cover
[11.1992 - 05.1996] 2C#..CT19# |
11213-64060 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-64061 Gasket, Cylinder Head Cover[11.1992 - 05.1996] 2C#..CT19# |
11213-64061 |
from US $16.48 |
||
|
11213
|
11213
11213-64061 Gasket, Cylinder Head Cover[05.1996 -] 2C#,3CE..CT19# |
11213-64061 |
from US $16.48 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[12.1993 -] 2C#,3CE..CT19#; 5EFE..ET196; 3S#,4SFE..ST19# |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[11.1992 -] 2C#,3CE..CT19#; 5EFE..ET196; 3S#,4SFE..ST19# |
90430-37140 |
from US $1.25 |
||
|
15794
|
15794
15794-64011 Nozzle, Cylinder Head Oil[11.1992 -] 2C#,3CE..CT19# |
15794-64011 |
from US $5.64 |
||
|
16334A
|
16334A
16334-64010 Cover, Water Outlet Housing[01.1996 -] 2C#,3CE..CT19# |
16334-64010 |
US $13.25 |
||
|
16341A
|
16341A
16341-64030 Gasket, Water Outlet[01.1996 - 09.1997] 2C#..CT19# |
16341-64030 |
US $4.08 |
||
| replacement | |||||
|
16341A
|
16341A
16341-64021 Gasket, Water Outlet[01.1996 - 09.1997] 2C#..CT19# |
16341-64021 |
from US $3.84 |
||
|
9010506011
|
9010506011
90105-06011 BOLT |
90105-06011 |
US $0.96 |
||
|
9010506207
|
9010506207
90105-06207 New Genuine Part |
90105-06207 |
US $1.75 |
||
|
9011608345
|
9011608345
90116-08345 New Genuine Part |
90116-08345 |
US $2.72 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
