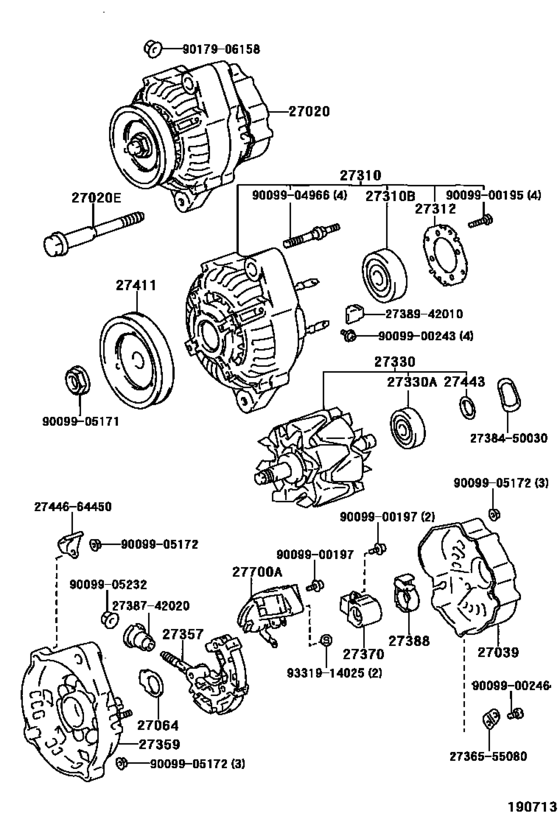

Alternator ([11.1992 - 01.1996] 12V 80A (9211-9601)2C ; (9601-9805)2C#..5F) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- CT190
- grade
- FZ
- body
- WG
- ENGINE
- 2C
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-64150 Alternator Assy[11.1992 - 01.1996] 2C..CT190,196..4FC １２Ｖ ８０Ａ |
27060-64150 |
US $1,645.28 |
||
|
27020E
|
27020E
90901-05004 Bolt(For Alternator)[11.1992 -] 2C#,3CE..CT19# |
90901-05004 |
US $8.15 |
||
|
27039
|
27039
27039-55080
Cover, Alternator Rear End
[11.1992 - 01.1996] 2C,3SFE..CT19#,ST191;5EFE,3SFE,4SFE..ET196,ST190,195..ATM |
27039-55080 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-70470
Cover, Alternator Rear End
[11.1992 - 01.1996] 2C,3SFE..CT19#,ST191;5EFE,3SFE,4SFE..ET196,ST190,195..ATM |
27039-70470 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[11.1992 - 01.1996] 2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM |
27064-42010 |
from US $2.10 |
||
|
27310
|
27310
27310-64470
Frame Assy, Drive End, Alternator
[11.1992 -] 3CE..CT197,199;2C#..CT190,196..4FC |
27310-64470 |
— | ||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[11.1992 - 01.1996] 2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM |
90099-10192 |
from US $15.03 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[11.1992 - 01.1996] 2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM |
27312-42010 |
— | ||
|
27330
|
27330
27330-72280
Rotor Assy, Alternator
[11.1992 -] 3CE..CT197,199;2C#..CT190,196..4FC |
27330-72280 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-74550 Rotor Assy, Alternator[11.1992 -] 3CE..CT197,199;2C#..CT190,196..4FC |
27330-74550 |
US $176.47 |
||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[11.1992 -] 5EFE..ET196..3FC;7AFE,2C#,3CE,3S#,4SFE..AT191,CT19#,ST19# |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-55080 Holder, Alternator, W/rectifier[11.1992 - 01.1996] 2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM |
27357-55080 |
from US $82.47 |
||
|
27359
|
27359
27359-64450
Frame, Alternator Rectifier End
[11.1992 -] 2C#,3CE..CT19# |
27359-64450 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[11.1992 - 01.1996] 2C,3SFE..CT19#,ST191;5EFE,3S#,4SFE..ET196,ST190,195..ATM |
27370-75060 |
from US $16.50 |
||
|
27411
|
27411
27411-64320
Pulley, Alternator
[11.1992 - 01.1996] 2C..CT19# |
27411-64320 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[11.1992 -] 7AFE,2C#,3CE,5EFE,3S#,4SFE..AT191,CT19#,ET196,ST19# |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-65010 Regulator Assy, Generator[12.1992 - 01.1993] 2C..CT19# |
27700-65010 |
US $260.62 |
||
| replacement | |||||
|
27700A
|
27700A
27700-35040 Regulator Assy, Generator[12.1992 - 01.1993] 2C..CT19# |
27700-35040 |
US $363.42 |
||
|
27700A
|
27700A
27700-74030 Regulator Assy, Generator[11.1992 - 12.1992] 2C..CT19# |
27700-74030 |
US $258.59 |
||
|
2736555080
|
2736555080
27365-55080
Plate, Terminal
|
27365-55080 |
— | ||
|
2738450030
|
2738450030
27384-50030 Holder, Alternator Brush, A |
27384-50030 |
from US $2.80 |
||
|
2738742020
|
2738742020
27387-42020
Insulator, Terminal
|
27387-42020 |
— | ||
|
2738942010
|
2738942010
27389-42010
Insulator, Terminal
|
27389-42010 |
— | ||
|
2744664450
|
2744664450
27446-64450
Clip, Alternator Cord
|
27446-64450 |
— | ||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905232
|
9009905232
90099-05232
New Genuine Part
|
90099-05232 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
