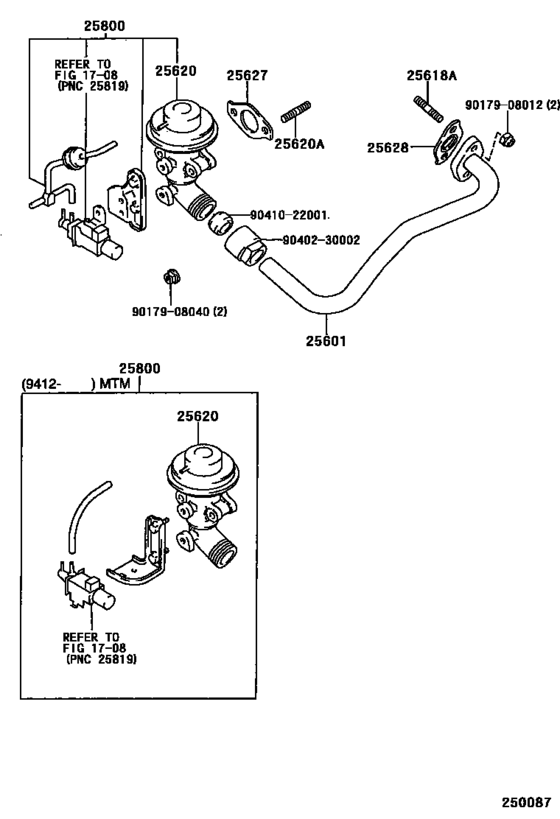

Exhaust Gas Recirculation System ([11.1992 - 01.1996] (9211-9601)2C..CT190,196 ; (9805- )3CE) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- CT190
- grade
- FZ
- body
- WG
- ENGINE
- 2C
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-64030 Pipe Sub-Assy, Egr, No.1[11.1992 - 02.1994] 2C..CT190 |
25601-64030 |
US $84.45 |
||
| replacement | |||||
|
25601
|
25601
25601-64031 Pipe Sub-Assy, Egr, No.1[11.1992 - 02.1994] 2C..CT190 |
25601-64031 |
US $84.45 |
||
|
25618A
|
25618A
92122-60822 Stud[11.1992 - 02.1994] 2C..CT190 |
92122-60822 |
US $1.31 |
||
|
25620
|
25620
25620-64080 Valve Assy, Egr[11.1992 - 02.1994] 2C..CT190 |
25620-64080 |
US $263.54 |
||
|
25620A
|
25620A
90116-08198 Bolt, Stud(For Egr Valve)[11.1992 - 02.1994] 2C..CT190 |
90116-08198 |
US $3.20 |
||
|
25627
|
25627
25627-64030
Gasket, Egr Valve
[11.1992 - 02.1994] 2C..CT190 |
25627-64030 |
— | ||
|
25628
|
25628
25628-64030 Gasket, Egr Inlet[11.1992 - 02.1994] 2C..CT190 |
25628-64030 |
from US $11.74 |
||
|
25800
|
25800
25800-64060 Valve Assy, Electric Egr Control[11.1992 - 02.1994] 2C..CT190 |
25800-64060 |
US $368.37 |
||
|
9017908012
|
9017908012
90179-08012 NUT |
90179-08012 |
US $3.68 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9040230002
|
9040230002
90402-30002 Nut, Union, Egr Pipe, No.1 |
90402-30002 |
US $11.07 |
||
|
9041022001
|
9041022001
90410-22001 Sleeve, Ball, Egr Pipe, No.1 |
90410-22001 |
US $2.62 |
||
