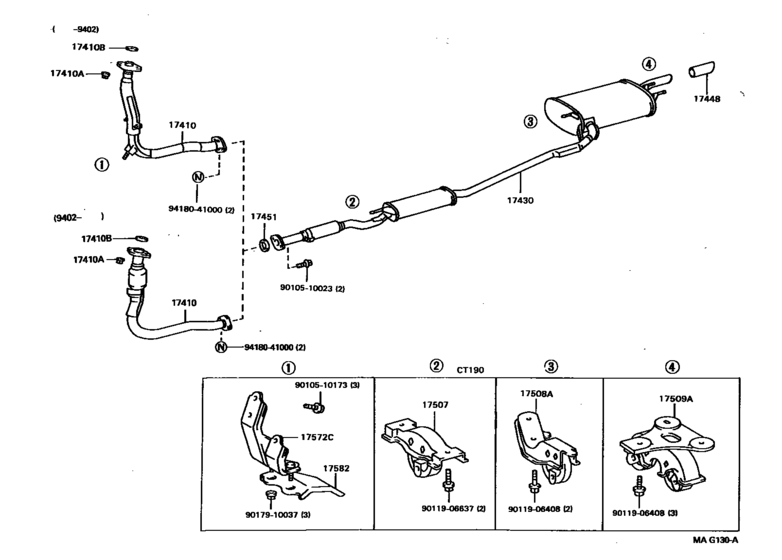

Exhaust Pipe ([11.1992 - 01.1996] (9211-9601)2C..CT190) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- CT190
- grade
- FZ
- body
- WG
- ENGINE
- 2C
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-64571 Pipe Assy, Exhaust, Front[11.1992 - 02.1994] 2C..CT190 |
17410-64571 |
US $228.59 |
||
|
17410
|
17410
17410-64620 Pipe Assy, Exhaust, Front[02.1994 - 01.1996] 2C..CT190,196 |
17410-64620 |
US $163.07 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[11.1992 - 01.1996] 2C,5EFE..CT19#,ET196 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[11.1992 - 01.1996] 2C,5EFE..CT19#,ET196 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06061 Gasket, Exhaust Pipe[11.1992 - 01.1996] 2C,5EFE..CT19#,ET196 |
90917-06061 |
from US $5.17 |
||
|
17430
|
17430
17430-64750 Pipe Assy, Exhaust, Tail[11.1992 - 02.1994] 2C..CT190 |
17430-64750 |
US $506.69 |
||
|
17430
|
17430
17430-6A020 Pipe Assy, Exhaust, Tail[02.1994 - 01.1996] 2C..CT190 |
17430-6A020 |
US $506.69 |
||
|
17448
|
17448
17448-43020
Baffle, Tail Pipe
[11.1992 - 02.1995] 2C,3SFE,4SFE..CT190,ST19# |
17448-43020 |
— | ||
|
17451
|
17451
90917-06048 Gasket, Exhaust Pipe[11.1992 -] 2C#,3CE..CT190,196,198,199 |
90917-06048 |
from US $4.70 |
||
|
17507
|
17507
17507-64040 Bracket Sub-Assy, Exhaust Pipe No.2 Support[11.1992 - 01.1996] 2C..CT190 |
17507-64040 |
US $26.35 |
||
|
17508A
|
17508A
17508-74030
Bracket Sub-Assy, Exhaust Pipe No.3 Support
[11.1992 - 01.1996] 2C,3SFE,4SFE..CT190,ST190,191 |
17508-74030 |
— | ||
|
17509A
|
17509A
17509-74110
Bracket Sub-Assy, Exhaust Pipe No.4 Support
[11.1992 - 01.1996] 2C,3S#,4SFE..CT190,ST19# |
17509-74110 |
— | ||
|
17572C
|
17572C
17571-64230
Bracket, Exhaust Pipe Front (For Front)
[11.1992 - 02.1994] 2C..CT190,196 |
17571-64230 |
— | ||
|
17582
|
17582
17582-64040
Bracket, Catalytic Converter Support, Upper
[11.1992 - 02.1994] 2C..CT190,196 |
17582-64040 |
— | ||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9010510173
|
9010510173
90105-10173
New Genuine Part
|
90105-10173 |
— | ||
|
9011906408
|
9011906408
90119-06408 New Genuine Part |
90119-06408 |
US $1.92 |
||
|
9011906637
|
9011906637
90119-06637 Bolt(For Cylinder Head Cover) |
90119-06637 |
US $1.92 |
||
|
9017910037
|
9017910037
90179-10037 NUT |
90179-10037 |
from US $2.42 |
||
| replacement | |||||
|
9017910037
|
9017910037
90179-10128 NUT |
90179-10128 |
from US $1.54 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
