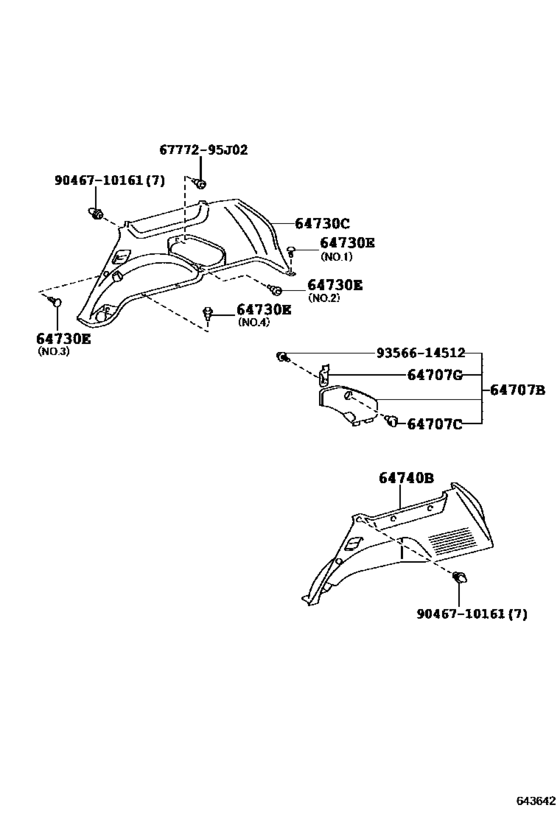

Deck Board & Deck Trim Cover ([11.1992 - ] (9211- )CT196,197,198,199,ET196,ST198) Diagram Toyota CALDINA
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- CT197
- grade
- U
- body
- VAN
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- From
- 05.1998
- To
- 06.2002
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64707B
|
64707B
64707-21020-B0 Cover Sub-Assy, Quarter Trim Jack[02.1994 -] CT196,197,198,199,ET196,ST198 SHADOW GRAY,TRIM1# |
64707-21020-B0 |
US $42.66 |
||
|
64707C
|
64707C
64982-16020-P0 Knob, Washer Tank Cover[02.1994 -] AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
64982-16020-P0 |
US $3.49 |
||
| replacement | |||||
|
64707C
|
64707C
64982-16020-B6 Knob, Washer Tank Cover[02.1994 -] AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
64982-16020-B6 |
US $3.32 |
||
|
64707G
|
64707G
64981-16021 Stopper, Jack Cover[11.1992 -] AT191,CT19#,ET196,ST19# |
64981-16021 |
US $3.49 |
||
|
64730C
|
64730C
64731-21010-B0 Board, Deck Trim Side, Rh[02.1994 -] CT196,197,198,199,ET196,ST198 SHADOW GRAY,TRIM1# |
64731-21010-B0 |
US $340.70 |
||
|
64730C
|
64730C
64731-21020-B0 Board, Deck Trim Side, Rh[02.1994 -] CT196,197,198,199,ET196,ST198 ｱﾘ(3 ﾎﾟｲﾝﾄ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄ ﾍﾞﾙﾄ),SHADOW GRAY,TRIM1# |
64731-21020-B0 |
US $340.70 |
||
|
64730E
|
64730E
90467-07107-B1 Clip(For Deck Trim Side Board)[02.1994 - 06.2002] CT196,197,198,199,ET196,ST198 SHADOW GRAY,TRIM1#,ＮＯ．３ |
90467-07107-B1 |
US $1.89 |
||
|
64730E
|
64730E
90467-07151 Clip(For Luggage Compartment Trim Inner Cover)[11.1992 - 06.2002] CT196,197,198,199,ET196,ST198 ＮＯ．１ |
90467-07151 |
US $1.89 |
||
|
64730E
|
64730E
90467-08154-B0 Clip(For Deck Trim Side Board)[08.1999 - 06.2002] CT19#,ET196,ST198 SHADOW GRAY,TRIM1#,ＮＯ．４ |
90467-08154-B0 |
US $2.33 |
||
|
64730E
|
64730E
90467-08182-B1 Clip(For Deck Trim Side Board)[02.1994 - 08.1999] CT196,197,198,199,ET196 SHADOW GRAY,TRIM1#,ＮＯ．４ |
90467-08182-B1 |
US $2.24 |
||
|
64730E
|
64730E
90467-08188 Clip, Radiator Support To Frame[01.1996 - 06.2002] AT191,CT19#,ET196,ST19# ＮＯ．２ |
90467-08188 |
US $1.28 |
||
|
64740B
|
64740B
64732-21010-B0 Board, Deck Trim Side, Lh[02.1994 -] CT196,197,198,199,ET196,ST198 SHADOW GRAY,TRIM1# |
64732-21010-B0 |
US $340.70 |
||
|
64740B
|
64740B
64732-21020-B0 Board, Deck Trim Side, Lh[02.1994 -] CT196,197,198,199,ET196,ST198 ｱﾘ(3 ﾎﾟｲﾝﾄ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄ ﾍﾞﾙﾄ),SHADOW GRAY,TRIM1# |
64732-21020-B0 |
US $340.70 |
||
|
6777295J02
|
6777295J02
67772-95J02 Cap, Front Door Trim Retainer |
67772-95J02 |
US $2.02 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
||
|
9356614512
|
9356614512
93566-14512
SCREW
|
93566-14512 |
— | ||
| replacement | |||||
|
9356614512
|
9356614512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
