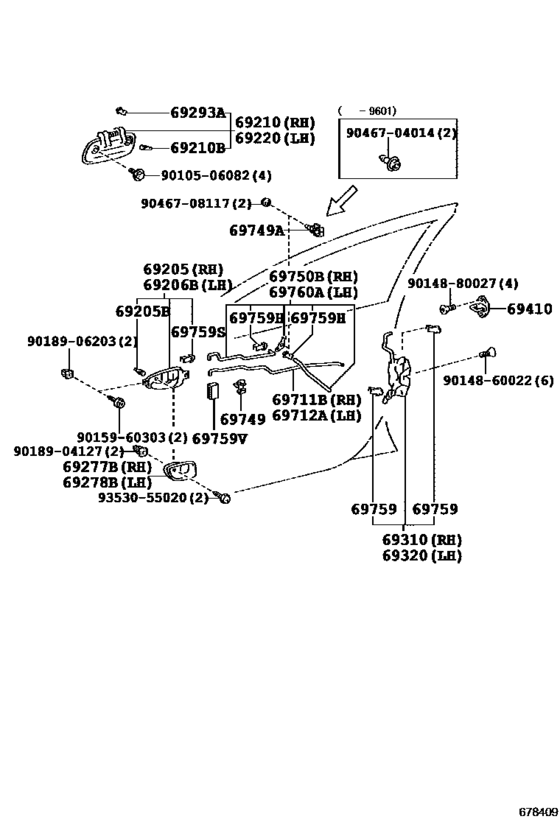

Front Door Lock & Handle ([11.1992 - ] (9211- )U,UL) Diagram Toyota CALDINA
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- CT197
- grade
- U
- body
- VAN
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- From
- 05.1998
- To
- 06.2002
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69205-20110-B0 Handle Sub-Assy, Front Door Inside, Rh[01.1996 -] CT196,197,198,199,ET196,ST198..U,UL SHADOW GRAY,TRIM1# |
69205-20110-B0 |
US $27.08 |
||
| replacement | |||||
|
69205
|
69205
69205-20110-C0 Handle Sub-Assy, Front Door Inside, Rh[01.1996 -] CT196,197,198,199,ET196,ST198..U,UL SHADOW GRAY,TRIM1# |
69205-20110-C0 |
US $26.79 |
||
|
69205B
|
69205B
90541-04014 Cushion, Console Box[11.1992 -] AT191,CT19#,ET196,ST19# |
90541-04014 |
from US $0.99 |
||
|
69206B
|
69206B
69206-20110-B0 Handle Sub-Assy, Front Door Inside, Lh[01.1996 -] CT196,197,198,199,ET196,ST198..U,UL SHADOW GRAY,TRIM1# |
69206-20110-B0 |
US $27.08 |
||
| replacement | |||||
|
69206B
|
69206B
69206-20110-C0
Handle Sub-Assy, Front Door Inside, Lh
[01.1996 -] CT196,197,198,199,ET196,ST198..U,UL SHADOW GRAY,TRIM1# |
69206-20110-C0 |
— | ||
|
69210
|
69210
69210-20270 Handle Assy, Front Door, Outside Rh[11.1992 -] CT196,197,198,199,ET196,ST198 |
69210-20270 |
US $90.27 |
||
|
69210B
|
69210B
90541-04018 Cushion(For Front Door Inside Handle)[11.1992 -] AT191,CT19#,ET196,ST19# |
90541-04018 |
US $2.56 |
||
|
69220
|
69220
69220-20270 Handle Assy, Front Door Outside, Lh[11.1992 -] CT196,197,198,199,ET196,ST198 |
69220-20270 |
US $90.27 |
||
|
69277B
|
69277B
69277-21010-B0 Bezel, Front Door Inside Handle, Rh[02.1994 -] CT196,197,198,199,ET196,ST198..U,UL SHADOW GRAY,TRIM1# |
69277-21010-B0 |
US $13.25 |
||
|
69278B
|
69278B
69278-21010-B0 Bezel, Front Door Inside Handle, Lh[02.1994 -] CT196,197,198,199,ET196,ST198..U,UL SHADOW GRAY,TRIM1# |
69278-21010-B0 |
US $13.25 |
||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[11.1992 -] AT191,CT19#,ET196,ST19# RH,NATURAL |
69293-12030 |
from US $2.09 |
||
|
69293A
|
69293A
69293-12040 Snap, Front Door Outside Handle[11.1992 -] AT191,CT19#,ET196,ST19# LH,YELLOW |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69310-20640 Lock Assy, Front Door, Rh[11.1992 -] CT196,197,198,199,ET196,ST198..U,UL |
69310-20640 |
US $104.83 |
||
|
69320
|
69320
69320-20630
Lock Assy, Front Door, Lh
[11.1992 -] CT196,197,198,199,ET196,ST198..U,UL |
69320-20630 |
— | ||
|
69410
|
69410
69410-87001 Plate Assy, Front Door Lock Striker[11.1992 -] AT191,CT19#,ET196,ST19# |
69410-87001 |
US $11.36 |
||
| replacement | |||||
|
69410
|
69410
69410-AA020 Plate Assy, Front Door Lock Striker[11.1992 -] AT191,CT19#,ET196,ST19# |
69410-AA020 |
US $37.29 |
||
|
69711B
|
69711B
69711-20180 Link, Front Door Lock Remote Control, Rh[11.1992 -] AT191,CT19#,ET196,ST19# |
69711-20180 |
US $8.74 |
||
|
69712A
|
69712A
69712-20180 Link, Front Door Lock Remote Control, Lh[11.1992 -] AT191,CT19#,ET196,ST19# |
69712-20180 |
US $8.74 |
||
|
69749
|
69749
69749-20040
Clamp, Front Door Lock Link
[11.1992 -] AT191,CT19#,ET196,ST19# |
69749-20040 |
— | ||
|
69749A
|
69749A
69749-32030 Clamp, Front Door Lock Link[01.1996 -] AT191,CT19#,ET196,ST19# |
69749-32030 |
US $1.60 |
||
|
69750B
|
69750B
69750-20050 Link Assy, Front Door Inside Locking, Rh[11.1992 -] AT191,CT19#,ET196,ST19# |
69750-20050 |
US $18.05 |
||
|
69759
|
69759
69759-24010 Snap(For Rear Door Inside Handle)[11.1992 -] AT191,CT19#,ET196,ST19# LH,NATURAL |
69759-24010 |
from US $2.18 |
||
|
69759
|
69759
69759-24020 Snap(For Rear Door Inside Handle)[11.1992 -] AT191,CT19#,ET196,ST19# RH,BLUE |
69759-24020 |
from US $2.88 |
||
|
69759
|
69759
69759-24050 Snap, Hood Auxiliary Catch Hook Control Link[01.1996 -] AT191,CT19#,ET196,ST19# LH,GREEN |
69759-24050 |
from US $3.84 |
||
|
69759
|
69759
69759-24060 Snap(For Rear Door Lock)[01.1996 -] AT191,CT19#,ET196,ST19# RH,GRAY |
69759-24060 |
from US $4.64 |
||
|
69759H
|
69759H
69759-20380
Snap, Door Lock Control Link, No.1
[11.1992 -] AT191,CT19#,ET196,ST19# ブラック |
69759-20380 |
— | ||
|
69759H
|
69759H
69759-24030 Snap, Door Inside Handle Link[11.1992 -] AT191,CT19#,ET196,ST19# レッド |
69759-24030 |
from US $2.80 |
||
|
69759S
|
69759S
69759-14050 Snap(For Rear Door Inside Handle)[11.1992 -] AT191,CT19#,ET196,ST19# 右側，ピンク |
69759-14050 |
from US $2.24 |
||
|
69759S
|
69759S
69759-24070 Snap(For Rear Door Inside Handle)[11.1992 -] AT191,CT19#,ET196,ST19# 左側，イエロー |
69759-24070 |
US $2.88 |
||
|
69759V
|
69759V
69759-12060 Pad, Back Panel Silencer, Upper[11.1992 -] AT191,CT19#,ET196,ST19# 68 X 40 X 10 |
69759-12060 |
US $3.93 |
||
|
69759V
|
69759V
69759-20390 Silencer, Front Door Lock Link[01.1996 -] AT191,CT19#,ET196,ST19# ６０Ｘ４０Ｘ２０ |
69759-20390 |
US $6.12 |
||
|
69760A
|
69760A
69760-20050 Link Assy, Front Door Inside Locking, Lh[11.1992 -] AT191,CT19#,ET196,ST19# |
69760-20050 |
US $18.05 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.49 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.12 |
||
|
9018904127
|
9018904127
90189-04127 New Genuine Part |
90189-04127 |
US $1.05 |
||
|
9018906203
|
9018906203
90189-06203 GROMMET SCREW |
90189-06203 |
from US $0.80 |
||
|
9046704014
|
9046704014
90467-04014 Clamp, Rear Door Lock Link |
90467-04014 |
US $1.22 |
||
|
9046708117
|
9046708117
90467-08117 Clamp, Rear Door Lock |
90467-08117 |
US $1.44 |
||
|
9353055020
|
9353055020
93530-55020 SCREW |
93530-55020 |
US $1.76 |
||
