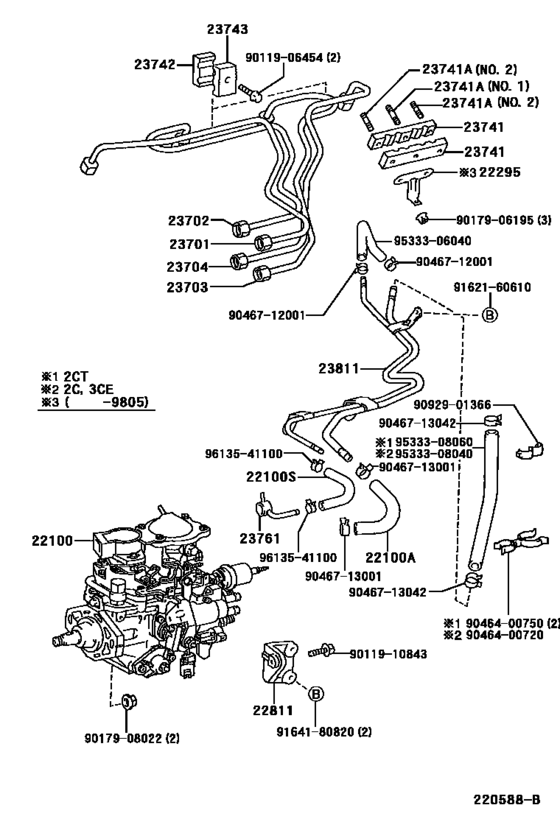

Injection Pump Assembly ([01.1996 - ] (9601- )2C#,3CE) Diagram Toyota CALDINA
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- CT197
- grade
- U
- body
- VAN
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- From
- 05.1998
- To
- 06.2002
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-6E220 Pump Assy, Injection Or Supply[05.1998 -] 3CE..CT19#..5F |
22100-6E220 |
US $4,630.08 |
||
|
22100A
|
22100A
23273-64030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[11.1992 -] 2C#,3CE..CT19# |
23273-64030 |
US $5.36 |
||
|
22100S
|
22100S
23274-64020 Hose, Fuel(For Injection Pump To Fuel Pipe)[05.1998 -] 3CE..CT19# |
23274-64020 |
US $11.65 |
||
|
22811
|
22811
22811-64020 Stay, Injection Pump, No.1[11.1992 -] 2C#,3CE..CT19# |
22811-64020 |
US $22.71 |
||
|
23701
|
23701
23701-64110 Pipe Sub-Assy, Injection, No.1[11.1992 -] 2C#,3CE..CT19# |
23701-64110 |
US $19.22 |
||
|
23702
|
23702
23702-64110 Pipe Sub-Assy, Injection, No.2[11.1992 -] 2C#,3CE..CT19# |
23702-64110 |
US $22.28 |
||
|
23703
|
23703
23703-64090 Pipe Sub-Assy, Injection, No.3[11.1992 -] 2C#,3CE..CT19# |
23703-64090 |
US $22.28 |
||
|
23704
|
23704
23704-64110 Pipe Sub-Assy, Injection, No.4[11.1992 -] 2C#,3CE..CT19# |
23704-64110 |
US $21.40 |
||
|
23741
|
23741
23741-64010
Clamp, Injection Pipe, No.1
[11.1992 -] 2C#,3CE..CT19# |
23741-64010 |
— | ||
| replacement | |||||
|
23741
|
23741
23741-64011 Clamp, Injection Pipe, No.1[11.1992 -] 2C#,3CE..CT19# |
23741-64011 |
US $14.33 |
||
|
23741A
|
23741A
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
[11.1992 -] 2C#,3CE..CT19# ＮＯ．１ |
90116-06275 |
— | ||
| replacement | |||||
|
23741A
|
23741A
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)[11.1992 -] 2C#,3CE..CT19# ＮＯ．１ |
90116-06095 |
US $1.44 |
||
|
23741A
|
23741A
92122-60622 Bolt, Stud(For Injection Pipe Clamp)[11.1992 -] 2C#,3CE..CT19# ＮＯ．２ |
92122-60622 |
US $1.89 |
||
|
23742
|
23742
23741-54010 Clamp, Injection Pipe, No.1[11.1992 -] 2C#,3CE..CT19# |
23741-54010 |
US $20.22 |
||
|
23743
|
23743
23742-54010 Clamp, Injection Pipe, No.2[11.1992 -] 2C#,3CE..CT19# |
23742-54010 |
US $20.22 |
||
|
23761
|
23761
23764-64110 Pipe, Nozzle Leakage, No.1[05.1998 -] 3CE..CT19# |
23764-64110 |
US $29.12 |
||
|
23811
|
23811
23811-64120 Pipe, Fuel(For Fuel Filter To Injection Pump)[05.1998 -] 3CE..CT19# |
23811-64120 |
US $66.25 |
||
|
9011906454
|
9011906454
90119-06454 Bolt |
90119-06454 |
US $1.75 |
||
|
9011910843
|
9011910843
90119-10843 BOLT WWASHER |
90119-10843 |
from US $1.38 |
||
|
9017906195
|
9017906195
90179-06195 New Genuine Part |
90179-06195 |
US $1.92 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.58 |
||
|
9046400720
|
9046400720
90464-00720 New Genuine Part |
90464-00720 |
US $2.62 |
||
|
9046400750
|
9046400750
90464-00750 New Genuine Part |
90464-00750 |
US $2.62 |
||
|
9046712001
|
9046712001
90467-12001 Clip(For Carburetor Fuel Hose) |
90467-12001 |
US $2.18 |
||
| replacement | |||||
|
9046712001
|
9046712001
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.92 |
||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9046713042
|
9046713042
90467-13042 Clip, No.2(For Idle-Up Hose) |
90467-13042 |
US $3.04 |
||
|
9092901366
|
9092901366
90929-01366 New Genuine Part |
90929-01366 |
US $1.46 |
||
|
9162160610
|
9162160610
91621-60610
New Genuine Part
|
91621-60610 |
— | ||
| replacement | |||||
|
9162160610
|
9162160610
91651-B0612 Bolt |
91651-B0612 |
US $1.92 |
||
|
9164180820
|
9164180820
91641-80820 Bolt(For Transaxle & Engine Setting) |
91641-80820 |
US $1.75 |
||
| replacement | |||||
|
9164180820
|
9164180820
91641-H0820 Bolt |
91641-H0820 |
from US $0.90 |
||
|
9533306040
|
9533306040
95333-06040 Hose |
95333-06040 |
from US $11.68 |
||
|
9533308040
|
9533308040
95333-08040 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter) |
95333-08040 |
US $9.32 |
||
| replacement | |||||
|
9533308040
|
9533308040
95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1) |
95337-08040 |
US $8.32 |
||
|
9533308060
|
9533308060
95333-08060
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
|
95333-08060 |
— | ||
|
9613541100
|
9613541100
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
|
96135-41100 |
— | ||
| replacement | |||||
|
9613541100
|
9613541100
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.93 |
||
