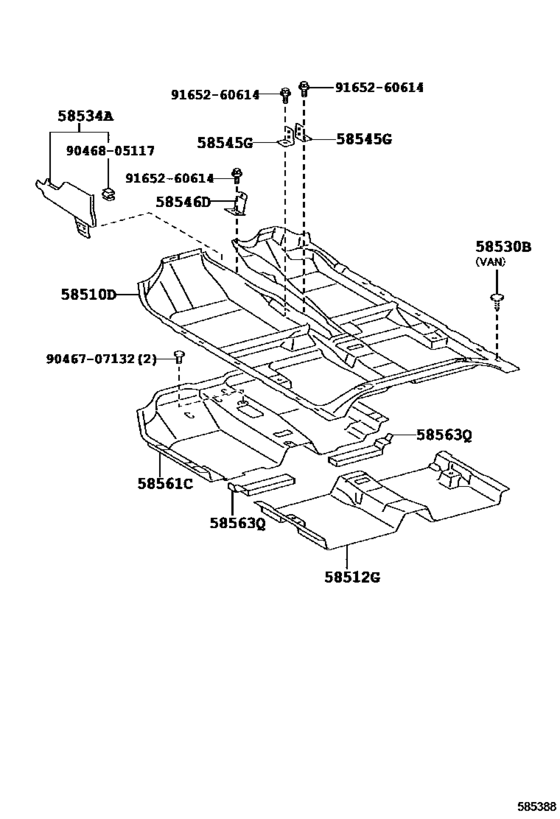

Mat & Carpet ([01.1996 - ] (9601- )) Diagram Toyota CALDINA
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- CT197
- grade
- U
- body
- VAN
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- From
- 05.1998
- To
- 06.2002
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58510D
|
58510D
58510-21350-B1 Carpet Assy, Floor, Front[01.1996 - 08.1999] CT196,197,198,199,ET196..U SHADOW GRAY,TRIM1# |
58510-21350-B1 |
US $861.95 |
||
| replacement | |||||
|
58510D
|
58510D
58510-21410-B1 Carpet Assy, Floor, Front[01.1996 - 08.1999] CT196,197,198,199,ET196..U SHADOW GRAY,TRIM1# |
58510-21410-B1 |
US $856.13 |
||
|
58510D
|
58510D
58510-21360-B1 Carpet Assy, Floor, Front[01.1996 - 08.1999] CT196,197,198,199,ET196..U ｶﾝﾚｲﾁ ｼﾖｳ,SHADOW GRAY,TRIM1# |
58510-21360-B1 |
US $853.22 |
||
| replacement | |||||
|
58510D
|
58510D
58510-21420-B1 Carpet Assy, Floor, Front[01.1996 - 08.1999] CT196,197,198,199,ET196..U ｶﾝﾚｲﾁ ｼﾖｳ,SHADOW GRAY,TRIM1# |
58510-21420-B1 |
US $845.94 |
||
|
58510D
|
58510D
58510-21410-B1 Carpet Assy, Floor, Front[08.1999 -] CT19#,ET196,ST198..U SHADOW GRAY,TRIM1# |
58510-21410-B1 |
US $856.13 |
||
|
58510D
|
58510D
58510-21420-B1 Carpet Assy, Floor, Front[08.1999 -] CT19#,ET196,ST198..U ｶﾝﾚｲﾁ ｼﾖｳ,SHADOW GRAY,TRIM1# |
58510-21420-B1 |
US $845.94 |
||
|
58530B
|
58530B
90467-06016-P0 Clip, Deck Board[01.1996 -] CT196,197,198,199,ET196,ST198 GRAY,TRIM1# |
90467-06016-P0 |
US $2.18 |
||
| replacement | |||||
|
58530B
|
58530B
90467-06016-C0 Clip, Deck Board[01.1996 -] CT196,197,198,199,ET196,ST198 GRAY,TRIM1# |
90467-06016-C0 |
US $2.72 |
||
|
58534A
|
58534A
58534-20020-B0 Mat, Transmission Cover[01.1996 -] AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
58534-20020-B0 |
US $23.88 |
||
|
58545G
|
58545G
58545-20030 Bracket, Floor Carpet, No.2 Rh[01.1996 -] AT191,CT19#,ET196,ST19# |
58545-20030 |
US $12.67 |
||
|
58546D
|
58546D
58544-20060 Bracket, Floor Carpet, Lh[01.1996 -] AT191,CT19#,ET196,ST19# |
58544-20060 |
US $13.40 |
||
|
9046707132
|
9046707132
90467-07132 Clip |
90467-07132 |
from US $0.90 |
||
|
9046805117
|
9046805117
90468-05117 New Genuine Part |
90468-05117 |
US $2.04 |
||
|
9165260614
|
9165260614
91652-60614 New Genuine Part |
91652-60614 |
US $1.60 |
||
