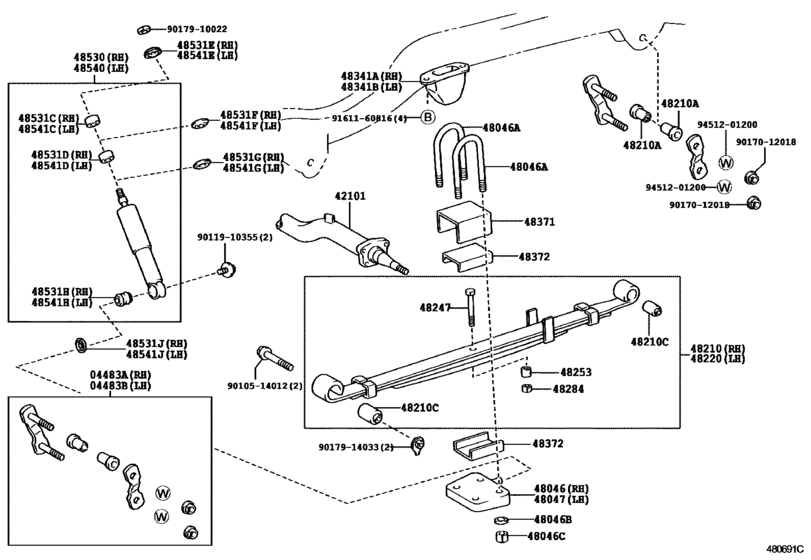

Rear Spring & Shock Absorber ([11.1992 - ] (9211- )CT196,197,ET196) Diagram Toyota CALDINA
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- CT197
- grade
- U
- body
- VAN
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- From
- 05.1998
- To
- 06.2002
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483A
|
04483A
04483-13021 Shackle Kit, Rear Spring[11.1992 -] CT196,197,ET196 |
04483-13021 |
US $41.64 |
||
|
04483B
|
04483B
04483-13021 Shackle Kit, Rear Spring[11.1992 -] CT196,197,ET196 |
04483-13021 |
US $41.64 |
||
|
42101
|
42101
42101-21100 Tube Sub-Assy, Rear Axle[05.1998 - 08.1999] CT197,ET196 |
42101-21100 |
US $735.28 |
||
|
42101
|
42101
42101-21110 Tube Sub-Assy, Rear Axle[05.1998 - 07.1998] CT197 ｱﾘ(ABS) |
42101-21110 |
US $735.28 |
||
| replacement | |||||
|
42101
|
42101
42101-21111 Tube Sub-Assy, Rear Axle[05.1998 - 07.1998] CT197 ｱﾘ(ABS) |
42101-21111 |
US $735.28 |
||
|
42101
|
42101
42101-21111 Tube Sub-Assy, Rear Axle[07.1998 - 08.1999] CT197,ET196 ｱﾘ(ABS) |
42101-21111 |
US $735.28 |
||
|
42101
|
42101
42101-21130 Tube Sub-Assy, Rear Axle[08.1999 -] CT197,ET196 |
42101-21130 |
US $735.28 |
||
|
48046
|
48046
48046-21030 Seat Sub-Assy, Spring U Bolt, Rh[11.1992 -] CT196,197,ET196 |
48046-21030 |
US $14.41 |
||
|
48046A
|
48046A
90117-10010 Bolt, U(For Rear Spring)[11.1992 -] CT196,197,ET196 長さ＝１４３ |
90117-10010 |
US $12.23 |
||
|
48046B
|
48046B
94621-11000 Washer, Spring(For Steering Center Arm)[11.1992 -] CT196,197,198,199,ET196,ST198 |
94621-11000 |
from US $1.93 |
||
|
48046C
|
48046C
90170-10022 Nut(For Rear Spring U Bolt)[11.1992 -] CT196,197,198,199,ET196,ST198 |
90170-10022 |
US $1.14 |
||
|
48047
|
48047
48047-21030 Seat Sub-Assy, Spring U Bolt, Lh[11.1992 -] CT196,197,ET196 |
48047-21030 |
US $14.41 |
||
|
48210
|
48210
48210-21270 Spring Assy, Rear Rh[11.1992 -] CT196,197,ET196 ３枚リーフ |
48210-21270 |
from US $444.72 |
||
|
48210A
|
48210A
90385-15005 Bush(For Rear Spring Shackle Upper)[11.1992 -] CT196,197,ET196 |
90385-15005 |
from US $4.11 |
||
|
48210C
|
48210C
90389-12010 Bush(For Rear Spring Leaf)[11.1992 -] CT196,197,198,199,ET196,ST198 リヤ |
90389-12010 |
US $12.49 |
||
|
48210C
|
48210C
90389-14035 Bush(For Rear Spring Leaf)[11.1992 -] CT196,197,198,ET196 フロント |
90389-14035 |
US $16.92 |
||
|
48220
|
48220
48210-21270 Spring Assy, Rear Rh[11.1992 -] CT196,197,ET196 ３枚リーフ |
48210-21270 |
from US $444.72 |
||
|
48247
|
48247
48247-21250 Bolt, Rear Spring, Center[11.1992 -] CT196,197,ET196 |
48247-21250 |
US $8.59 |
||
|
48253
|
48253
48254-21100 Spacer, Rear Spring, No.1[11.1992 -] CT196,197,ET196 |
48254-21100 |
US $2.91 |
||
|
48284
|
48284
94110-41000 Nut(For Steering Damper)[11.1992 -] CT196,197,ET196 |
94110-41000 |
US $2.56 |
||
|
48341A
|
48341A
48341-21010 Bumper, Rear Spring[11.1992 -] CT196,197,ET196 |
48341-21010 |
US $50.09 |
||
|
48341B
|
48341B
48341-21010 Bumper, Rear Spring[11.1992 -] CT196,197,ET196 |
48341-21010 |
US $50.09 |
||
|
48371
|
48371
48371-21080 Retainer, Rear Spring Pad[11.1992 -] CT196,197,198,ET196 |
48371-21080 |
US $33.63 |
||
|
48372
|
48372
48372-28010
Pad, Rear Spring
[11.1992 -] CT196,197,198,ET196 |
48372-28010 |
— | ||
|
48530
|
48530
48531-80227 Absorber Assy, Shock, Rear Rh[05.1998 -] CT197,ET196 |
48531-80227 |
from US $91.73 |
||
|
48531C
|
48531C
90540-10005 Bush(For Rear Shock Absorber)[11.1992 -] CT196,197,198,199,ET196,ST198 |
90540-10005 |
from US $3.37 |
||
|
48531D
|
48531D
90948-01003 Rubber Cushion[11.1992 -] CT196,197,198,199,ET196,ST198 |
90948-01003 |
from US $1.85 |
||
|
48531E
|
48531E
90948-02045 Washer, Rear Shock Absorber Cushion, No.1[11.1992 -] CT196,197,198,199,ET196,ST198 |
90948-02045 |
US $3.89 |
||
|
48531F
|
48531F
90948-02007 Retainer, Steering Damper Cushion[11.1992 -] CT196,197,198,199,ET196,ST198 |
90948-02007 |
US $2.72 |
||
|
48531G
|
48531G
90948-02002 Retainer, Steering Damper Cushion[11.1992 -] CT196,197,198,199,ET196,ST198 |
90948-02002 |
from US $1.25 |
||
|
48531H
|
48531H
90385-16009 Cushion, Shock Absorber[11.1992 -] CT196,197,198,199,ET196,ST198 |
90385-16009 |
from US $2.69 |
||
|
48531J
|
48531J
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[11.1992 -] CT196,197,198,199,ET196,ST198 |
90948-03004 |
from US $1.42 |
||
|
48540
|
48540
48531-80227 Absorber Assy, Shock, Rear Rh[05.1998 -] CT197,ET196 |
48531-80227 |
from US $91.73 |
||
|
48541C
|
48541C
90540-10005 Bush(For Rear Shock Absorber)[11.1992 -] CT196,197,198,199,ET196,ST198 |
90540-10005 |
from US $3.37 |
||
|
48541D
|
48541D
90948-01003 Rubber Cushion[11.1992 -] CT196,197,198,199,ET196,ST198 |
90948-01003 |
from US $1.85 |
||
|
48541E
|
48541E
90948-02045 Washer, Rear Shock Absorber Cushion, No.1[11.1992 -] CT196,197,198,199,ET196,ST198 |
90948-02045 |
US $3.89 |
||
|
48541F
|
48541F
90948-02007 Retainer, Steering Damper Cushion[11.1992 -] CT196,197,198,199,ET196,ST198 |
90948-02007 |
US $2.72 |
||
|
48541G
|
48541G
90948-02002 Retainer, Steering Damper Cushion[11.1992 -] CT196,197,198,199,ET196,ST198 |
90948-02002 |
from US $1.25 |
||
|
48541H
|
48541H
90385-16009 Cushion, Shock Absorber[11.1992 -] CT196,197,198,199,ET196,ST198 |
90385-16009 |
from US $2.69 |
||
|
48541J
|
48541J
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[11.1992 -] CT196,197,198,199,ET196,ST198 |
90948-03004 |
from US $1.42 |
||
|
9010514012
|
9010514012
90105-14012 Bolt(For Front Suspension Lower Arm) |
90105-14012 |
US $7.13 |
||
|
9011910355
|
9011910355
90119-10355 Washer, Rear Shock Absorber Cushion, No.2 |
90119-10355 |
US $3.84 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $1.28 |
||
|
9017910022
|
9017910022
90179-10022 Nut(For Rear Support To Rear Shock Absorber) |
90179-10022 |
US $4.16 |
||
|
9017914033
|
9017914033
90179-14033 NUT |
90179-14033 |
US $3.79 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
