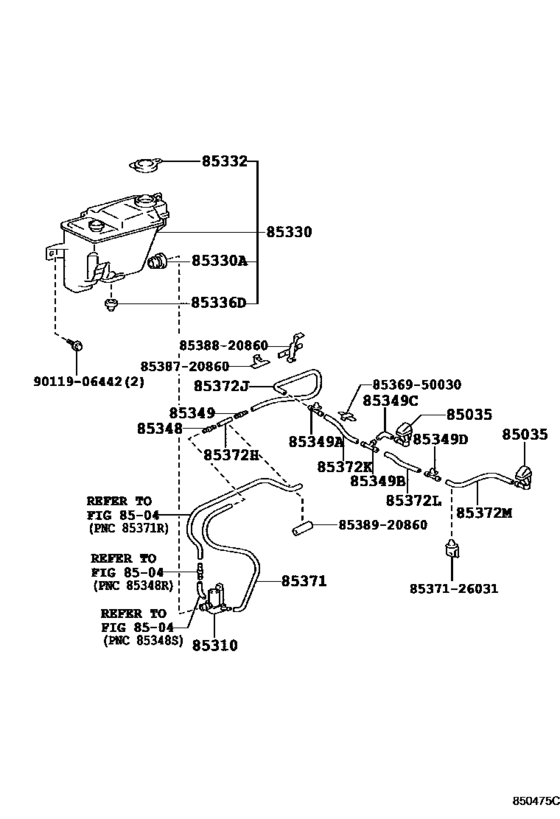

Windshield Washer ([11.1997 - ] (9711- )) Diagram Toyota CALDINA
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- CT197
- grade
- U
- body
- VAN
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- From
- 05.1998
- To
- 06.2002
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[04.1995 -] AT191,CT19#,ET196,ST19# 右側 |
85381-12050 |
from US $17.28 |
||
|
85035
|
85035
85382-20020
Nozzle Sub-Assy, Washer
[11.1992 -] AT191,CT19#,ET196,ST19# 左側 |
85382-20020 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[11.1992 -] AT191,CT19#,ET196,ST19# 左側 |
85381-12050 |
from US $17.28 |
||
|
85310
|
85310
85330-10280 Motor And Pump Assy, Windshield Washer[01.1996 -] CT196,197,198,199,ET196,ST198..U |
85330-10280 |
from US $60.45 |
||
|
85310
|
85310
85330-10290
Motor And Pump Assy, Windshield Washer
[01.1996 -] AT191,CT19#,ET196,ST19# ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
85330-10290 |
— | ||
|
85330
|
85330
85315-20390
Jar Assy, Windshield Washer
[01.1996 -] AT191,CT19#,ET196,ST19# |
85315-20390 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[02.1994 -] AT191,CT19#,ET196,ST19# |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[02.1994 -] AT191,CT19#,ET196,ST19# |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[02.1994 -] AT191,CT19#,ET196,ST19# |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-12290 Cap, Windshield Washer Jar[01.1996 -] AT191,CT19#,ET196,ST19# |
85316-12290 |
from US $1.75 |
||
|
85336D
|
85336D
85336-20340
Packing, Windshield Washer Jar
[11.1992 -] AT191,CT19#,ET196,ST19# |
85336-20340 |
— | ||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[11.1997 -] CT19#,ET196,ST198 |
85349-89122 |
from US $1.25 |
||
|
85349
|
85349
85375-10260 Joint, Windshield Washer Hose, No.1[02.1994 -] AT191,CT19#,ET196,ST19# |
85375-10260 |
from US $1.60 |
||
|
85349A
|
85349A
85375-20800 Joint, Windshield Washer Hose, No.1[11.1992 -] AT191,CT19#,ET196,ST19# |
85375-20800 |
from US $1.54 |
||
|
85349B
|
85349B
85375-28110 Joint, Windshield Washer Hose, No.1[11.1992 -] AT191,CT19#,ET196,ST19# |
85375-28110 |
from US $3.36 |
||
|
85349C
|
85349C
85355-14481 Joint, Windshield Washer Elbow, No.1[11.1992 -] AT191,CT19#,ET196,ST19# |
85355-14481 |
US $0.98 |
||
|
85349D
|
85349D
85375-10260 Joint, Windshield Washer Hose, No.1[08.1999 -] CT19#,ET196,ST198 |
85375-10260 |
from US $1.60 |
||
|
85349D
|
85349D
85375-17050 Joint, Windshield Washer Hose, No.1[11.1992 - 08.1999] AT191,CT19#,ET196,ST19# |
85375-17050 |
US $0.99 |
||
|
85371
|
85371
90446-07001 Hose, Windshield Washer (From Motor To Joint)[11.1997 -] CT19#,ET196,ST198 ＊Ｈ，Ｌ＝５３０ |
90446-07001 |
from US $2.10 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[02.1994 -] AT191,CT19#,ET196,ST19# ＊Ｈ，Ｌ＝３０ |
90099-33080 |
US $9.43 |
||
|
85372J
|
85372J
90446-07001 Hose, Windshield Washer (From Motor To Joint)[02.1994 -] AT191,CT19#,ET196,ST19# ＊Ｈ，Ｌ＝１１３０ |
90446-07001 |
from US $2.10 |
||
|
85372K
|
85372K
90446-07001 Hose, Windshield Washer (From Motor To Joint)[02.1994 -] AT191,CT19#,ET196,ST19# ＊Ｈ，Ｌ＝３１０ |
90446-07001 |
from US $2.10 |
||
|
85372L
|
85372L
90446-07001 Hose, Windshield Washer (From Motor To Joint)[02.1994 - 08.1999] AT191,CT19#,ET196,ST19# ＊Ｈ，Ｌ＝２３０ |
90446-07001 |
from US $2.10 |
||
|
85372M
|
85372M
90099-33080 Hose, Windshield Washer (From Motor To Joint)[02.1994 - 08.1999] AT191,CT19#,ET196,ST19# ＊Ｈ，Ｌ＝３６０ |
90099-33080 |
US $9.43 |
||
|
8536950030
|
8536950030
85369-50030
Clamp
|
85369-50030 |
— | ||
|
8537126031
|
8537126031
85371-26031 Hose, Windshield Washer (from Motor To Joint) |
85371-26031 |
US $2.18 |
||
|
8538720860
|
8538720860
85387-20860
Clamp No.1 (For Windseield Washer)
|
85387-20860 |
— | ||
|
8538820860
|
8538820860
85388-20860
Clamp No.2 (For Windseield Washer)
|
85388-20860 |
— | ||
|
8538920860
|
8538920860
85389-20860
Packing, Windshield Washer Hose, No.1
|
85389-20860 |
— | ||
|
9011906442
|
9011906442
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.88 |
||
