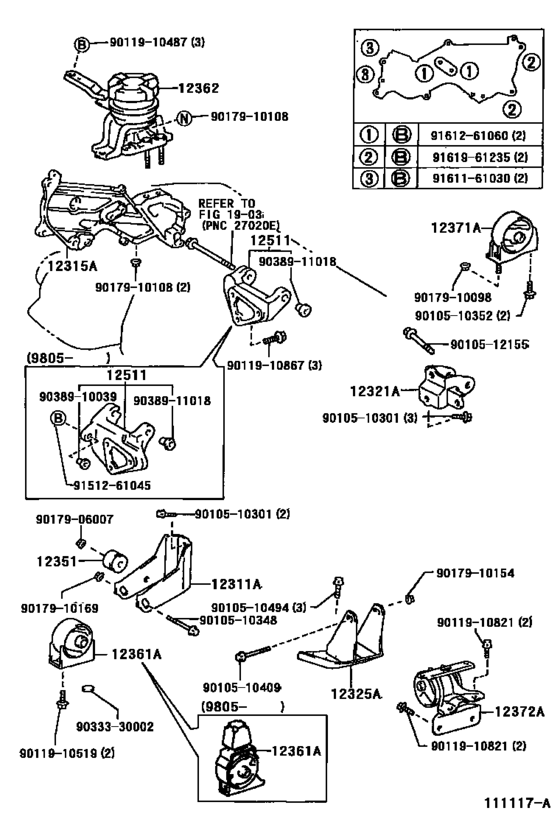

Mounting ([01.1996 - ] (9601- )2C,3CE..CT198,199) Diagram Toyota CALDINA
- Year
- 1998 - 2002
- Sales region
- Japan
- Frame
- CT199
- grade
- U
- body
- VAN
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- From
- 05.1998
- To
- 06.2002
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311A
|
12311A
12311-64210 Bracket, Engine Mounting, Front(For Transverse Engine)[01.1996 -] 2C,3CE..CT198,199 |
12311-64210 |
US $31.01 |
||
|
12315A
|
12315A
12315-64140 Bracket, Engine Mounting, Rh(For Transverse Engine)[04.1998 - 04.2000] 2C,3CE..CT198,199 |
12315-64140 |
US $106.29 |
||
| replacement | |||||
|
12315A
|
12315A
12315-64141 Bracket, Engine Mounting, Rh(For Transverse Engine)[04.1998 - 04.2000] 2C,3CE..CT198,199 |
12315-64141 |
US $72.07 |
||
|
12315A
|
12315A
12315-64141 Bracket, Engine Mounting, Rh(For Transverse Engine)[04.2000 -] 3CE..CT199 |
12315-64141 |
US $72.07 |
||
|
12321A
|
12321A
12321-64290 Bracket, Engine Mounting, Rear(For Transverse Engine)[01.1996 -] 2C,3CE..CT198,199 |
12321-64290 |
US $26.06 |
||
|
12325A
|
12325A
12325-64120 Bracket, Engine Mounting, Lh(For Transverse Engine)[01.1996 -] 2C,3CE..CT198,199 |
12325-64120 |
US $41.06 |
||
|
12351
|
12351
12351-74010 Damper, Engine Mounting[01.1996 -] 2C,3CE..CT198,199 品名コード １２３１１Ａ; 2C#,3CE..CT190,196,197..4FC 品名コード １２３２１Ａ |
12351-74010 |
US $36.16 |
||
|
12361A
|
12361A
12361-64350
Insulator, Engine Mounting, Front(For Transverse Engine)
[05.1998 -] 3CE..CT19# |
12361-64350 |
— | ||
|
12362
|
12362
12305-64152 Insulator, Engine Mounting, Rh(For Transverse Engine)[12.1997 -] 2C,3CE..CT198,199 |
12305-64152 |
US $131.04 |
||
|
12371A
|
12371A
12371-74351 Insulator, Engine Mounting, Rear[05.1995 -] 2C,3CE..CT198,199; 3S#..ST195,198..4FC |
12371-74351 |
US $72.16 |
||
|
12372A
|
12372A
12372-64290 Insulator, Engine Mounting, Lh(For Transverse Engine)[05.1998 -] 3CE..CT19#..5F |
12372-64290 |
US $113.57 |
||
|
12511
|
12511
12511-64100 Bracket, Alternator, No.1[05.1998 -] 3CE..CT19# |
12511-64100 |
US $88.82 |
||
|
9010510301
|
9010510301
90105-10301 BOLT WASHER BASED |
90105-10301 |
US $1.76 |
||
|
9010510348
|
9010510348
90105-10348 BOLT WASHER BASED |
90105-10348 |
US $4.96 |
||
|
9010510352
|
9010510352
90105-10352 New Genuine Part |
90105-10352 |
US $4.96 |
||
|
9010510409
|
9010510409
90105-10409 New Genuine Part |
90105-10409 |
US $4.32 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.60 |
||
|
9010512155
|
9010512155
90105-12155 BOLT WASHER BASED |
90105-12155 |
US $5.28 |
||
|
9011910487
|
9011910487
90119-10487 New Genuine Part |
90119-10487 |
US $2.77 |
||
|
9011910519
|
9011910519
90119-10519 New Genuine Part |
90119-10519 |
US $3.20 |
||
|
9011910821
|
9011910821
90119-10821 New Genuine Part |
90119-10821 |
US $2.72 |
||
|
9011910867
|
9011910867
90119-10867 BOLT WWASHER |
90119-10867 |
US $1.46 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017910098
|
9017910098
90179-10098 New Genuine Part |
90179-10098 |
US $1.49 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017910154
|
9017910154
90179-10154 NUT |
90179-10154 |
from US $1.01 |
||
|
9017910169
|
9017910169
90179-10169 NUT |
90179-10169 |
US $2.62 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9038910039
|
9038910039
90389-10039 Bush, Alternator Bracket |
90389-10039 |
US $4.89 |
||
|
9038911018
|
9038911018
90389-11018 New Genuine Part |
90389-11018 |
US $4.22 |
||
|
9151261045
|
9151261045
91512-61045 Bolt |
91512-61045 |
US $2.24 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9161261060
|
9161261060
91612-61060 Bolt(for Clutch Release Cylinder Setting) |
91612-61060 |
US $1.92 |
||
|
9161961235
|
9161961235
91619-61235 BOLT |
91619-61235 |
from US $2.08 |
||
