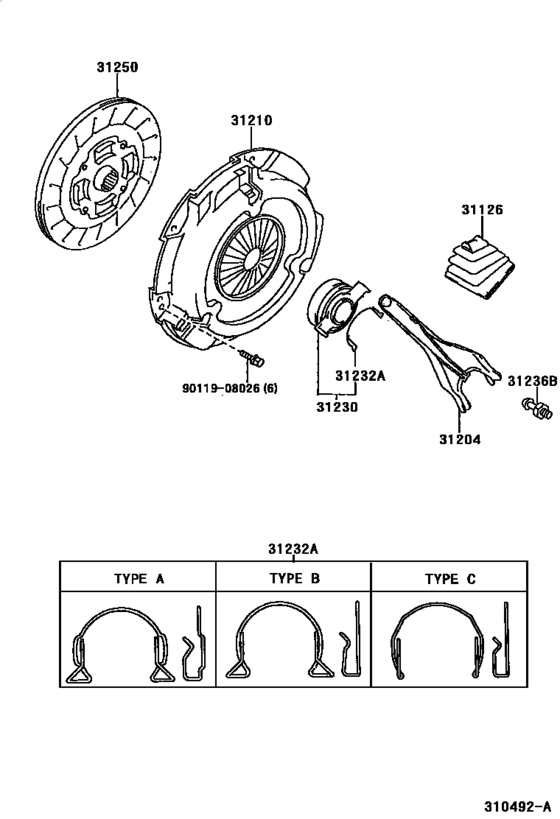

Clutch & Release Fork ([11.1992 - ] C51 (9211- )ET196) Diagram Toyota CALDINA
- Year
- 1992 - 2002
- Sales region
- Japan
- Frame
- ET196
- grade
- U
- body
- VAN
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 11.1992
- To
- 06.2002
- Gear Shift Type
- 5F
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[11.1992 - 06.2002] AT191,ET196..5F |
31126-12051 |
from US $10.08 |
||
|
31204
|
31204
31204-12050 Fork Sub-Assy, Clutch Release[11.1992 - 06.2002] ET196..5F |
31204-12050 |
from US $39.98 |
||
|
31210
|
31210
31210-12191
Cover Assy, Clutch
[08.1997 -] ET196..5F |
31210-12191 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-52071 Cover Assy, Clutch[08.1997 -] ET196..5F |
31210-52071 |
US $143.73 |
||
|
31210
|
31210
31210-16091 Cover Assy, Clutch[11.1992 - 03.1995] ET196..5F |
31210-16091 |
US $179.09 |
||
| replacement | |||||
|
31210
|
31210
31210-52071 Cover Assy, Clutch[11.1992 - 03.1995] ET196..5F |
31210-52071 |
US $143.73 |
||
|
31210
|
31210
31210-16092 Cover Assy, Clutch[03.1995 - 08.1997] ET196..5F |
31210-16092 |
US $155.79 |
||
| replacement | |||||
|
31210
|
31210
31210-52071 Cover Assy, Clutch[03.1995 - 08.1997] ET196..5F |
31210-52071 |
US $143.73 |
||
|
31230
|
31230
31230-12140
Bearing Assy, Clutch Release
[01.1996 - 07.1999] ET196..5F |
31230-12140 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-16061 Bearing Assy, Clutch Release[01.1996 - 07.1999] ET196..5F |
31230-16061 |
from US $62.05 |
||
|
31230
|
31230
31230-16060 Bearing Assy, Clutch Release[11.1992 - 01.1996] ET196..5F |
31230-16060 |
US $56.49 |
||
| replacement | |||||
|
31230
|
31230
31230-16061 Bearing Assy, Clutch Release[11.1992 - 01.1996] ET196..5F |
31230-16061 |
from US $62.05 |
||
|
31230
|
31230
31230-52010
Bearing Assy, Clutch Release
[07.1999 - 06.2002] ET196..5F |
31230-52010 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-52011 Bearing Assy, Clutch Release[07.1999 - 06.2002] ET196..5F |
31230-52011 |
US $38.46 |
||
|
31232A
|
31232A
31232-12040
Clip, Release Bearing Hub
[01.1996 - 06.2002] ET196..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
31232-12040 |
— | ||
|
31232A
|
31232A
31232-16031
Clip, Release Bearing Hub
[11.1992 - 06.2002] ET196..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
31232-16031 |
— | ||
|
31232A
|
31232A
31232-52010 Clip, Release Bearing Hub[07.1999 - 06.2002] ET196..5F TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
31232-52010 |
US $2.62 |
||
|
31236B
|
31236B
31236-12011 Ball, Release Fork[11.1992 - 06.2002] ET196..5F |
31236-12011 |
from US $11.36 |
||
|
31250
|
31250
31250-12310
Disc Assy, Clutch
[11.1992 - 05.1995] ET196..5F |
31250-12310 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-12570 Disc Assy, Clutch[11.1992 - 05.1995] ET196..5F |
31250-12570 |
from US $146.88 |
||
|
31250
|
31250
31250-12370 Disc Assy, Clutch[11.1995 - 08.1996] AT191,ET196..5F |
31250-12370 |
US $151.42 |
||
| replacement | |||||
|
31250
|
31250
31250-12570 Disc Assy, Clutch[11.1995 - 08.1996] AT191,ET196..5F |
31250-12570 |
from US $146.88 |
||
|
31250
|
31250
31250-12380 Disc Assy, Clutch[05.1995 - 11.1995] ET196..5F |
31250-12380 |
US $151.42 |
||
| replacement | |||||
|
31250
|
31250
31250-12570 Disc Assy, Clutch[05.1995 - 11.1995] ET196..5F |
31250-12570 |
from US $146.88 |
||
|
31250
|
31250
31250-20280 Disc Assy, Clutch[08.1997 -] ET196..5F |
31250-20280 |
US $116.48 |
||
| replacement | |||||
|
31250
|
31250
31250-12570 Disc Assy, Clutch[08.1997 -] ET196..5F |
31250-12570 |
from US $146.88 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.70 |
||
