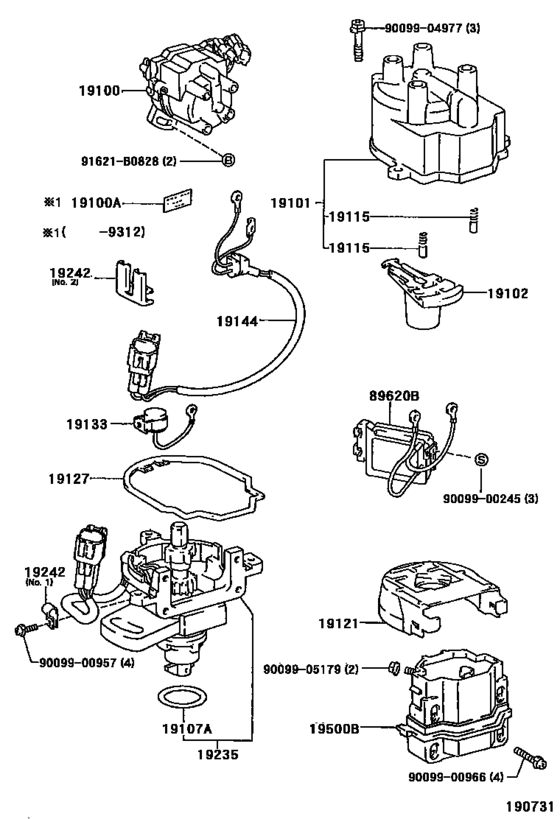

Distributor ([11.1992 - 08.1997] (9211-9708)5EFE) Diagram Toyota CALDINA
- Year
- 1992 - 2002
- Sales region
- Japan
- Frame
- ET196
- grade
- U
- body
- VAN
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 11.1992
- To
- 06.2002
- Gear Shift Type
- 5F
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19020-11340
Distributor Assy
[11.1992 - 08.1995] 5EFE..ET196 |
19020-11340 |
— | ||
| replacement | |||||
|
19100
|
19100
19020-11380 Distributor Assy[11.1992 - 08.1995] 5EFE..ET196 |
19020-11380 |
US $1,358.45 |
||
|
19100
|
19100
19020-11390 Distributor Assy[08.1995 - 01.1996] 5EFE..ET196 |
19020-11390 |
US $1,352.62 |
||
| replacement | |||||
|
19100
|
19100
19020-11400 Distributor Assy[08.1995 - 01.1996] 5EFE..ET196 |
19020-11400 |
US $1,359.90 |
||
|
19100
|
19100
19020-11400 Distributor Assy[01.1996 - 08.1997] 5EFE..ET196 |
19020-11400 |
US $1,359.90 |
||
|
19100A
|
19100A
90919-24004
Tape, Sealing
[11.1992 - 12.1993] 5EFE..ET196; 3SFE,4SFE..ST19# |
90919-24004 |
— | ||
| replacement | |||||
|
19100A
|
19100A
90919-24003
Tape, Sealing
[11.1992 - 12.1993] 5EFE..ET196; 3SFE,4SFE..ST19# |
90919-24003 |
— | ||
|
19101
|
19101
19101-11060 Cap Sub-Assy, Distributor[11.1992 - 08.1997] 5EFE..ET196 |
19101-11060 |
US $148 |
||
|
19102
|
19102
19102-11031
Rotor Sub-Assy, Distributor
[11.1992 - 01.1996] 5EFE..ET196; 3SFE,4SFE..ST19# |
19102-11031 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-16010 Rotor Sub-Assy, Distributor[11.1992 - 01.1996] 5EFE..ET196; 3SFE,4SFE..ST19# |
19102-16010 |
from US $8.96 |
||
|
19102
|
19102
19102-11370 Rotor Sub-Assy, Distributor[01.1996 - 08.1997] 5EFE..ET196 |
19102-11370 |
US $17.33 |
||
| replacement | |||||
|
19102
|
19102
19102-16010 Rotor Sub-Assy, Distributor[01.1996 - 08.1997] 5EFE..ET196 |
19102-16010 |
from US $8.96 |
||
|
19107A
|
19107A
90099-14088 Ring, O, Distributor Housing[11.1992 - 08.1997] 5EFE..ET196 |
90099-14088 |
from US $2.50 |
||
|
19115
|
19115
19115-63010 Piece, Distributor Cap, Center[11.1992 - 08.1997] 5EFE..ET196 |
19115-63010 |
from US $1.40 |
||
|
19121
|
19121
19121-11080 Cover, Dust Proof[11.1992 - 08.1997] 5EFE..ET196 |
19121-11080 |
from US $4.02 |
||
|
19127
|
19127
19127-15120 Packing, Dust Proof[11.1992 - 08.1997] 5EFE..ET196 |
19127-15120 |
from US $3.43 |
||
|
19133
|
19133
19133-16240 Condenser, Distributor[11.1992 - 08.1997] 5EFE..ET196 |
19133-16240 |
from US $6.84 |
||
|
19144
|
19144
19144-11350
Lead, Distributor Breaker
[11.1992 - 08.1997] 5EFE..ET196 |
19144-11350 |
— | ||
| replacement | |||||
|
19144
|
19144
19144-11340
Lead, Distributor Breaker
[11.1992 - 08.1997] 5EFE..ET196 |
19144-11340 |
— | ||
|
19235
|
19235
19235-11340 Housing, Distributor[11.1992 - 08.1997] 5EFE..ET196 |
19235-11340 |
US $187.82 |
||
|
19242
|
19242
19242-11190 Clamp, Cord[11.1992 - 08.1997] 5EFE..ET196 ＮＯ．１ |
19242-11190 |
US $14.71 |
||
|
19242
|
19242
19242-11350 Clamp, Cord[11.1992 - 08.1997] 5EFE..ET196 ＮＯ．２ |
19242-11350 |
US $14.27 |
||
|
19500B
|
19500B
90919-02164 Coil Assy, Ignition[11.1992 - 08.1997] 5EFE..ET196 |
90919-02164 |
from US $121.10 |
||
|
89620B
|
89620B
89620-12420
Igniter Assy
[11.1992 - 01.1996] ET196 |
89620-12420 |
— | ||
| replacement | |||||
|
89620B
|
89620B
89620-16260 Igniter Assy[11.1992 - 01.1996] ET196 |
89620-16260 |
US $338.96 |
||
|
89620B
|
89620B
89620-12440 Igniter Assy[01.1996 - 01.1997] ET196 |
89620-12440 |
US $396.61 |
||
|
89620B
|
89620B
89620-16260 Igniter Assy[01.1997 - 08.1997] ET196 |
89620-16260 |
US $338.96 |
||
|
91621B0828
|
91621B0828
91621-B0828
New Genuine Part
|
91621-B0828 |
— | ||
| replacement | |||||
|
91621B0828
|
91621B0828
91651-B0830 New Genuine Part |
91651-B0830 |
US $1.44 |
||
|
9009900245
|
9009900245
90099-00245
New Genuine Part
|
90099-00245 |
— | ||
|
9009900957
|
9009900957
90099-00957
New Genuine Part
|
90099-00957 |
— | ||
|
9009900966
|
9009900966
90099-00966
New Genuine Part
|
90099-00966 |
— | ||
|
9009904977
|
9009904977
90099-04977 BOLT |
90099-04977 |
from US $1.46 |
||
|
9009905179
|
9009905179
90099-05179
New Genuine Part
|
90099-05179 |
— | ||
