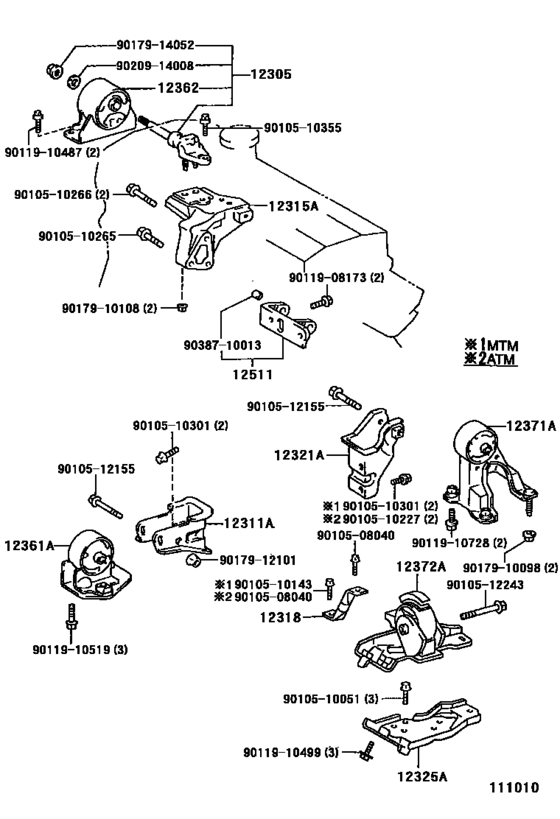

Mounting ([11.1992 - 01.1996] (9211-9601)5EFE) Diagram Toyota CALDINA
- Year
- 1992 - 2002
- Sales region
- Japan
- Frame
- ET196
- grade
- U
- body
- VAN
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 11.1992
- To
- 06.2002
- Gear Shift Type
- 5F
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-11040 Insulator Sub-Assy, Engine Mounting, Rh[11.1992 - 01.1996] 5EFE..ET196 |
12305-11040 |
US $186.37 |
||
| replacement | |||||
|
12305
|
12305
12305-11070 Insulator Sub-Assy, Engine Mounting, Rh[11.1992 - 01.1996] 5EFE..ET196 |
12305-11070 |
US $187.82 |
||
|
12305
|
12305
12305-11070 Insulator Sub-Assy, Engine Mounting, Rh[01.1996 -] 5EFE..ET196 |
12305-11070 |
US $187.82 |
||
|
12311A
|
12311A
12311-11100 Bracket, Engine Mounting, Front(For Transverse Engine)[11.1992 - 01.1996] 5EFE..ET196 |
12311-11100 |
US $40.91 |
||
|
12311A
|
12311A
12311-11120 Bracket, Engine Mounting, Front(For Transverse Engine)[01.1996 -] 5EFE..ET196 |
12311-11120 |
US $46.01 |
||
|
12315A
|
12315A
12315-11050 Bracket, Engine Mounting, Rh(For Transverse Engine)[11.1992 - 02.1997] 5EFE..ET196 |
12315-11050 |
US $94.64 |
||
| replacement | |||||
|
12315A
|
12315A
12315-11051
Bracket, Engine Mounting, Rh(For Transverse Engine)
[11.1992 - 02.1997] 5EFE..ET196 |
12315-11051 |
— | ||
|
12315A
|
12315A
12315-11051
Bracket, Engine Mounting, Rh(For Transverse Engine)
[02.1997 -] 5EFE..ET196 |
12315-11051 |
— | ||
|
12318
|
12318
12318-16010 Stay, Engine Mounting, Lh[11.1992 - 01.1996] 5EFE..ET196..5F |
12318-16010 |
US $24.46 |
||
|
12321A
|
12321A
12321-11180 Bracket, Engine Mounting, Rear(For Transverse Engine)[11.1992 -] 5EFE..ET196..5F |
12321-11180 |
US $36.11 |
||
|
12325A
|
12325A
12325-11140 Bracket, Engine Mounting, Lh(For Transverse Engine)[01.1996 -] 5EFE..ET196..5F |
12325-11140 |
US $31.01 |
||
|
12325A
|
12325A
12325-16120
Bracket, Engine Mounting, Lh(For Transverse Engine)
[11.1992 - 01.1996] 5EFE..ET196..5F |
12325-16120 |
— | ||
|
12361A
|
12361A
12361-16210
Insulator, Engine Mounting, Front(For Transverse Engine)
[11.1992 - 01.1996] 5EFE..ET196..5F |
12361-16210 |
— | ||
|
12361A
|
12361A
12361-16280
Insulator, Engine Mounting, Front(For Transverse Engine)
[01.1996 -] 5EFE..ET196..5F |
12361-16280 |
— | ||
|
12362
|
12362
12362-11210
Insulator, Engine Mounting, Rh(For Transverse Engine)
[11.1992 -] 5EFE..ET196 |
12362-11210 |
— | ||
|
12371A
|
12371A
12371-11590 Insulator, Engine Mounting, Rear[01.1996 -] 5EFE..ET196 |
12371-11590 |
US $113.57 |
||
|
12371A
|
12371A
12371-16270 Insulator, Engine Mounting, Rear[11.1992 - 01.1996] 5EFE..ET196..5F |
12371-16270 |
US $104.83 |
||
|
12372A
|
12372A
12372-11270 Insulator, Engine Mounting, Lh(For Transverse Engine)[11.1992 - 01.1996] 5EFE..ET196..5F |
12372-11270 |
US $122.30 |
||
|
12372A
|
12372A
12372-16360 Insulator, Engine Mounting, Lh(For Transverse Engine)[01.1996 - 02.1996] 7AFE..AT191..5F; 5EFE..ET196..5F |
12372-16360 |
US $113.57 |
||
| replacement | |||||
|
12372A
|
12372A
12372-16361 Insulator, Engine Mounting, Lh(For Transverse Engine)[01.1996 - 02.1996] 7AFE..AT191..5F; 5EFE..ET196..5F |
12372-16361 |
US $113.57 |
||
|
12372A
|
12372A
12372-16361 Insulator, Engine Mounting, Lh(For Transverse Engine)[02.1996 -] 5EFE..ET196..5F |
12372-16361 |
US $113.57 |
||
|
12511
|
12511
12511-11020 Bracket, Alternator, No.1[11.1992 -] 5EFE..ET196 |
12511-11020 |
US $56.35 |
||
|
9010508040
|
9010508040
90105-08040
Bolt(For Plate Bolt Lock)
|
90105-08040 |
— | ||
| replacement | |||||
|
9010508040
|
9010508040
91641-H0820 Bolt |
91641-H0820 |
from US $0.90 |
||
|
9010510051
|
9010510051
90105-10051
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
|
90105-10051 |
— | ||
| replacement | |||||
|
9010510051
|
9010510051
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.56 |
||
|
9010510143
|
9010510143
90105-10143 New Genuine Part |
90105-10143 |
US $1.89 |
||
| replacement | |||||
|
9010510143
|
9010510143
91512-B1016 New Genuine Part |
91512-B1016 |
US $2.08 |
||
|
9010510227
|
9010510227
90105-10227 New Genuine Part |
90105-10227 |
US $3.20 |
||
| replacement | |||||
|
9010510227
|
9010510227
91552-G1040 BOLT FLANGE |
91552-G1040 |
US $1.92 |
||
|
9010510265
|
9010510265
90105-10265 New Genuine Part |
90105-10265 |
US $2.62 |
||
|
9010510266
|
9010510266
90105-10266
Bolt
|
90105-10266 |
— | ||
|
9010510301
|
9010510301
90105-10301 BOLT WASHER BASED |
90105-10301 |
US $1.76 |
||
|
9010510355
|
9010510355
90105-10355 BOLT WASHER BASED |
90105-10355 |
US $2.62 |
||
|
9010512155
|
9010512155
90105-12155 BOLT WASHER BASED |
90105-12155 |
US $5.28 |
||
|
9010512243
|
9010512243
90105-12243 New Genuine Part |
90105-12243 |
US $4.95 |
||
|
9011908173
|
9011908173
90119-08173 New Genuine Part |
90119-08173 |
US $3.06 |
||
|
9011910487
|
9011910487
90119-10487 New Genuine Part |
90119-10487 |
US $2.77 |
||
|
9011910499
|
9011910499
90119-10499 BOLT WWASHER |
90119-10499 |
US $3.20 |
||
|
9011910519
|
9011910519
90119-10519 New Genuine Part |
90119-10519 |
US $3.20 |
||
|
9011910728
|
9011910728
90119-10728 New Genuine Part |
90119-10728 |
US $1.18 |
||
|
9017910098
|
9017910098
90179-10098 New Genuine Part |
90179-10098 |
US $1.49 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017912101
|
9017912101
90179-12101 New Genuine Part |
90179-12101 |
US $3.20 |
||
|
9017914052
|
9017914052
90179-14052 New Genuine Part |
90179-14052 |
US $1.75 |
||
|
9020914008
|
9020914008
90209-14008 New Genuine Part |
90209-14008 |
US $1.75 |
||
|
9038710013
|
9038710013
90387-10013 Bush, Alternator Bracket |
90387-10013 |
US $4.22 |
||
