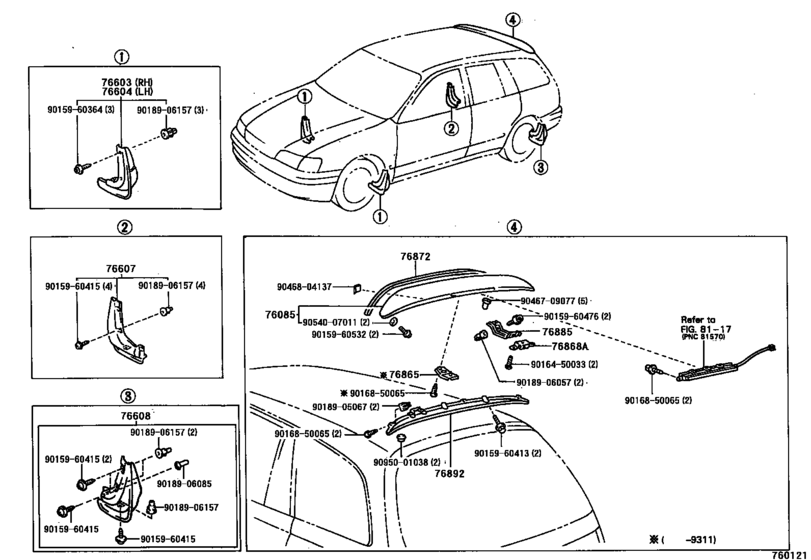

Mudguard & Spoiler ([11.1992 - ] (9211- )CZ,TZ) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- TZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76085
|
76085
76085-21901 Spoiler Sub-Assy, Rear[11.1992 - 02.1995] CT190,ST19#..CZ,TZ |
76085-21901 |
US $582.40 |
||
|
76603
|
76603
76621-29135-A0
Mudguard Sub-Assy, Front Fender, Rh
[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG SUPER WHITE 2,040 |
76621-29135-A0 |
— | ||
|
76603
|
76603
76621-29135-B1 Mudguard Sub-Assy, Front Fender, Rh[11.1992 - 01.1995] CT190,ST19#..CZ,TZ BL.GRAY.ME,25V ,26V |
76621-29135-B1 |
US $94.64 |
||
|
76603
|
76603
76621-29135-B2 Mudguard Sub-Assy, Front Fender, Rh[02.1994 - 01.1996] CT190,ST19#..CZ,TZ,TZG LI.GRAIGE ME,1A2 |
76621-29135-B2 |
US $94.64 |
||
|
76603
|
76603
76621-29135-D1 Mudguard Sub-Assy, Front Fender, Rh[11.1992 - 02.1994] CT190,ST19#..CZ,TZ DARK WINE MICA M,3K1 |
76621-29135-D1 |
US $48.05 |
||
|
76603
|
76603
76621-29135-D2 Mudguard Sub-Assy, Front Fender, Rh[02.1994 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG MAGENTA MC,3L3 |
76621-29135-D2 |
US $94.64 |
||
|
76603
|
76603
76621-29135-E1 Mudguard Sub-Assy, Front Fender, Rh[11.1992 - 02.1994] CT190,ST19#..CZ,TZ LIGHT BEIGE ME,4M3 |
76621-29135-E1 |
US $48.05 |
||
|
76603
|
76603
76621-29135-G0 Mudguard Sub-Assy, Front Fender, Rh[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG DK.GRAYISH OLIVE ME,6M7 |
76621-29135-G0 |
US $48.05 |
||
|
76604
|
76604
76622-29135-A0
Mudguard Sub-Assy, Front Fender, Lh
[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG SUPER WHITE 2,040 |
76622-29135-A0 |
— | ||
|
76604
|
76604
76622-29135-B1 Mudguard Sub-Assy, Front Fender, Lh[11.1992 - 01.1995] CT190,ST19#..CZ,TZ BL.GRAY.ME,25V ,26V |
76622-29135-B1 |
US $94.64 |
||
|
76604
|
76604
76622-29135-B2 Mudguard Sub-Assy, Front Fender, Lh[02.1994 - 01.1996] CT190,ST19#..CZ,TZ,TZG LI.GRAIGE ME,1A2 |
76622-29135-B2 |
US $94.64 |
||
|
76604
|
76604
76622-29135-D1 Mudguard Sub-Assy, Front Fender, Lh[11.1992 - 02.1994] CT190,ST19#..CZ,TZ DARK WINE MICA M,3K1 |
76622-29135-D1 |
US $48.05 |
||
|
76604
|
76604
76622-29135-D2 Mudguard Sub-Assy, Front Fender, Lh[02.1994 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG MAGENTA MC,3L3 |
76622-29135-D2 |
US $94.64 |
||
|
76604
|
76604
76622-29135-E1 Mudguard Sub-Assy, Front Fender, Lh[11.1992 - 02.1994] CT190,ST19#..CZ,TZ LIGHT BEIGE ME,4M3 |
76622-29135-E1 |
US $48.05 |
||
|
76604
|
76604
76622-29135-G0 Mudguard Sub-Assy, Front Fender, Lh[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG DK.GRAYISH OLIVE ME,6M7 |
76622-29135-G0 |
US $48.05 |
||
|
76607
|
76607
76625-29125-A0
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG SUPER WHITE 2,040 |
76625-29125-A0 |
— | ||
|
76607
|
76607
76625-29125-B1 Mudguard Sub-Assy, Quarter Panel, Rear Rh[11.1992 - 01.1995] CT190,ST19#..CZ,TZ BL.GRAY.ME,25V ,26V |
76625-29125-B1 |
US $94.64 |
||
|
76607
|
76607
76625-29125-B2 Mudguard Sub-Assy, Quarter Panel, Rear Rh[02.1994 - 01.1996] CT190,ST19#..CZ,TZ,TZG LI.GRAIGE ME,1A2 |
76625-29125-B2 |
US $94.64 |
||
|
76607
|
76607
76625-29125-D1 Mudguard Sub-Assy, Quarter Panel, Rear Rh[11.1992 - 02.1994] CT190,ST19#..CZ,TZ DARK WINE MICA M,3K1 |
76625-29125-D1 |
US $48.05 |
||
|
76607
|
76607
76625-29125-D2 Mudguard Sub-Assy, Quarter Panel, Rear Rh[02.1994 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG MAGENTA MC,3L3 |
76625-29125-D2 |
US $94.64 |
||
|
76607
|
76607
76625-29125-E1 Mudguard Sub-Assy, Quarter Panel, Rear Rh[11.1992 - 02.1994] CT190,ST19#..CZ,TZ LIGHT BEIGE M,4M3 |
76625-29125-E1 |
US $48.05 |
||
|
76607
|
76607
76625-29125-G0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG DK.GRAYISH OLIVE ME,6M7 |
76625-29125-G0 |
US $48.05 |
||
|
76608
|
76608
76626-29125-A0
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG SUPER WHITE 2,040 |
76626-29125-A0 |
— | ||
|
76608
|
76608
76626-29125-B1 Mudguard Sub-Assy, Quarter Panel, Rear Lh[11.1992 - 01.1995] CT190,ST19#..CZ,TZ BL.GRAY.ME,25V ,26V |
76626-29125-B1 |
US $94.64 |
||
|
76608
|
76608
76626-29125-B2 Mudguard Sub-Assy, Quarter Panel, Rear Lh[02.1994 - 01.1996] CT190,ST19#..CZ,TZ,TZG LI.GRAIGE ME,1A2 |
76626-29125-B2 |
US $94.64 |
||
|
76608
|
76608
76626-29125-D1 Mudguard Sub-Assy, Quarter Panel, Rear Lh[11.1992 - 02.1994] CT190,ST19#..CZ,TZ DARK WINE MICA M,3K1 |
76626-29125-D1 |
US $48.05 |
||
|
76608
|
76608
76626-29125-D2 Mudguard Sub-Assy, Quarter Panel, Rear Lh[02.1994 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG MAGENTA MC,3L3 |
76626-29125-D2 |
US $94.64 |
||
|
76608
|
76608
76626-29125-E1 Mudguard Sub-Assy, Quarter Panel, Rear Lh[11.1992 - 02.1994] CT190,ST19#..CZ,TZ LIGHT BEIGE M,4M3 |
76626-29125-E1 |
US $48.05 |
||
|
76608
|
76608
76626-29125-G0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG DK.GRAYISH OLIVE ME,6M7 |
76626-29125-G0 |
US $48.05 |
||
|
76865
|
76865
76865-21020 Retainer, Rear Spoiler, No.1[11.1992 - 11.1993] CT190,ST19#..CZ,TZ |
76865-21020 |
US $4.37 |
||
|
76868A
|
76868A
76868-21020 Retainer, Rear Spoiler, No.4[11.1992 - 02.1995] CT190,ST19#..CZ,TZ |
76868-21020 |
US $4.37 |
||
|
76872
|
76872
76872-21020 Protector, Rear Spoiler, No.1[11.1992 - 02.1995] CT190,ST19#..CZ,TZ |
76872-21020 |
US $17.33 |
||
|
76885
|
76885
76885-21010 Retainer, Rear Spoiler, No.5[11.1992 - 02.1995] CT190,ST19#..CZ,TZ |
76885-21010 |
US $9.03 |
||
|
76892
|
76892
76892-21900 Spoiler, Rear No.2[11.1992 - 02.1995] CT190,ST19#..CZ,TZ |
76892-21900 |
US $177.63 |
||
|
9015960364
|
9015960364
90159-60364 SCREW WWASHER |
90159-60364 |
US $1.92 |
||
|
9015960413
|
9015960413
90159-60413 SCREW WWASHER |
90159-60413 |
US $1.92 |
||
|
9015960415
|
9015960415
90159-60415 SCREW WWASHER |
90159-60415 |
from US $0.86 |
||
|
9015960476
|
9015960476
90159-60476 SCREW WWASHER |
90159-60476 |
from US $0.74 |
||
|
9015960532
|
9015960532
90159-60532 New Genuine Part |
90159-60532 |
US $1.02 |
||
|
9016450033
|
9016450033
90164-50033 New Genuine Part |
90164-50033 |
US $0.96 |
||
|
9016850065
|
9016850065
90168-50065 New Genuine Part |
90168-50065 |
US $1.46 |
||
|
9018905067
|
9018905067
90189-05067 GROMMET |
90189-05067 |
US $2.08 |
||
|
9018906057
|
9018906057
90189-06057 GROMMET |
90189-06057 |
from US $1.09 |
||
|
9018906085
|
9018906085
90189-06085 GROMMET |
90189-06085 |
US $1.89 |
||
|
9018906157
|
9018906157
90189-06157 GROMMET SCREW |
90189-06157 |
from US $0.78 |
||
|
9046709077
|
9046709077
90467-09077 Clip(For Rear Combination Lamp) |
90467-09077 |
from US $0.82 |
||
|
9046804137
|
9046804137
90468-04137 Clip, Roof Headlining |
90468-04137 |
US $1.22 |
||
|
9054007011
|
9054007011
90540-07011 New Genuine Part |
90540-07011 |
US $2.48 |
||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
