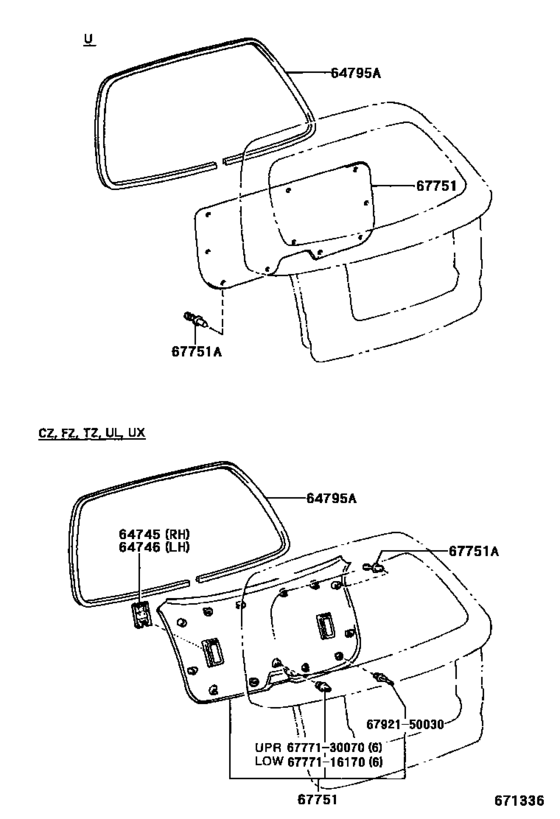

Back Door Panel & Glass ([11.1992 - ] (9211- )) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64745
|
64745
64745-21010-B0 Cover, Rear Combination Lamp Service, Rh[02.1994 -] AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
64745-21010-B0 |
US $15.14 |
||
|
64745
|
64745
64745-21010-C0 Cover, Rear Combination Lamp Service, Rh[11.1992 - 02.1994] CT19#,ET196,ST19# BLACK,TRIM2# |
64745-21010-C0 |
US $15.14 |
||
| replacement | |||||
|
64745
|
64745
64745-21010-B0 Cover, Rear Combination Lamp Service, Rh[11.1992 - 02.1994] CT19#,ET196,ST19# BLACK,TRIM2# |
64745-21010-B0 |
US $15.14 |
||
|
64746
|
64746
64746-21010-B0 Cover, Rear Combination Lamp Service, Lh[02.1994 -] AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
64746-21010-B0 |
US $15.14 |
||
|
64746
|
64746
64746-21010-C0 Cover, Rear Combination Lamp Service, Lh[11.1992 - 02.1994] CT19#,ET196,ST19# BLACK,TRIM2# |
64746-21010-C0 |
US $15.14 |
||
| replacement | |||||
|
64746
|
64746
64746-21010-B0 Cover, Rear Combination Lamp Service, Lh[11.1992 - 02.1994] CT19#,ET196,ST19# BLACK,TRIM2# |
64746-21010-B0 |
US $15.14 |
||
|
64795A
|
64795A
64795-21010 Trim, Back Window Opening[11.1992 -] AT191,CT19#,ET196,ST19# ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
64795-21010 |
US $54.02 |
||
|
67751
|
67751
67750-21010-B0 Board, Back Door Trim[02.1994 -] AT191,CT19#,ET196,ST19# ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ),SHADOW GRAY,TRIM1# |
67750-21010-B0 |
US $147.06 |
||
|
67751
|
67751
67750-21010-C0 Board, Back Door Trim[11.1992 - 02.1994] CT19#,ET196,ST19# ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ),BLACK,TRIM2# |
67750-21010-C0 |
US $147.06 |
||
| replacement | |||||
|
67751
|
67751
67750-21010-B0 Board, Back Door Trim[11.1992 - 02.1994] CT19#,ET196,ST19# ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ),BLACK,TRIM2# |
67750-21010-B0 |
US $147.06 |
||
|
67751A
|
67751A
90467-10170-B0 Clip(For Back Door Trim Board)[02.1994 -] AT191,CT19#,ET196,ST19# ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ),SHADOW GRAY,TRIM1# |
90467-10170-B0 |
US $2.56 |
||
|
67751A
|
67751A
90467-10170-C0 Clip(For Front Fender Apron Seal)[11.1992 - 02.1994] CT19#,ET196,ST19# ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ),BLACK,TRIM2# |
90467-10170-C0 |
from US $1.01 |
||
|
6777116170
|
6777116170
67771-16170 Retainer, Door Trim, Rh |
67771-16170 |
US $2.56 |
||
|
6777130070
|
6777130070
67771-30070 Retainer(For Deck Side Trim Panel) |
67771-30070 |
US $3.04 |
||
|
6792150030
|
6792150030
67921-50030 Retainer, Front Door Scuff Plate |
67921-50030 |
US $2.72 |
||
