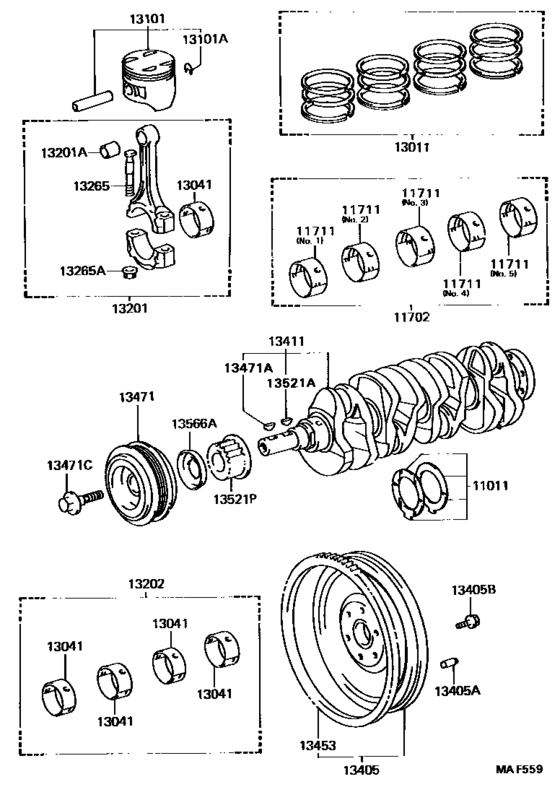

Crankshaft & Piston ([11.1992 - 01.1996] (9211-9601)3S#,4SFE ; (9601-9708)3SGE) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-74020
Washer Set, Crankshaft Thrust
[11.1992 -] 3S#,4SFE..ST19# ＳＴＤ |
11011-74020 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-74031 Washer Set, Crankshaft Thrust[11.1992 -] 3S#,4SFE..ST19# ＳＴＤ |
11011-74031 |
from US $31.46 |
||
|
11702
|
11702
11704-63021
Bearing Set, Crankshaft (US 0.25)
[11.1992 -] 3SFE,4SFE..ST19# Ｕ／Ｓ ０．２５ |
11704-63021 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-63022 Bearing Set, Crankshaft (US 0.25)[11.1992 -] 3SFE,4SFE..ST19# Ｕ／Ｓ ０．２５ |
11704-63022 |
US $206.17 |
||
|
11711
|
11711
11071-63020-01
Bearing, Crankshaft
[11.1992 -] 3SFE,4SFE..ST19# MARK 1,ＮＯ．３ |
11071-63020-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-63021-01
Bearing, Crankshaft
[11.1992 -] 3SFE,4SFE..ST19# MARK 1,ＮＯ．３ |
11071-63021-01 |
— | ||
|
11711
|
11711
11071-63020-02
Bearing, Crankshaft
[11.1992 -] 3SFE,4SFE..ST19# MARK 2,ＮＯ．３ |
11071-63020-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-63021-02
Bearing, Crankshaft
[11.1992 -] 3SFE,4SFE..ST19# MARK 2,ＮＯ．３ |
11071-63021-02 |
— | ||
|
11711
|
11711
11071-63020-03
Bearing, Crankshaft
[11.1992 -] 3SFE,4SFE..ST19# MARK 3,ＮＯ．３ |
11071-63020-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-63021-03 Bearing, Crankshaft[11.1992 -] 3SFE,4SFE..ST19# MARK 3,ＮＯ．３ |
11071-63021-03 |
US $53.14 |
||
|
11711
|
11711
11071-63020-04 Bearing, Crankshaft[11.1992 -] 3SFE,4SFE..ST19# MARK 4,ＮＯ．３ |
11071-63020-04 |
US $49.65 |
||
| replacement | |||||
|
11711
|
11711
11071-63021-04 Bearing, Crankshaft[11.1992 -] 3SFE,4SFE..ST19# MARK 4,ＮＯ．３ |
11071-63021-04 |
US $53.14 |
||
|
11711
|
11711
11071-63020-05 Bearing, Crankshaft[11.1992 -] 3SFE,4SFE..ST19# MARK 5,ＮＯ．３ |
11071-63020-05 |
US $49.65 |
||
| replacement | |||||
|
11711
|
11711
11071-63021-05 Bearing, Crankshaft[11.1992 -] 3SFE,4SFE..ST19# MARK 5,ＮＯ．３ |
11071-63021-05 |
US $53.14 |
||
|
11711
|
11711
11701-63021-01 Bearing, Crankshaft[11.1992 -] 3SFE,4SFE..ST19# MARK 1,NO.1,2,4,5 |
11701-63021-01 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-01 Bearing, Crankshaft[11.1992 -] 3SFE,4SFE..ST19# MARK 1,NO.1,2,4,5 |
11701-63022-01 |
US $49.80 |
||
|
11711
|
11711
11701-63021-02 Bearing, Crankshaft[11.1992 -] 3SFE,4SFE..ST19# MARK 2,NO.1,2,4,5 |
11701-63021-02 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-02 Bearing, Crankshaft[11.1992 -] 3SFE,4SFE..ST19# MARK 2,NO.1,2,4,5 |
11701-63022-02 |
US $49.80 |
||
|
11711
|
11711
11701-63021-03 Bearing, Crankshaft[11.1992 -] 3SFE,4SFE..ST19# MARK 3,NO.1,2,4,5 |
11701-63021-03 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-03 Bearing, Crankshaft[11.1992 -] 3SFE,4SFE..ST19# MARK 3,NO.1,2,4,5 |
11701-63022-03 |
US $48.40 |
||
|
11711
|
11711
11701-63021-04 Bearing, Crankshaft[11.1992 -] 3SFE,4SFE..ST19# MARK 4,NO.1,2,4,5 |
11701-63021-04 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-04 Bearing, Crankshaft[11.1992 -] 3SFE,4SFE..ST19# MARK 4,NO.1,2,4,5 |
11701-63022-04 |
US $49.80 |
||
|
11711
|
11711
11701-63021-05 Bearing, Crankshaft[11.1992 -] 3SFE,4SFE..ST19# MARK 5,NO.1,2,4,5 |
11701-63021-05 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-05 Bearing, Crankshaft[11.1992 -] 3SFE,4SFE..ST19# MARK 5,NO.1,2,4,5 |
11701-63022-05 |
US $49.80 |
||
|
13011
|
13011
13011-74121
Ring Set, Piston
[11.1992 - 01.1996] 4SFE..ST190 ＳＴＤ |
13011-74121 |
— | ||
|
13011
|
13011
13013-74121 Ring Set, Piston[11.1992 - 01.1996] 4SFE..ST190 Ｏ／Ｓ ０．５０ |
13013-74121 |
US $130.05 |
||
|
13011
|
13011
13014-74121 Ring Set, Piston[11.1992 - 01.1996] 4SFE..ST190 Ｏ／Ｓ ０．７５ |
13014-74121 |
US $138.32 |
||
|
13041
|
13041
13041-74030-01 Bearing, Connecting Rod[11.1992 - 08.1996] 3SFE,4SFE..ST19# MARK 1 |
13041-74030-01 |
US $28.39 |
||
| replacement | |||||
|
13041
|
13041
13041-74041-01 Bearing, Connecting Rod[11.1992 - 08.1996] 3SFE,4SFE..ST19# MARK 1 |
13041-74041-01 |
from US $14.18 |
||
|
13041
|
13041
13041-74030-02 Bearing, Connecting Rod[11.1992 - 08.1996] 3SFE,4SFE..ST19# MARK 2 |
13041-74030-02 |
US $28.39 |
||
| replacement | |||||
|
13041
|
13041
13041-74041-02 Bearing, Connecting Rod[11.1992 - 08.1996] 3SFE,4SFE..ST19# MARK 2 |
13041-74041-02 |
from US $13.71 |
||
|
13041
|
13041
13041-74030-03 Bearing, Connecting Rod[11.1992 - 08.1996] 3SFE,4SFE..ST19# MARK 3 |
13041-74030-03 |
US $28.39 |
||
| replacement | |||||
|
13041
|
13041
13041-74041-03 Bearing, Connecting Rod[11.1992 - 08.1996] 3SFE,4SFE..ST19# MARK 3 |
13041-74041-03 |
from US $14.39 |
||
|
13101
|
13101
13101-74160-01 Piston Sub-Assy, W/pin[11.1992 - 01.1996] 4SFE..ST190 ＳＴＤ,MARK 1 |
13101-74160-01 |
US $101.92 |
||
|
13101
|
13101
13101-74160-02 Piston Sub-Assy, W/pin[11.1992 - 01.1996] 4SFE..ST190 ＳＴＤ,MARK 2 |
13101-74160-02 |
US $101.92 |
||
|
13101
|
13101
13101-74160-03 Piston Sub-Assy, W/pin[11.1992 - 01.1996] 4SFE..ST190 ＳＴＤ,MARK 3 |
13101-74160-03 |
US $101.92 |
||
|
13101
|
13101
13103-74160 Piston Sub-Assy, W/pin[11.1992 - 01.1996] 4SFE..ST190 Ｏ／Ｓ ０．５０ |
13103-74160 |
US $101.92 |
||
|
13101
|
13101
13104-74160 Piston Sub-Assy, W/pin[11.1992 - 01.1996] 4SFE..ST190 Ｏ／Ｓ ０．７５ |
13104-74160 |
US $104.83 |
||
|
13101A
|
13101A
90521-25004
Ring, Hole Snap(For Piston Pin)
[11.1992 - 02.1995] 3SFE,4SFE..ST19# |
90521-25004 |
— | ||
| replacement | |||||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[11.1992 - 02.1995] 3SFE,4SFE..ST19# |
90520-22025 |
from US $1.76 |
||
|
13201
|
13201
13201-79146 Rod Sub-Assy, Connecting[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
13201-79146 |
US $288.29 |
||
| replacement | |||||
|
13201
|
13201
13201-79215 Rod Sub-Assy, Connecting[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
13201-79215 |
US $227.14 |
||
|
13201A
|
13201A
90999-73112 Bush(For Connecting Rod Small End)[11.1992 - 02.1995] 3SFE,4SFE..ST19# |
90999-73112 |
US $3.32 |
||
|
13202
|
13202
13204-74030 Bearing Set, Connecting Rod[11.1992 - 08.1996] 3SFE,4SFE..ST19# Ｕ／Ｓ ０．２５ |
13204-74030 |
US $149.97 |
||
| replacement | |||||
|
13202
|
13202
13204-74041 Bearing Set, Connecting Rod (US 0.25)[11.1992 - 08.1996] 3SFE,4SFE..ST19# Ｕ／Ｓ ０．２５ |
13204-74041 |
US $99.59 |
||
|
13265
|
13265
13265-62030
Bolt, Connecting Rod
[11.1992 -] 3SFE,4SFE..ST19# |
13265-62030 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-74030 Bolt, Connecting Rod[11.1992 -] 3SFE,4SFE..ST19# |
13265-74030 |
from US $3.98 |
||
|
13265A
|
13265A
90179-08118 Nut, Hexagon(For Connecting Rod Bolt)[11.1992 -] 3SFE,4SFE..ST19# |
90179-08118 |
from US $1.31 |
||
|
13411
|
13411
13411-74908 Crankshaft[11.1992 -] 3SFE,4SFE..ST19# |
13411-74908 |
US $1,343.89 |
||
|
13471
|
13471
13408-74041
Pulley, Crankshaft
[11.1992 - 01.1996] 4SFE..ST190 |
13408-74041 |
— | ||
| replacement | |||||
|
13471
|
13471
13408-74031 Pulley, Crankshaft[11.1992 - 01.1996] 4SFE..ST190 |
13408-74031 |
from US $200.25 |
||
|
13471A
|
13471A
90280-05005 Key(For Oil Pump Drive Spline)[11.1992 -] 3S#,4SFE..ST19# |
90280-05005 |
from US $0.98 |
||
|
13471C
|
13471C
90119-14015 Bolt(For Crankshaft Pulley Set)[11.1992 - 08.1997] 3SGE,4SFE..ST190,195 |
90119-14015 |
from US $7.53 |
||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[11.1992 -] 5EFE..ET196; 3S#,4SFE..ST19# |
90280-05005 |
from US $0.98 |
||
|
13521P
|
13521P
13521-74020 Pulley, Crankshaft Timing[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
13521-74020 |
US $29.27 |
||
| replacement | |||||
|
13521P
|
13521P
13521-74040 Pulley, Crankshaft Timing[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
13521-74040 |
from US $26.68 |
||
|
13566A
|
13566A
13567-74010 Guide, Timing Belt[11.1992 -] 3SFE,4SFE..ST19# |
13567-74010 |
US $11.88 |
||
