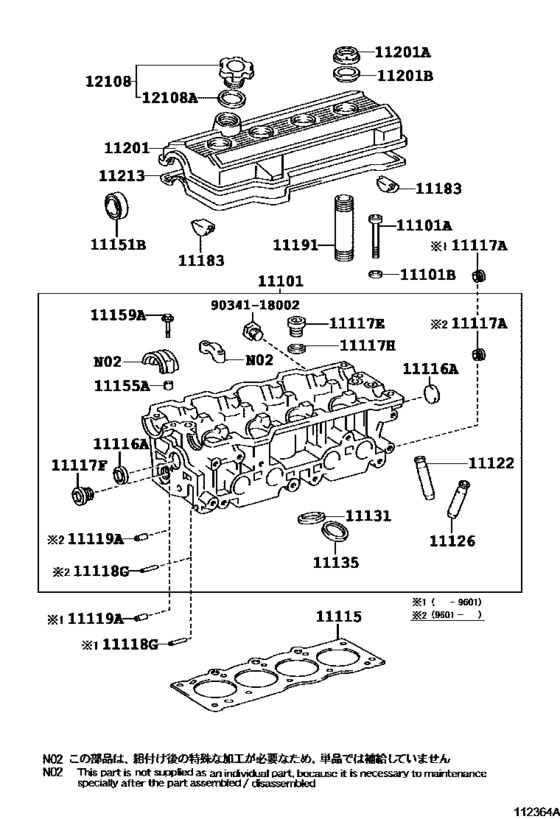

Cylinder Head ([11.1992 - 01.1996] (9211-9601)3SFE,4SFE) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-79165 Head Sub-Assy, Cylinder[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
11101-79165 |
US $1,790.88 |
||
| replacement | |||||
|
11101
|
11101
11101-79175 Head Sub-Assy, Cylinder[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
11101-79175 |
US $1,994.72 |
||
|
11101A
|
11101A
90109-10132 Bolt(For Cylinder Head Set)[11.1992 -] 3SFE,4SFE..ST19# |
90109-10132 |
from US $4.64 |
||
|
11101B
|
11101B
90201-11026 Washer, Plate(For Cylinder Head Set)[11.1992 -] 3SFE,4SFE..ST19# |
90201-11026 |
US $3.52 |
||
|
11115
|
11115
11115-74060 Gasket, Cylinder Head[11.1992 - 01.1996] 4SFE..ST190 厚さ＝１．２５ |
11115-74060 |
US $81.54 |
||
|
11116A
|
11116A
96411-42800 Plug, Tight, No.1[11.1992 -] 3SFE,4SFE..ST19# |
96411-42800 |
from US $2.91 |
||
|
11117A
|
11117A
90344-53011 Plug, W/head Taper Screw, No.1[11.1992 -] 3SFE,4SFE..ST19# |
90344-53011 |
US $3.84 |
||
|
11117E
|
11117E
90341-24090 Plug, W/head Taper Screw, No.1[11.1992 -] 3SFE,4SFE..ST19# |
90341-24090 |
US $4.89 |
||
|
11117F
|
11117F
90341-32031 Plug, W/head Straight Screw, No.2[11.1992 -] 3SFE,4SFE..ST19# |
90341-32031 |
US $7.16 |
||
|
11117H
|
11117H
90430-24246 Gasket(For Cylinder Head Screw Plug)[11.1992 -] 3SFE,4SFE..ST19# |
90430-24246 |
from US $1.15 |
||
|
11118G
|
11118G
90249-06084 Pin, Slotted Spring, No.1[11.1992 -] 3SFE,4SFE..ST19# |
90249-06084 |
US $2.18 |
||
|
11119A
|
11119A
90250-06003 Pin, Straight[11.1992 -] 3S#,4SFE..ST19# 長さ＝１４，外径＝６ |
90250-06003 |
US $1.44 |
||
|
11122
|
11122
11122-74030 Bush, Intake Valve Guide[11.1992 -] 3SFE,4SFE..ST19# ＳＴＤ |
11122-74030 |
US $8.80 |
||
|
11122
|
11122
11123-74030 Bush, Intake Valve Guide[11.1992 -] 3SFE,4SFE..ST19# Ｏ／Ｓ ０．０５ |
11123-74030 |
US $7.86 |
||
|
11126
|
11126
11122-16010
Bush, Intake Valve Guide
[11.1992 -] 3SFE,4SFE..ST19# ＳＴＤ |
11122-16010 |
— | ||
| replacement | |||||
|
11126
|
11126
11122-16020 Bush, Intake Valve Guide[11.1992 -] 3SFE,4SFE..ST19# ＳＴＤ |
11122-16020 |
US $13.92 |
||
|
11126
|
11126
11123-16010 Bush, Intake Valve Guide[11.1992 -] 3SFE,4SFE..ST19# Ｏ／Ｓ ０．０５ |
11123-16010 |
US $11.36 |
||
|
11131
|
11131
11131-74020 Seat, Intake Valve[11.1992 -] 3SFE,4SFE..ST19# ＳＴＤ |
11131-74020 |
US $38.88 |
||
|
11131
|
11131
11132-74020 Seat, Intake Valve[11.1992 -] 3SFE,4SFE..ST19# Ｏ／Ｓ ０．０３ |
11132-74020 |
US $17.76 |
||
|
11135
|
11135
11135-74030 Seat, Exhaust Valve[11.1992 -] 3SFE,4SFE..ST19# ＳＴＤ |
11135-74030 |
US $15.29 |
||
|
11135
|
11135
11136-74030 Seat, Exhaust Valve[11.1992 -] 3SFE,4SFE..ST19# Ｏ／Ｓ ０．０３ |
11136-74030 |
US $9.46 |
||
|
11151B
|
11151B
90311-38046
Seal, Oil(For Camshaft Setting)
[11.1992 - 08.1997] 3SFE,4SFE..ST19# |
90311-38046 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-38067 Seal, Oil(For Camshaft Setting)[11.1992 - 08.1997] 3SFE,4SFE..ST19# |
90311-38067 |
US $6.40 |
||
|
11155A
|
11155A
90253-10004 Pin, Ring W/head[11.1992 -] 3S#,4SFE..ST19# |
90253-10004 |
US $1.92 |
||
|
11159A
|
11159A
90119-07009 Bolt(For Camshaft Housing Set)[11.1992 -] 3SFE,4SFE..ST19# |
90119-07009 |
from US $0.86 |
||
|
11183
|
11183
11183-74010 Plug, Semicircular[11.1992 -] 3SFE,4SFE..ST19# |
11183-74010 |
US $9.76 |
||
|
11191
|
11191
11191-74030 Tube, Spark Plug[11.1992 -] 3SFE,4SFE..ST19# |
11191-74030 |
from US $14.78 |
||
|
11201
|
11201
11201-74050
Cover Sub-Assy, Cylinder Head
[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
11201-74050 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-74051
Cover Sub-Assy, Cylinder Head
[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
11201-74051 |
— | ||
|
11201A
|
11201A
90179-28004 Nut, Cap(For Cylinder Head Cover)[11.1992 -] 3SFE,4SFE..ST19# |
90179-28004 |
US $3.68 |
||
|
11201B
|
11201B
90480-30025 Washer, Seal(For Cylinder Head Cover)[11.1992 -] 3SFE,4SFE..ST19# |
90480-30025 |
from US $4.13 |
||
|
11213
|
11213
11213-74020 Gasket, Cylinder Head Cover[11.1992 -] 3SFE,4SFE..ST19# |
11213-74020 |
from US $17.30 |
||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[11.1992 - 12.1993] 2C..CT19#; 5EFE..ET196; 3SFE,4SFE..ST19# |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[11.1992 - 12.1993] 2C..CT19#; 5EFE..ET196; 3SFE,4SFE..ST19# |
12180-55010 |
from US $10.08 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[12.1993 -] 2C#,3CE..CT19#; 5EFE..ET196; 3S#,4SFE..ST19# |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[11.1992 -] 2C#,3CE..CT19#; 5EFE..ET196; 3S#,4SFE..ST19# |
90430-37140 |
from US $1.25 |
||
|
9034118002
|
9034118002
90341-18002 Plug, No.1 |
90341-18002 |
from US $3.76 |
||
