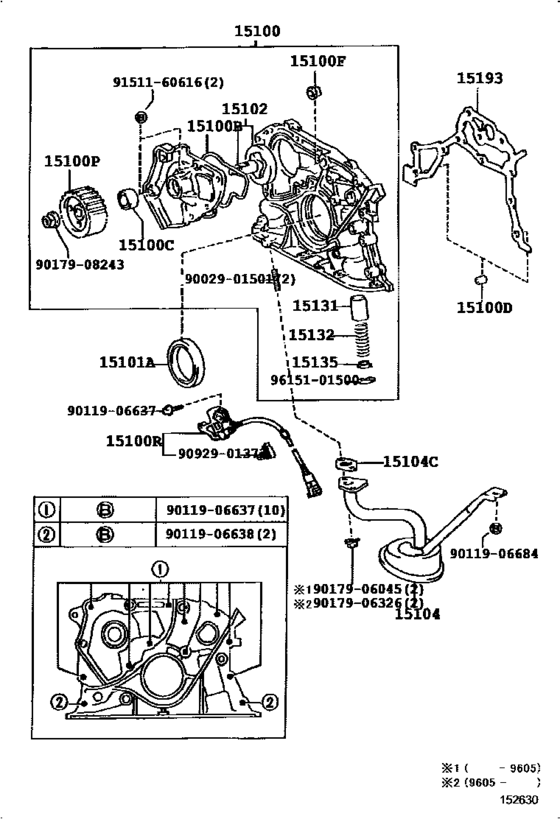

Engine Oil Pump ([08.1995 - ] (9508- )3SFE,4SFE) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-74010
Pump Assy, Oil
[11.1992 - 08.1995] 3SFE,4SFE..ST19# |
15100-74010 |
— | ||
| replacements | |||||
|
15100
|
15100
15100-74060 Pump Assy, Oil[11.1992 - 08.1995] 3SFE,4SFE..ST19# |
15100-74060 |
from US $99.18 |
||
|
15100
|
15100
15197-74040 Gasket, Oil Pump[11.1992 - 08.1995] 3SFE,4SFE..ST19# |
15197-74040 |
from US $10.24 |
||
|
15100
|
15100
15100-74060 Pump Assy, Oil[08.1995 - 01.1996] 3SFE,4SFE..ST19# |
15100-74060 |
from US $99.18 |
||
|
15100B
|
15100B
15188-63010 Ring, O(For Oil Pump)[11.1992 - 04.1993] 3SFE,4SFE..ST19# |
15188-63010 |
US $16.26 |
||
|
15100B
|
15100B
15188-88382
Ring, O(For Oil Pump)
[04.1993 - 08.1996] 3S#,4SFE..ST19# |
15188-88382 |
— | ||
| replacement | |||||
|
15100B
|
15100B
15188-74050 Ring, O(For Oil Pump)[04.1993 - 08.1996] 3S#,4SFE..ST19# |
15188-74050 |
from US $7.92 |
||
|
15100C
|
15100C
15165-70010 Seal(For Oil Pump)[11.1992 - 04.1993] 3SFE,4SFE..ST19# |
15165-70010 |
from US $7.53 |
||
|
15100C
|
15100C
15165-74020 Seal(For Oil Pump)[04.1993 -] 3SFE,4SFE..ST19# |
15165-74020 |
from US $7.76 |
||
|
15100D
|
15100D
90253-09001 Pin, Ring W/head[11.1992 -] 3S#,4SFE..ST19# |
90253-09001 |
US $2.40 |
||
|
15100F
|
15100F
90029-38302 Bush (For Oil Pump)[11.1992 - 01.1996] 3S#,4SFE..ST19# |
90029-38302 |
US $2.62 |
||
|
15100P
|
15100P
13524-74020 Pulley, Oil Pump Drive Shaft[11.1992 -] 3SFE,4SFE..ST19# |
13524-74020 |
US $19.66 |
||
|
15101A
|
15101A
90311-42026 Seal, Oil(For Timing Gear Case Or Timing Chain Case)[11.1992 - 09.1996] 3S#,4SFE..ST19# |
90311-42026 |
from US $5.60 |
||
|
15102
|
15102
15102-63010 Rotor Set, Oil Pump[11.1992 -] 3SFE,4SFE..ST19# |
15102-63010 |
from US $43.58 |
||
|
15104
|
15104
15104-88380
Strainer Sub-Assy, Oil
[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
15104-88380 |
— | ||
|
15104C
|
15104C
15149-74020 Gasket(For Oil Strainer)[11.1992 - 09.1993] 3SFE,4SFE..ST19# |
15149-74020 |
from US $4 |
||
|
15104C
|
15104C
15149-74030 Gasket(For Oil Strainer)[09.1993 -] 3SFE,4SFE..ST19# |
15149-74030 |
US $7.68 |
||
|
15131
|
15131
15131-24010 Valve, Oil Pump Relief[11.1992 -] 3SFE,4SFE..ST19# |
15131-24010 |
from US $4.19 |
||
|
15132
|
15132
15132-40010 Spring, Oil Pump Relief Valve[11.1992 -] 3SFE,4SFE..ST19# |
15132-40010 |
US $5.12 |
||
|
15135
|
15135
15135-15010 Retainer, Oil Pump Relief Valve[11.1992 -] 3SFE,4SFE..ST19# |
15135-15010 |
US $4.80 |
||
|
15193
|
15193
15197-63021 Gasket, Oil Pump[11.1992 - 09.1993] 3SFE,4SFE..ST19# |
15197-63021 |
from US $8.47 |
||
|
15193
|
15193
15197-74030 Gasket, Oil Pump[09.1993 - 08.1995] 3SFE,4SFE..ST19# |
15197-74030 |
US $12.93 |
||
|
15193
|
15193
15197-74040 Gasket, Oil Pump[08.1995 -] 3SFE,4SFE..ST19# |
15197-74040 |
from US $10.24 |
||
|
9002901501
|
9002901501
90029-01501 Bolt,stud(For Oil Pump) |
90029-01501 |
US $1.60 |
||
|
9011906637
|
9011906637
90119-06637 Bolt(For Cylinder Head Cover) |
90119-06637 |
US $1.92 |
||
|
9011906638
|
9011906638
90119-06638 New Genuine Part |
90119-06638 |
US $1.60 |
||
|
9011906684
|
9011906684
90119-06684 New Genuine Part |
90119-06684 |
US $0.96 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $1.92 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.70 |
||
| replacement | |||||
|
9017906326
|
9017906326
90182-A0010 New Genuine Part |
90182-A0010 |
US $2.13 |
||
|
9017908243
|
9017908243
90179-08243 New Genuine Part |
90179-08243 |
US $2.08 |
||
|
9092901373
|
9092901373
90929-01373 New Genuine Part |
90929-01373 |
US $2.48 |
||
|
9151160616
|
9151160616
91511-60616
BOLTFLANGE
|
91511-60616 |
— | ||
| replacement | |||||
|
9151160616
|
9151160616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $1.76 |
||
|
9615101500
|
9615101500
96151-01500 Ring, Hole Snap (For Pressure Regulator Valve Set) |
96151-01500 |
US $2.72 |
||
