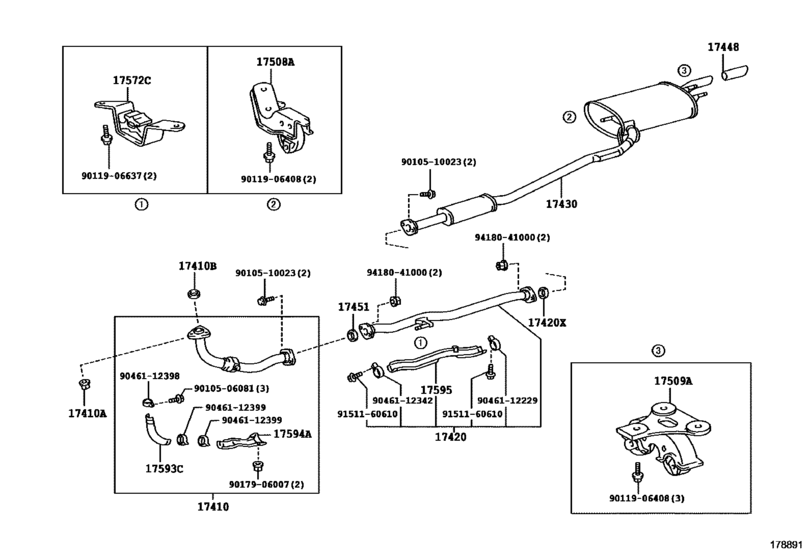

Exhaust Pipe ([11.1992 - 01.1996] (9211-9601)4SFE) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-7A080 Pipe Assy, Exhaust, Front[11.1992 - 01.1996] 4SFE..ST190 |
17410-7A080 |
US $228.59 |
||
| replacement | |||||
|
17410
|
17410
17410-7A081 Pipe Assy, Exhaust, Front[11.1992 - 01.1996] 4SFE..ST190 |
17410-7A081 |
US $251.89 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[11.1992 - 12.1996] 3S#,4SFE..ST19# |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[11.1992 - 12.1996] 3S#,4SFE..ST19# |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06066 Gasket, Exhaust Pipe[11.1992 - 12.1996] 3S#,4SFE..ST190,195 |
90917-06066 |
from US $5.05 |
||
|
17420
|
17420
17420-74660 Pipe Assy, Exhaust, Center[11.1992 - 07.1994] 4SFE..ST190 |
17420-74660 |
US $260.62 |
||
| replacements | |||||
|
17420
|
17420
17420-74661 Pipe Assy, Exhaust, Center[11.1992 - 07.1994] 4SFE..ST190 |
17420-74661 |
US $262.08 |
||
|
17420
|
17420
17571-74430 Bracket, Exhaust Pipe Front (For Front)[11.1992 - 07.1994] 4SFE..ST190 |
17571-74430 |
US $14.41 |
||
|
17420
|
17420
17420-74661 Pipe Assy, Exhaust, Center[07.1994 - 01.1996] 4SFE..ST190 |
17420-74661 |
US $262.08 |
||
|
17420X
|
17420X
90917-06046 Gasket, Exhaust Pipe[11.1992 - 01.1996] 4SFE..ST190 |
90917-06046 |
from US $9.28 |
||
|
17430
|
17430
17430-7A170 Pipe Assy, Exhaust, Tail[11.1992 - 05.1993] 4SFE..ST190 |
17430-7A170 |
US $548.91 |
||
|
17430
|
17430
17430-7A390 Pipe Assy, Exhaust, Tail[05.1993 - 01.1996] 4SFE..ST190 |
17430-7A390 |
US $547.46 |
||
|
17448
|
17448
17448-43020
Baffle, Tail Pipe
[11.1992 - 02.1995] 2C,3SFE,4SFE..CT190,ST19# |
17448-43020 |
— | ||
|
17451
|
17451
90917-06046 Gasket, Exhaust Pipe[11.1992 -] 7AFE,3SFE,4SFE..AT191,ST190,195,198 |
90917-06046 |
from US $9.28 |
||
|
17508A
|
17508A
17508-74030
Bracket Sub-Assy, Exhaust Pipe No.3 Support
[11.1992 - 01.1996] 2C,3SFE,4SFE..CT190,ST190,191 |
17508-74030 |
— | ||
|
17509A
|
17509A
17509-74110
Bracket Sub-Assy, Exhaust Pipe No.4 Support
[11.1992 - 01.1996] 2C,3S#,4SFE..CT190,ST19# |
17509-74110 |
— | ||
|
17572C
|
17572C
17571-74331 Bracket, Exhaust Pipe Front (For Front)[11.1992 - 05.1993] 5EFE,3SFE,4SFE..ET196,ST190,191 |
17571-74331 |
US $16.60 |
||
| replacement | |||||
|
17572C
|
17572C
17571-74333 Bracket, Exhaust Pipe Front (For Front)[11.1992 - 05.1993] 5EFE,3SFE,4SFE..ET196,ST190,191 |
17571-74333 |
US $16.60 |
||
|
17572C
|
17572C
17571-74332 Bracket, Exhaust Pipe Front (For Front)[05.1993 - 10.1993] 5EFE,3SFE,4SFE..ET196,ST190,191 |
17571-74332 |
US $16.60 |
||
| replacement | |||||
|
17572C
|
17572C
17571-74333 Bracket, Exhaust Pipe Front (For Front)[05.1993 - 10.1993] 5EFE,3SFE,4SFE..ET196,ST190,191 |
17571-74333 |
US $16.60 |
||
|
17572C
|
17572C
17571-74333 Bracket, Exhaust Pipe Front (For Front)[10.1993 - 07.1994] 5EFE,3SFE,4SFE..ET196,ST190,191 |
17571-74333 |
US $16.60 |
||
|
17572C
|
17572C
17571-74430 Bracket, Exhaust Pipe Front (For Front)[07.1994 -] 7AFE,5EFE,3SFE,4SFE..AT191,ET196,ST190,191 |
17571-74430 |
US $14.41 |
||
|
17593C
|
17593C
17593-74490 Protector, Exhaust Pipe, Lower No.1[11.1992 - 01.1996] 4SFE..ST190 |
17593-74490 |
US $26.35 |
||
|
17594A
|
17594A
17594-74420 Protector, Exhaust Pipe, Lower No.2[11.1992 - 01.1996] 4SFE..ST190 |
17594-74420 |
US $27.23 |
||
|
17595
|
17595
17595-74330 Protector, Exhaust Pipe, Lower No.3[11.1992 - 01.1996] 4SFE..ST190 |
17595-74330 |
US $56.64 |
||
|
9010506081
|
9010506081
90105-06081
BOLT FLANGE
|
90105-06081 |
— | ||
| replacement | |||||
|
9010506081
|
9010506081
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9011906408
|
9011906408
90119-06408 New Genuine Part |
90119-06408 |
US $1.92 |
||
|
9011906637
|
9011906637
90119-06637 Bolt(For Cylinder Head Cover) |
90119-06637 |
US $1.92 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9046112229
|
9046112229
90461-12229 Clamp |
90461-12229 |
US $6.08 |
||
|
9046112342
|
9046112342
90461-12342 New Genuine Part |
90461-12342 |
US $6.12 |
||
|
9046112398
|
9046112398
90461-12398 New Genuine Part |
90461-12398 |
US $5.68 |
||
|
9046112399
|
9046112399
90461-12399 New Genuine Part |
90461-12399 |
US $9.46 |
||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.76 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
