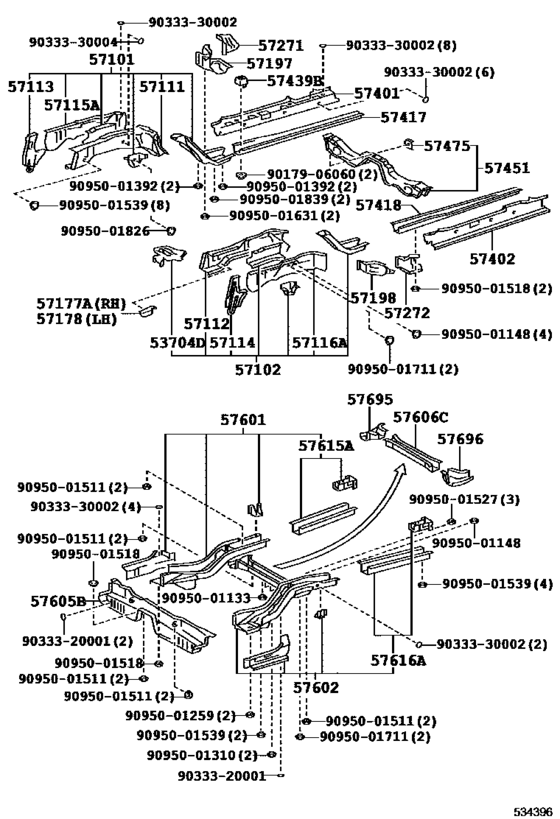

Floor Side Member ([11.1992 - 01.1996] (9211-9601)CT190,ST19#) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53704D
|
53704D
53704-20010 Support Sub-Assy, Battery, Lh[11.1992 - 01.1996] CT19#,ET196,ST19# |
53704-20010 |
US $41.93 |
||
|
57101
|
57101
57101-20915 Member Sub-Assy, Front Side, Rh[11.1992 - 01.1996] CT19#,ET196,ST19# |
57101-20915 |
US $605.70 |
||
| replacement | |||||
|
57101
|
57101
57101-20931 Member Sub-Assy, Front Side, Rh[11.1992 - 01.1996] CT19#,ET196,ST19# |
57101-20931 |
US $610.06 |
||
|
57102
|
57102
57102-20912 Member Sub-Assy, Front Side, Lh[11.1992 - 01.1996] CT190,196,ST190,191 |
57102-20912 |
US $639.18 |
||
| replacement | |||||
|
57102
|
57102
57102-20928 Member Sub-Assy, Front Side, Lh[11.1992 - 01.1996] CT190,196,ST190,191 |
57102-20928 |
US $640.64 |
||
|
57111
|
57111
57111-20220 Member, Front Side, Rh[11.1992 - 12.1995] CT19#,ET196,ST19# |
57111-20220 |
US $206.75 |
||
| replacement | |||||
|
57111
|
57111
57111-20270 Member, Front Side, Rh[11.1992 - 12.1995] CT19#,ET196,ST19# |
57111-20270 |
US $202.38 |
||
|
57111
|
57111
57111-20260 Member, Front Side, Rh[12.1995 - 01.1996] CT19#,ET196,ST19# |
57111-20260 |
US $202.38 |
||
| replacement | |||||
|
57111
|
57111
57111-20270 Member, Front Side, Rh[12.1995 - 01.1996] CT19#,ET196,ST19# |
57111-20270 |
US $202.38 |
||
|
57112
|
57112
57112-20240 Member, Front Side, Lh[11.1992 - 12.1995] CT19#,ET196,ST19# |
57112-20240 |
US $206.75 |
||
| replacement | |||||
|
57112
|
57112
57112-20281 Member, Front Side, Lh[11.1992 - 12.1995] CT19#,ET196,ST19# |
57112-20281 |
US $202.38 |
||
|
57112
|
57112
57112-20270 Member, Front Side, Lh[12.1995 - 01.1996] CT19#,ET196,ST19# |
57112-20270 |
US $202.38 |
||
| replacement | |||||
|
57112
|
57112
57112-20281 Member, Front Side, Lh[12.1995 - 01.1996] CT19#,ET196,ST19# |
57112-20281 |
US $202.38 |
||
|
57113
|
57113
57113-20150 Extension, Front Side Member, Rh[11.1992 - 01.1995] CT19#,ET196,ST19# |
57113-20150 |
US $50.38 |
||
| replacement | |||||
|
57113
|
57113
57113-20151 Extension, Front Side Member, Rh[11.1992 - 01.1995] CT19#,ET196,ST19# |
57113-20151 |
US $50.52 |
||
|
57113
|
57113
57113-20151 Extension, Front Side Member, Rh[01.1995 - 01.1996] CT19#,ET196,ST19# |
57113-20151 |
US $50.52 |
||
|
57114
|
57114
57114-20120 Extension, Front Side Member, Lh[11.1992 - 01.1995] CT19#,ET196,ST19# |
57114-20120 |
US $50.38 |
||
| replacement | |||||
|
57114
|
57114
57114-20121 Extension, Front Side Member, Lh[11.1992 - 01.1995] CT19#,ET196,ST19# |
57114-20121 |
US $50.52 |
||
|
57114
|
57114
57114-20121 Extension, Front Side Member, Lh[01.1995 - 01.1996] CT19#,ET196,ST19# |
57114-20121 |
US $50.52 |
||
|
57115A
|
57115A
57115-20150 Plate, Front Side Member, Outer Rh[11.1992 - 02.1995] CT19#,ET196,ST19# |
57115-20150 |
US $81.54 |
||
| replacements | |||||
|
57115A
|
57115A
57115-20160 Plate, Front Side Member, Outer Rh[11.1992 - 02.1995] CT19#,ET196,ST19# |
57115-20160 |
US $81.54 |
||
|
57115A
|
57115A
90333-30002 Cover, Front Floor Hole[11.1992 - 02.1995] CT19#,ET196,ST19# |
90333-30002 |
from US $1.12 |
||
|
57115A
|
57115A
57115-20160 Plate, Front Side Member, Outer Rh[02.1995 - 01.1996] CT19#,ET196,ST19# |
57115-20160 |
US $81.54 |
||
|
57116A
|
57116A
57116-20170 Plate, Front Side Member, Outer Lh[11.1992 - 05.1995] CT19#,ET196,ST19# |
57116-20170 |
US $81.54 |
||
| replacements | |||||
|
57116A
|
57116A
57116-20181 Plate, Front Side Member, Outer Lh[11.1992 - 05.1995] CT19#,ET196,ST19# |
57116-20181 |
US $81.54 |
||
|
57116A
|
57116A
90333-30002 Cover, Front Floor Hole[11.1992 - 05.1995] CT19#,ET196,ST19# |
90333-30002 |
from US $1.12 |
||
|
57116A
|
57116A
57116-20181 Plate, Front Side Member, Outer Lh[05.1995 - 01.1996] CT19#,ET196,ST19# |
57116-20181 |
US $81.54 |
||
|
57177A
|
57177A
57177-20080 Plate, Front Side Member, No.7 Rh[12.1995 - 01.1996] CT19#,ET196,ST19# |
57177-20080 |
US $9.90 |
||
|
57178
|
57178
57178-20070 Plate, Front Side Member, No.7 Lh[12.1995 - 01.1996] CT19#,ET196,ST19# |
57178-20070 |
US $9.90 |
||
|
57197
|
57197
57197-20040 Box, Torque, Front Rh[11.1992 - 01.1996] CT19#,ET196,ST19# |
57197-20040 |
US $100.46 |
||
|
57198
|
57198
57198-20050 Box, Torque, Front Lh[11.1992 - 01.1996] CT19#,ET196,ST19# |
57198-20050 |
US $100.46 |
||
|
57271
|
57271
57271-20040 Extension, Steering Gear Box Support Member, Rh[11.1992 - 09.1995] CT19#,ET196,ST19# |
57271-20040 |
US $38 |
||
| replacement | |||||
|
57271
|
57271
57271-20041 Extension, Steering Gear Box Support Member, Rh[11.1992 - 09.1995] CT19#,ET196,ST19# |
57271-20041 |
US $38.15 |
||
|
57271
|
57271
57271-20041 Extension, Steering Gear Box Support Member, Rh[09.1995 - 01.1996] CT19#,ET196,ST19# |
57271-20041 |
US $38.15 |
||
|
57272
|
57272
57272-20040 Extension, Steering Gear Box Suport Member, Lh[11.1992 - 09.1995] CT19#,ET196,ST19# |
57272-20040 |
US $38 |
||
| replacement | |||||
|
57272
|
57272
57272-20041 Extension, Steering Gear Box Suport Member, Lh[11.1992 - 09.1995] CT19#,ET196,ST19# |
57272-20041 |
US $38.15 |
||
|
57272
|
57272
57272-20041 Extension, Steering Gear Box Suport Member, Lh[09.1995 - 01.1996] CT19#,ET196,ST19# |
57272-20041 |
US $38.15 |
||
|
57401
|
57401
57401-20280 Member Sub-Assy, Main Floor Side, Rh[11.1992 - 01.1996] CT19#,ET196,ST19# |
57401-20280 |
US $154.34 |
||
|
57402
|
57402
57402-20310 Member Sub-Assy, Main Floor Side, Lh[11.1992 - 01.1996] CT19#,ET196,ST19# |
57402-20310 |
US $154.34 |
||
|
57417
|
57417
57417-20080 Reinforcement, Front Floor Under, Rh[11.1992 - 01.1996] CT19#,ET196,ST19# |
57417-20080 |
US $94.64 |
||
|
57418
|
57418
57418-20070 Reinforcement, Front Floor Under, Lh[11.1992 - 01.1996] CT19#,ET196,ST19# |
57418-20070 |
US $94.64 |
||
|
57439B
|
57439B
57439-20010 Damper, Front Floor Crossmember Dynamic[11.1992 - 02.1995] CT190,ST19# |
57439-20010 |
US $110.66 |
||
|
57451
|
57451
57408-20900 Member, Front Floor Cross[11.1992 - 02.1995] CT19#,ET196,ST19# |
57408-20900 |
US $107.74 |
||
|
57475
|
57475
57475-32010 Plate, Front Floor Crossmember[11.1992 - 02.1995] CT19#,ET196,ST19# |
57475-32010 |
US $2.04 |
||
|
57601
|
57601
57601-21090 Member Sub-Assy, Rear Floor Side, Rh[11.1992 - 01.1996] CT190,ST190,191 |
57601-21090 |
US $512.51 |
||
|
57602
|
57602
57602-20390 Member Sub-Assy, Rear Floor Side, Lh[11.1992 - 10.1993] CT190,ST190,191 |
57602-20390 |
US $512.51 |
||
| replacement | |||||
|
57602
|
57602
57602-20380 Member Sub-Assy, Rear Floor Side, LhREAR FLOOR SIDE, LH [11.1992 - 10.1993] CT190,ST190,191 |
57602-20380 |
US $512.51 |
||
|
57602
|
57602
57602-21090 Member Sub-Assy, Rear Floor Side, Lh[10.1993 - 01.1996] CT190,ST190,191 |
57602-21090 |
US $451.36 |
||
|
57605B
|
57605B
57605-20100 Member Sub-Assy, Rear Floor Cross, No.1[11.1992 - 01.1996] CT190,ST19# |
57605-20100 |
US $253.34 |
||
|
57606C
|
57606C
57606-20140 Member Sub-Assy, Rear Floor Cross, No.2[11.1992 - 02.1994] CT190,ST190,191 |
57606-20140 |
US $215.49 |
||
| replacements | |||||
|
57606C
|
57606C
57606-20142 Member Sub-Assy, Rear Floor Cross, No.2[11.1992 - 02.1994] CT190,ST190,191 |
57606-20142 |
US $215.49 |
||
|
57606C
|
57606C
90333-30004 PLUG[11.1992 - 02.1994] CT190,ST190,191 |
90333-30004 |
US $0.96 |
||
|
57606C
|
57606C
57606-20142 Member Sub-Assy, Rear Floor Cross, No.2[02.1994 - 01.1996] CT190,ST190,191 |
57606-20142 |
US $215.49 |
||
|
57615A
|
57615A
57615-20909 Member, Rear Floor Side, Rear Rh[11.1992 - 01.1996] CT190,ST19# |
57615-20909 |
US $151.42 |
||
| replacements | |||||
|
57615A
|
57615A
57615-20918 Member, Rear Floor Side, Rear RhREAR FLOOR SIDE, REAR RH [11.1992 - 01.1996] CT190,ST19# |
57615-20918 |
US $149.97 |
||
|
57615A
|
57615A
90269-03067 RIVET[11.1992 - 01.1996] CT190,ST19# |
90269-03067 |
from US $0.88 |
||
|
57616A
|
57616A
57616-20908 Member, Rear Floor Side, Rear Lh[11.1992 - 01.1996] CT190,ST19# |
57616-20908 |
US $154.34 |
||
|
57695
|
57695
57695-20020 Extension, Rear Floor Cross Rear Side, Rh[11.1992 - 01.1996] CT190,ST190,191 |
57695-20020 |
US $63.80 |
||
|
57696
|
57696
57696-20020
Extension, Rear Floor Cross Rear Side, Lh
[11.1992 - 01.1996] CT190,ST190,191 |
57696-20020 |
— | ||
|
9017906060
|
9017906060
90179-06060 Nut, Wing(For Air Cleaner) |
90179-06060 |
US $2.08 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.12 |
||
|
9033330004
|
9033330004
90333-30004 PLUG |
90333-30004 |
US $0.96 |
||
|
9095001133
|
9095001133
90950-01133 Plug, Hole(For Front Fender Apron) |
90950-01133 |
from US $2.63 |
||
|
9095001148
|
9095001148
90950-01148 New Genuine Part |
90950-01148 |
US $1.60 |
||
|
9095001259
|
9095001259
90950-01259 PLUG |
90950-01259 |
from US $1.92 |
||
|
9095001310
|
9095001310
90950-01310 Plug, Hole |
90950-01310 |
from US $7.04 |
||
|
9095001392
|
9095001392
90950-01392 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01392 |
from US $1.21 |
||
|
9095001511
|
9095001511
90950-01511 New Genuine Part |
90950-01511 |
US $3.04 |
||
|
9095001518
|
9095001518
90950-01518 PLUG |
90950-01518 |
from US $1.23 |
||
|
9095001527
|
9095001527
90950-01527 PLUG |
90950-01527 |
US $1.76 |
||
|
9095001539
|
9095001539
90950-01539 PLUG HOLE |
90950-01539 |
from US $1.42 |
||
|
9095001631
|
9095001631
90950-01631 Plug Hole |
90950-01631 |
US $1.92 |
||
|
9095001711
|
9095001711
90950-01711 New Genuine Part |
90950-01711 |
US $1.60 |
||
|
9095001826
|
9095001826
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001839
|
9095001839
90950-01839 New Genuine Part |
90950-01839 |
US $2.48 |
||
