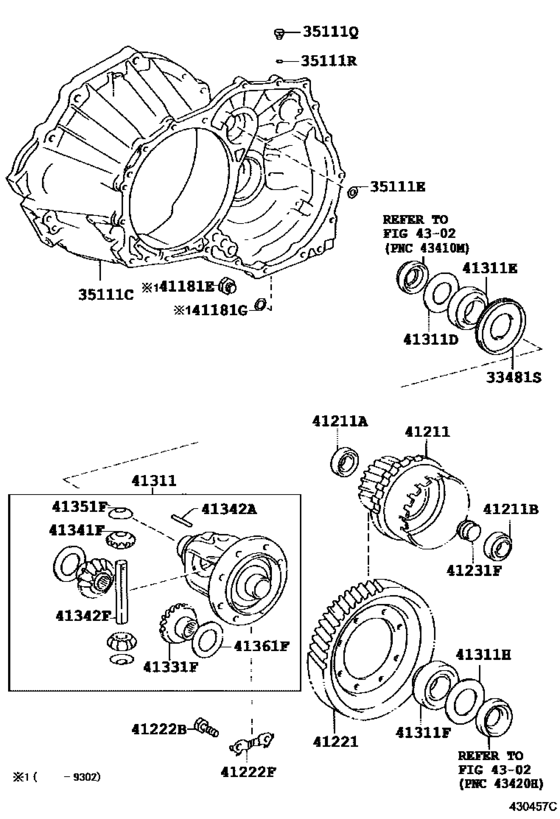

Front Axle Housing & Differential ([11.1992 - ] A241E,A241L (9211- )CT190,196,197,ST190,191..4FC) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33481S
|
33481S
33481-20140 Gear, Speedometer Drive (Atm)[11.1992 - 03.1994] CT190,196,ST190,191..4FC..(CZ,FZ,TZ,UX) |
33481-20140 |
US $37.42 |
||
|
35111C
|
35111C
35105-20022 Housing, Transaxle[11.1992 - 02.1993] ST190,191..4FC |
35105-20022 |
US $812.45 |
||
| replacement | |||||
|
35111C
|
35111C
35105-20023 Housing, Transaxle[11.1992 - 02.1993] ST190,191..4FC |
35105-20023 |
US $813.90 |
||
|
35111C
|
35111C
35105-20023 Housing, Transaxle[02.1993 - 08.1997] ST190,191..4FC |
35105-20023 |
US $813.90 |
||
|
35111E
|
35111E
90210-13002 Washer, Seal (For Front Transaxle Housing)[11.1992 -] AT191,CT190,196,197,ST190,191..4FC |
90210-13002 |
US $4.08 |
||
|
35111Q
|
35111Q
90341-08001 Plug, Transaxle Case, No.1[11.1992 -] AT191,CT190,196,197,ST190,191..4FC |
90341-08001 |
from US $1.58 |
||
|
35111R
|
35111R
90301-06196 O Ring, Transaxle Case, No.1[11.1992 -] AT191,CT190,196,197,ST190,191..4FC |
90301-06196 |
from US $2.52 |
||
|
41181E
|
41181E
90341-18057 Drain Plug (with Magnet)[11.1992 - 02.1993] CT190,196,ST190,191..4FC |
90341-18057 |
US $5.60 |
||
|
41181G
|
41181G
90430-18008 Gasket[11.1992 - 02.1993] CT190,196,ET196,ST19#..ATM |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
41181G
|
41181G
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[11.1992 - 02.1993] CT190,196,ET196,ST19#..ATM |
90430-T0021 |
— | ||
|
41211
|
41211
41206-17030 Pinion, Differential Drive[11.1992 - 05.1998] CT190,196,ST190..4FC..(DSL,EFI) |
41206-17030 |
US $334.88 |
||
|
41211A
|
41211A
90366-30054 Bearing (For Rear Drive Pinion Rear)[11.1992 -] CT190,196,197,ST190,191..4FC |
90366-30054 |
US $43.24 |
||
|
41211B
|
41211B
90366-30053 Bearing (For Rear Drive Pinion Front)[11.1992 - 12.2001] CT190,196,197,ST190,191..4FC |
90366-30053 |
US $43.24 |
||
| replacement | |||||
|
41211B
|
41211B
90366-30085 Bearing, Tapered Roller (For Front Drive Pinion Front)[11.1992 - 12.2001] CT190,196,197,ST190,191..4FC |
90366-30085 |
US $40.91 |
||
|
41221
|
41221
41221-17030 Gear, Front Differential Ring[11.1992 - 05.1998] CT190,196,ST190..4FC..(DSL,EFI) |
41221-17030 |
US $168.90 |
||
|
41222B
|
41222B
90101-11353 Bolt (For Rear Differential Ring Gear Set)[11.1992 - 01.1995] ET196;CT190,196,ST190,191..4FC |
90101-11353 |
from US $0.90 |
||
|
41222F
|
41222F
41222-20030 Plate, Rear Differential Ring Gear Set Bolt Lock[11.1992 -] CT190,196,197,ST190,191..4FC |
41222-20030 |
US $3.06 |
||
|
41231F
|
41231F
41231-17010 Spacer, Rear Differential Drive Pinion Bearing[11.1992 -] CT190,196,197,ST190,191..4FC |
41231-17010 |
US $10.05 |
||
|
41311
|
41311
41301-20112 Case Sub-Assy, Rear Differential[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC |
41301-20112 |
US $573.66 |
||
|
41311D
|
41311D
90564-45015 Shim(For Rear Differential Case)[11.1992 -] CT190,196,197,ST190,191..4FC 厚さ＝２．６０，マーク １５ |
90564-45015 |
US $4.80 |
||
|
41311E
|
41311E
90368-40002 Bearing(For Rear Differential Case)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC |
90368-40002 |
US $31.74 |
||
|
41311F
|
41311F
90366-44001 Bearing(For Rear Differential Case)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC |
90366-44001 |
from US $25.33 |
||
|
41311H
|
41311H
90201-45004 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．００，マーク ０１ |
90201-45004 |
US $5.24 |
||
|
41311H
|
41311H
90201-45005 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．０５，マーク ０２ |
90201-45005 |
US $5.24 |
||
|
41311H
|
41311H
90201-45006 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．１０，マーク ０３ |
90201-45006 |
US $5.24 |
||
|
41311H
|
41311H
90201-45007 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．１５，マーク ０４ |
90201-45007 |
US $5.24 |
||
|
41311H
|
41311H
90201-45008 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．２０，マーク ０５ |
90201-45008 |
US $5.24 |
||
|
41311H
|
41311H
90201-45009 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．２５，マーク ０６ |
90201-45009 |
US $5.24 |
||
|
41311H
|
41311H
90201-45010 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．３０，マーク ０７ |
90201-45010 |
US $5.24 |
||
|
41311H
|
41311H
90201-45011 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．３５，マーク ０８ |
90201-45011 |
US $5.24 |
||
|
41311H
|
41311H
90201-45012 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．４０，マーク ０９ |
90201-45012 |
US $5.24 |
||
|
41311H
|
41311H
90201-45013 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．４５，マーク １０ |
90201-45013 |
US $5.24 |
||
|
41311H
|
41311H
90201-45014 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．５０，マーク １１ |
90201-45014 |
US $5.24 |
||
|
41311H
|
41311H
90201-45015 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．５５，マーク １２ |
90201-45015 |
US $6.84 |
||
|
41311H
|
41311H
90201-45016 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．６０，マーク １３ |
90201-45016 |
US $6.84 |
||
|
41311H
|
41311H
90201-45017 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．６５，マーク １４ |
90201-45017 |
US $6.84 |
||
|
41311H
|
41311H
90201-45018 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．７０，マーク １５ |
90201-45018 |
US $6.84 |
||
|
41311H
|
41311H
90201-45019 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．７５，マーク １６ |
90201-45019 |
US $6.84 |
||
|
41311H
|
41311H
90201-45020 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．８０，マーク １７ |
90201-45020 |
US $6.84 |
||
|
41311H
|
41311H
90201-45021 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．８５，マーク １８ |
90201-45021 |
US $6.84 |
||
|
41311H
|
41311H
90201-45022 Washer, Plate (For Front Differential Case Rear)[11.1992 - 06.2002] CT190,196,197,ST190,191..4FC 厚さ＝２．９０，マーク １９ |
90201-45022 |
US $6.84 |
||
|
41331F
|
41331F
41331-32010 Gear, Rear Differential Side[11.1992 - 06.2002] CT190,196,197,ST190,191 |
41331-32010 |
US $55.74 |
||
|
41341F
|
41341F
41341-22030
Pinion, Rear Differential
[11.1992 - 01.1996] CT190,196,ST190,191 |
41341-22030 |
— | ||
| replacement | |||||
|
41341F
|
41341F
41039-28010 Gear Kit, Differential, Rear[11.1992 - 01.1996] CT190,196,ST190,191 |
41039-28010 |
US $251.60 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[11.1992 - 06.2002] AT191,CT190,196,197,ET196,ST190,191 |
90250-06058 |
from US $2.09 |
||
|
41342F
|
41342F
41342-32020
Shaft, Rear Differential Pinion
[11.1992 - 06.2002] CT190,196,197,ST190,191 |
41342-32020 |
— | ||
| replacement | |||||
|
41342F
|
41342F
41342-52060 Shaft, Front Differential Pinion, No.1[11.1992 - 06.2002] CT190,196,197,ST190,191 |
41342-52060 |
US $17.82 |
||
|
41351F
|
41351F
41351-32010 Washer, Rear Differential Pinion Thrust[11.1992 - 06.2002] CT190,196,197,ST190,191 |
41351-32010 |
from US $1.56 |
||
|
41361F
|
41361F
41361-17010 Washer, Rear Differential Side Gear Thrust, No.1[11.1992 - 08.1997] AT191,CT190,196,ST190,191..4FC 厚さ＝０．９５ |
41361-17010 |
US $3.14 |
||
|
41361F
|
41361F
41361-17020 Washer, Rear Differential Side Gear Thrust, No.1[11.1992 - 08.1997] AT191,CT190,196,ST190,191..4FC 厚さ＝１．００ |
41361-17020 |
US $2.62 |
||
|
41361F
|
41361F
41361-17030 Washer, Rear Differential Side Gear Thrust, No.1[11.1992 - 08.1997] AT191,CT190,196,ST190,191..4FC 厚さ＝１．０５ |
41361-17030 |
US $2.62 |
||
|
41361F
|
41361F
41361-17040 Washer, Rear Differential Side Gear Thrust, No.1[11.1992 - 08.1997] AT191,CT190,196,ST190,191..4FC 厚さ＝１．１０ |
41361-17040 |
US $2.62 |
||
|
41361F
|
41361F
41361-17050 Washer, Rear Differential Side Gear Thrust, No.1[11.1992 - 08.1997] AT191,CT190,196,ST190,191..4FC 厚さ＝１．１５ |
41361-17050 |
US $3.32 |
||
|
41361F
|
41361F
41361-17060 Washer, Rear Differential Side Gear Thrust, No.1[11.1992 - 08.1997] AT191,CT190,196,ST190,191..4FC 厚さ＝１．２０ |
41361-17060 |
US $2.62 |
||
