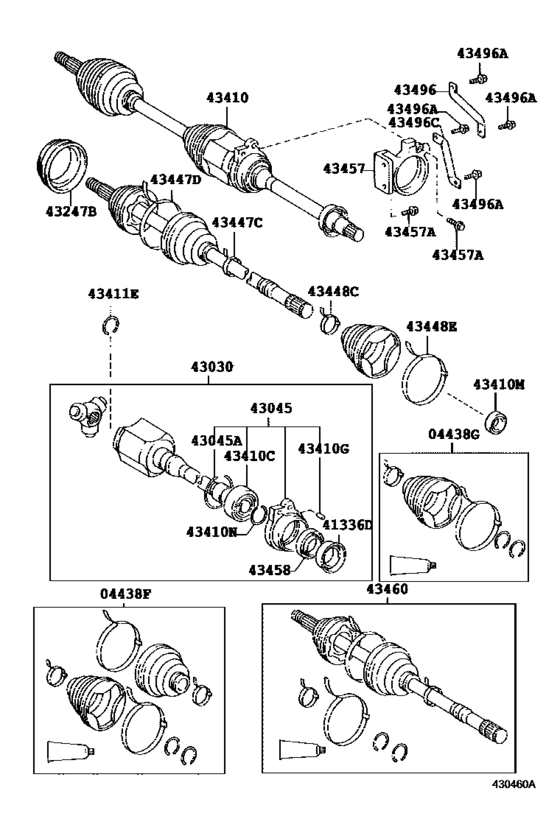

Front Drive Shaft ([11.1992 - ] RH (9211- )ST190,191) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-20130 Boot Kit, Front Drive Shaft, In & Outboard, Rh[11.1992 - 08.1994] ST190,191 |
04438-20130 |
US $145.60 |
||
| replacement | |||||
|
04438F
|
04438F
04438-20134
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[11.1992 - 08.1994] ST190,191 |
04438-20134 |
— | ||
|
04438G
|
04438G
04438-20120 Boot Kit, Front Drive Shaft Inboard Joint, Rh[11.1992 - 08.1994] ST190,191 |
04438-20120 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[11.1992 - 08.1994] ST190,191 |
04438-42201 |
from US $66.73 |
||
|
41336D
|
41336D
41336-20011
Cover, Dust(For Front Drive Shaft)
[11.1992 - 08.1997] ST190,191 |
41336-20011 |
— | ||
| replacement | |||||
|
41336D
|
41336D
41336-20050 Cover, Front Drive Shaft Dust, Rh[11.1992 - 08.1997] ST190,191 |
41336-20050 |
US $6.12 |
||
|
43030
|
43030
43030-20030 Joint Assy, Front Drive Inboard, Rh[11.1992 - 08.1997] ST190,191 |
43030-20030 |
US $438.26 |
||
| replacement | |||||
|
43030
|
43030
43030-32060 Joint Assy, Rear Drive Shaft Inboard, Rh[11.1992 - 08.1997] ST190,191 |
43030-32060 |
US $439.71 |
||
|
43045
|
43045
43045-20010 Case Sub Assy, Drive Shaft Bearing[07.1994 - 08.1997] ST190,191 |
43045-20010 |
US $68.32 |
||
|
43045A
|
43045A
96153-00680 Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)[11.1992 - 08.1997] ST190,191 |
96153-00680 |
US $4.02 |
||
|
43247B
|
43247B
43247-12010 Deflector, Rear Wheel Bearing Dust, No.1[11.1992 - 01.1996] CT190,ST19# ｱﾘ(ABS) |
43247-12010 |
from US $10.88 |
||
|
43247B
|
43247B
43247-33010 Deflector, Front Wheel Bearing Dust, No.2[11.1992 - 01.1996] CT19#,ET196,ST19# |
43247-33010 |
US $36.48 |
||
|
43410
|
43410
43410-20540 Shaft Assy, Front Drive, Rh[11.1992 - 01.1996] ST190,191 |
43410-20540 |
US $1,071.62 |
||
| replacements | |||||
|
43410
|
43410
43410-20543 Shaft Assy, Front Drive, Rh[11.1992 - 01.1996] ST190,191 |
43410-20543 |
US $1,073.07 |
||
|
43410
|
43410
90178-22001 Nut (For Axle Shaft)[11.1992 - 01.1996] ST190,191 |
90178-22001 |
from US $2.15 |
||
|
43410
|
43410
43410-20580 Shaft Assy, Front Drive, Rh[11.1992 - 01.1996] ST190,191 ｱﾘ(ABS) |
43410-20580 |
US $1,071.62 |
||
| replacements | |||||
|
43410
|
43410
43410-20583 Shaft Assy, Front Drive, Rh[11.1992 - 01.1996] ST190,191 ｱﾘ(ABS) |
43410-20583 |
US $1,043.08 |
||
|
43410
|
43410
90178-22001 Nut (For Axle Shaft)[11.1992 - 01.1996] ST190,191 ｱﾘ(ABS) |
90178-22001 |
from US $2.15 |
||
|
43410C
|
43410C
90363-36001
Bearing
[07.1994 - 08.1997] ST190,191 |
90363-36001 |
— | ||
| replacements | |||||
|
43410C
|
43410C
90363-36004 Bearing(For Rear Drive Shaft)[07.1994 - 08.1997] ST190,191 |
90363-36004 |
from US $37.54 |
||
|
43410C
|
43410C
90363-36010 Bearing (For Front Drive Shaft)[07.1994 - 08.1997] ST190,191 |
90363-36010 |
US $26.73 |
||
|
43410G
|
43410G
90250-06003 Pin, Straight[11.1992 - 08.1997] ST190,191 |
90250-06003 |
US $1.44 |
||
|
43410M
|
43410M
90311-35019 Seal, Oil, No.2(For Transaxle Case)[11.1992 - 08.1999] CT190,196,197,ST190,191..4FC |
90311-35019 |
from US $6.40 |
||
|
43410M
|
43410M
90311-35045 Oil Seal, Front Drive Shaft, Rh[08.1999 -] CT197..4FC |
90311-35045 |
from US $4.64 |
||
|
43410N
|
43410N
90520-33008 Ring, Hole Snap (For Differential Side Gear Shaft)[11.1992 - 08.1997] ST190,191 |
90520-33008 |
from US $1.76 |
||
|
43411E
|
43411E
90520-22005 Ring, Snap (For Rear Drive Shaft)[11.1992 -] AT191,CT19#,ET196,ST19# |
90520-22005 |
from US $1.24 |
||
|
43447C
|
43447C
42345-14010 Clamp, Rear Drive Shaft Boot[11.1992 - 01.1996] CT19#,ST19# |
42345-14010 |
US $11.20 |
||
|
43447D
|
43447D
42345-16040
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[07.1993 - 01.1996] CT19#,ST19# 内径＝９１．９ |
42345-16040 |
— | ||
|
43447D
|
43447D
90949-01076
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[11.1992 - 07.1993] CT19#,ST19# 内径＝９２．２ |
90949-01076 |
— | ||
| replacement | |||||
|
43447D
|
43447D
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [11.1992 - 07.1993] CT19#,ST19# 内径＝９２．２ |
42345-12160 |
from US $4.64 |
||
|
43448C
|
43448C
42345-16010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[11.1992 - 01.1996] CT19#,ET196,ST19# |
42345-16010 |
from US $1.88 |
||
|
43448E
|
43448E
42345-16040
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[07.1993 - 01.1996] CT19#,ET196,ST19# |
42345-16040 |
— | ||
|
43448E
|
43448E
90949-01076
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[11.1992 - 07.1993] CT19#,ET196,ST19# |
90949-01076 |
— | ||
| replacement | |||||
|
43448E
|
43448E
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [11.1992 - 07.1993] CT19#,ET196,ST19# |
42345-12160 |
from US $4.64 |
||
|
43457
|
43457
43457-20030
Bracket, Drive Shaft Bearing
[11.1992 - 08.1997] ST190,191 |
43457-20030 |
— | ||
|
43457A
|
43457A
90105-10202
Bolt (For Front Differential Carrier Cover Setting)
[11.1992 - 01.1994] ST190,191 ＊１０−１．２５ＰＸ２２−１９．５ |
90105-10202 |
— | ||
| replacement | |||||
|
43457A
|
43457A
90105-10361 Bolt (For Rear Differential Carrier Cover Setting)[11.1992 - 01.1994] ST190,191 ＊１０−１．２５ＰＸ２２−１９．５ |
90105-10361 |
from US $1.01 |
||
|
43457A
|
43457A
90105-10285
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
[01.1994 - 08.1997] ST190,191 ＊１０−１．２５ＰＸ２２−１９．５ |
90105-10285 |
— | ||
| replacement | |||||
|
43457A
|
43457A
90105-10361 Bolt (For Rear Differential Carrier Cover Setting)[01.1994 - 08.1997] ST190,191 ＊１０−１．２５ＰＸ２２−１９．５ |
90105-10361 |
from US $1.01 |
||
|
43458
|
43458
43458-20011 Cover, Front Drive Shaft Dust[11.1992 - 08.1997] ST190,191 |
43458-20011 |
US $14.33 |
||
|
43460
|
43460
43470-19645 Shaft Assy, Front Drive Outboard Joint, Rh[11.1992 - 01.1996] ST190,191 |
43470-19645 |
US $524.16 |
||
| replacements | |||||
|
43460
|
43460
43470-19659
Shaft Assy, Front Drive Outboard Joint, Rh
[11.1992 - 01.1996] ST190,191 |
43470-19659 |
— | ||
|
43460
|
43460
90178-22001 Nut (For Axle Shaft)[11.1992 - 01.1996] ST190,191 |
90178-22001 |
from US $2.15 |
||
|
43460
|
43460
43470-19655
Shaft Assy, Front Drive Outboard Joint, Rh
[11.1992 - 01.1996] ST190,191 ｱﾘ(ABS) |
43470-19655 |
— | ||
| replacements | |||||
|
43460
|
43460
43470-19659
Shaft Assy, Front Drive Outboard Joint, Rh
[11.1992 - 01.1996] ST190,191 ｱﾘ(ABS) |
43470-19659 |
— | ||
|
43460
|
43460
90178-22001 Nut (For Axle Shaft)[11.1992 - 01.1996] ST190,191 ｱﾘ(ABS) |
90178-22001 |
from US $2.15 |
||
|
43496
|
43496
43496-20010 Stay, Front Drive Shaft Bearing Braket, No.1[11.1992 - 08.1997] ST190,191 |
43496-20010 |
US $22.42 |
||
|
43496A
|
43496A
90105-10263 Bolt (For Drive Shaft Bearing Bracket Stay)[11.1992 - 08.1997] ST190,191 |
90105-10263 |
from US $2.24 |
||
|
43496C
|
43496C
43496-20080 Stay, Front Drive Shaft Bearing Braket, No.2[11.1992 - 08.1997] ST190,191 |
43496-20080 |
US $16.31 |
||
