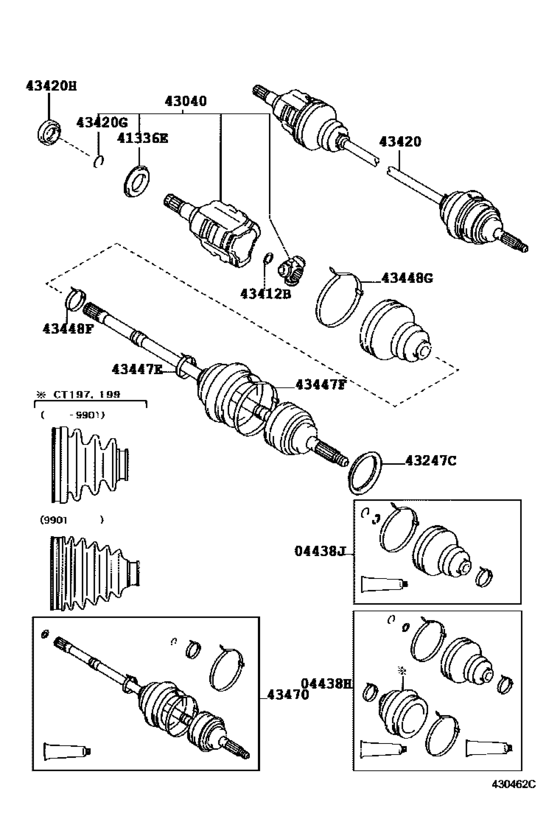

Front Drive Shaft ([11.1992 - 04.2001] LH (9211-0104)) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04438-20130 Boot Kit, Front Drive Shaft, In & Outboard, Rh[11.1992 - 08.1994] ST190,191 |
04438-20130 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04438-20134
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[11.1992 - 08.1994] ST190,191 |
04438-20134 |
— | ||
|
04438J
|
04438J
04438-20120 Boot Kit, Front Drive Shaft Inboard Joint, Rh[11.1992 - 08.1994] ST190,191 |
04438-20120 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[11.1992 - 08.1994] ST190,191 |
04438-42201 |
from US $66.73 |
||
|
41336E
|
41336E
41336-32020 Cover, Dust(For Differential Side Gear Shaft)[11.1992 - 11.2000] CT190,196,197,ST190,191 |
41336-32020 |
US $4.89 |
||
|
43040
|
43040
43040-20010
Joint Assy, Front Drive Inboard, Rh
[11.1992 - 06.1998] CT190,196,197,ST190,191 |
43040-20010 |
— | ||
| replacement | |||||
|
43040
|
43040
43040-32040 Joint Assy, Drive Shaft Inboard, Lh[11.1992 - 06.1998] CT190,196,197,ST190,191 |
43040-32040 |
from US $227.14 |
||
|
43247C
|
43247C
43247-12010 Deflector, Rear Wheel Bearing Dust, No.1[11.1992 - 01.1996] CT190,ST19# ｱﾘ(ABS) |
43247-12010 |
from US $10.88 |
||
|
43247C
|
43247C
43247-33010 Deflector, Front Wheel Bearing Dust, No.2[11.1992 - 01.1996] CT19#,ET196,ST19# |
43247-33010 |
US $36.48 |
||
|
43412B
|
43412B
90520-22005 Ring, Snap (For Rear Drive Shaft)[11.1992 -] AT191,CT19#,ET196,ST19# |
90520-22005 |
from US $1.24 |
||
|
43420
|
43420
43420-20380 Shaft Assy, Front Drive, Lh[11.1992 - 01.1996] ST190,191 |
43420-20380 |
US $959.50 |
||
| replacements | |||||
|
43420
|
43420
43420-20383 Shaft Assy, Front Drive, Lh[11.1992 - 01.1996] ST190,191 |
43420-20383 |
from US $749.25 |
||
|
43420
|
43420
90178-22001 Nut (For Axle Shaft)[11.1992 - 01.1996] ST190,191 |
90178-22001 |
from US $2.15 |
||
|
43420
|
43420
43420-20420 Shaft Assy, Front Drive, Lh[11.1992 - 01.1996] ST190,191 ｱﾘ(ABS) |
43420-20420 |
US $959.50 |
||
| replacements | |||||
|
43420
|
43420
43420-20423 Shaft Assy, Front Drive, Lh[11.1992 - 01.1996] ST190,191 ｱﾘ(ABS) |
43420-20423 |
US $962.42 |
||
|
43420
|
43420
90178-22001 Nut (For Axle Shaft)[11.1992 - 01.1996] ST190,191 ｱﾘ(ABS) |
90178-22001 |
from US $2.15 |
||
|
43420G
|
43420G
90521-27005 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[11.1992 -] CT190,196,197,ST190,191 |
90521-27005 |
from US $1.76 |
||
|
43420H
|
43420H
90311-35020
Seal, Oil, No.2(For Transaxle Case)
[11.1992 - 08.1999] CT190,196,197,ST190,191..4FC |
90311-35020 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-35047 Oil Seal, Front Drive Shaft, Lh[11.1992 - 08.1999] CT190,196,197,ST190,191..4FC |
90311-35047 |
from US $4.32 |
||
|
43447E
|
43447E
42345-14010 Clamp, Rear Drive Shaft Boot[11.1992 - 01.1996] CT19#,ST19# |
42345-14010 |
US $11.20 |
||
|
43447F
|
43447F
42345-16040
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[07.1993 - 01.1996] CT19#,ST19# 内径＝９１．９ |
42345-16040 |
— | ||
|
43447F
|
43447F
90949-01076
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[11.1992 - 07.1993] CT19#,ST19# 内径＝９２．２ |
90949-01076 |
— | ||
| replacement | |||||
|
43447F
|
43447F
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [11.1992 - 07.1993] CT19#,ST19# 内径＝９２．２ |
42345-12160 |
from US $4.64 |
||
|
43448F
|
43448F
42345-16010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[11.1992 - 01.1996] CT19#,ET196,ST19# |
42345-16010 |
from US $1.88 |
||
|
43448G
|
43448G
42345-16040
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[07.1993 - 01.1996] CT19#,ET196,ST19# |
42345-16040 |
— | ||
|
43448G
|
43448G
90949-01076
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[11.1992 - 07.1993] CT19#,ET196,ST19# |
90949-01076 |
— | ||
| replacement | |||||
|
43448G
|
43448G
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [11.1992 - 07.1993] CT19#,ET196,ST19# |
42345-12160 |
from US $4.64 |
||
|
43470
|
43470
43470-19645 Shaft Assy, Front Drive Outboard Joint, Rh[11.1992 - 01.1996] ST190,191 |
43470-19645 |
US $524.16 |
||
| replacements | |||||
|
43470
|
43470
43470-19659
Shaft Assy, Front Drive Outboard Joint, Rh
[11.1992 - 01.1996] ST190,191 |
43470-19659 |
— | ||
|
43470
|
43470
90178-22001 Nut (For Axle Shaft)[11.1992 - 01.1996] ST190,191 |
90178-22001 |
from US $2.15 |
||
|
43470
|
43470
43470-19655
Shaft Assy, Front Drive Outboard Joint, Rh
[11.1992 - 01.1996] ST190,191 ｱﾘ(ABS) |
43470-19655 |
— | ||
| replacements | |||||
|
43470
|
43470
43470-19659
Shaft Assy, Front Drive Outboard Joint, Rh
[11.1992 - 01.1996] ST190,191 ｱﾘ(ABS) |
43470-19659 |
— | ||
|
43470
|
43470
90178-22001 Nut (For Axle Shaft)[11.1992 - 01.1996] ST190,191 ｱﾘ(ABS) |
90178-22001 |
from US $2.15 |
||
