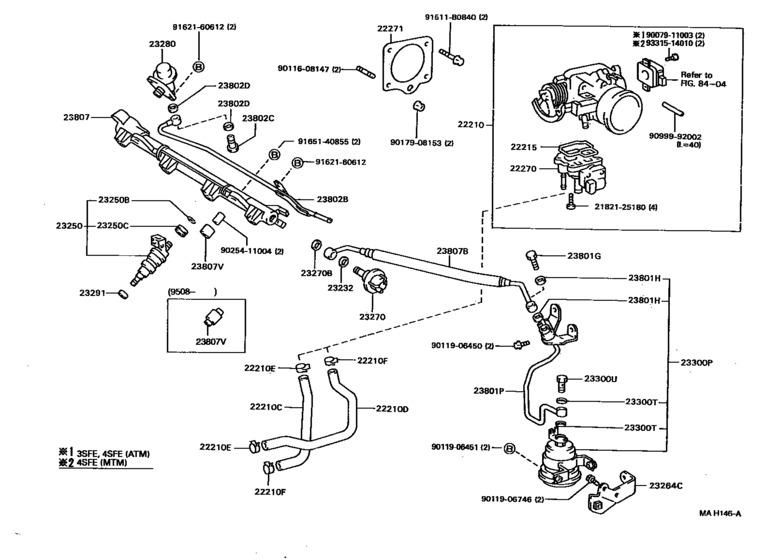

Fuel Injection System ([11.1992 - 01.1996] (9211-9601)3SFE,4SFE) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-74810 Body Assy, Throttle[11.1992 - 01.1996] 4SFE..ST190..4FC |
22210-74810 |
US $1,217.22 |
||
|
22210C
|
22210C
16283-74010 Hose, Water By-Pass, No.1[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
16283-74010 |
US $12.06 |
||
|
22210D
|
22210D
16282-74050 Hose, Water By-Pass, No.1[11.1992 - 03.1994] 3SFE,4SFE..ST19# |
16282-74050 |
US $11.53 |
||
|
22210D
|
22210D
16282-74080 Hose, Water By-Pass, No.1[04.1994 - 01.1996] 3SFE,4SFE..ST19# |
16282-74080 |
US $13.10 |
||
|
22210E
|
22210E
90467-13050
Clamp Or Clip, Hose(For Water By-Pass Hose)
[11.1992 - 04.2002] 3SFE,4SFE..ST19# |
90467-13050 |
— | ||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[11.1992 - 04.2002] 3SFE,4SFE..ST19# |
96135-51300 |
from US $1.92 |
||
|
22210F
|
22210F
90467-13050
Clamp Or Clip, Hose(For Water By-Pass Hose)
[11.1992 - 04.2002] 3SFE,4SFE..ST19# |
90467-13050 |
— | ||
| replacement | |||||
|
22210F
|
22210F
96135-51300 Clamp, Hose[11.1992 - 04.2002] 3SFE,4SFE..ST19# |
96135-51300 |
from US $1.92 |
||
|
22215
|
22215
22215-74400 Gasket, Throttle Body Cover[11.1992 -] 3SFE,4SFE..ST19# |
22215-74400 |
from US $4.13 |
||
|
22270
|
22270
22270-74150 Valve Assy, Idle Speed Control(For Thlottle Body)[11.1992 - 01.1996] 4SFE..ST190..4FC |
22270-74150 |
US $604.24 |
||
|
22271
|
22271
22271-74021
Gasket, Throttle Body
[11.1992 - 09.1993] 3SFE,4SFE..ST19# |
22271-74021 |
— | ||
| replacement | |||||
|
22271
|
22271
22271-74022 Gasket, Throttle Body[11.1992 - 09.1993] 3SFE,4SFE..ST19# |
22271-74022 |
from US $1.42 |
||
|
22271
|
22271
22271-74022 Gasket, Throttle Body[09.1993 - 01.1996] 3SFE,4SFE..ST19# |
22271-74022 |
from US $1.42 |
||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[11.1992 - 05.1995] 3S#,4SFE..ST19# |
23232-41081 |
from US $1.40 |
||
|
23232
|
23232
23279-74010 Gasket(For Fuel Pump Hose)[05.1995 -] 3SFE,4SFE..ST19# |
23279-74010 |
from US $1.19 |
||
|
23250
|
23250
23209-74130 Injector Assy, Fuel[11.1992 - 01.1996] 4SFE..ST190 |
23209-74130 |
US $273.73 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[11.1992 - 08.1997] 3S#,4SFE..ST19# |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[11.1992 -] 3S#,4SFE..ST19# |
90480-13005 |
from US $2.50 |
||
|
23264C
|
23264C
23264-74060 Bracket, Fuel Filter[11.1992 - 02.1995] 3SFE,4SFE..ST19# |
23264-74060 |
US $12.38 |
||
|
23270
|
23270
23207-46010
Damper Assy, Fuel Pressure Pulsation
[07.1993 -] 3SFE,4SFE..ST19# |
23207-46010 |
— | ||
|
23270
|
23270
23207-74010 Damper Assy, Fuel Pressure Pulsation[11.1992 - 07.1993] 3SFE,4SFE..ST19# |
23207-74010 |
US $90.27 |
||
| replacement | |||||
|
23270
|
23270
23207-46010
Damper Assy, Fuel Pressure Pulsation
[11.1992 - 07.1993] 3SFE,4SFE..ST19# |
23207-46010 |
— | ||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[11.1992 - 05.1995] 3SFE,4SFE..ST19# |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
23279-74010 Gasket(For Fuel Pump Hose)[05.1995 -] 3SFE,4SFE..ST19# |
23279-74010 |
from US $1.19 |
||
|
23280
|
23280
23280-74100 Regulator Assy, Fuel Pressure[11.1992 - 04.1994] 3SFE,4SFE..ST19# |
23280-74100 |
US $129.29 |
||
|
23280
|
23280
23280-74151
Regulator Assy, Fuel Pressure
[04.1994 -] 3SFE,4SFE..ST19# |
23280-74151 |
— | ||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[11.1992 -] 5EFE..ET196; 3S#,4SFE..ST19# |
23291-41010 |
from US $2.87 |
||
|
23300P
|
23300P
23300-79335 Filter, Fuel(For Efi)[11.1992 - 01.1996] 3S#,4SFE..ST19# |
23300-79335 |
US $103.38 |
||
|
23300T
|
23300T
90430-12026 Gasket[11.1992 -] 5EFE..ET196; 3S#,4SFE..ST19# |
90430-12026 |
from US $0.88 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[11.1992 - 08.1996] 5EFE..ET196; 3S#,4SFE..ST19# |
90401-12097 |
from US $3.08 |
||
|
23801G
|
23801G
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
90401-12097 |
from US $3.08 |
||
|
23801H
|
23801H
90430-12026 Gasket[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
90430-12026 |
from US $0.88 |
||
|
23801P
|
23801P
23801-74070 Pipe Sub-Assy, Fuel, No.1[11.1992 - 02.1995] 3SFE,4SFE..ST19# |
23801-74070 |
US $99.01 |
||
|
23802B
|
23802B
23802-74070 Pipe Sub-Assy, Fuel, No.2[11.1992 -] 3SFE,4SFE..ST19# |
23802-74070 |
US $51.25 |
||
|
23802C
|
23802C
90401-08004 Bolt Union(For Oil Jet)[11.1992 -] 3SFE,4SFE..ST19# |
90401-08004 |
US $3.14 |
||
|
23802D
|
23802D
90430-08014 Gasket(For Oil Filter Outlet Pipe)[11.1992 -] 3SFE,4SFE..ST19# |
90430-08014 |
from US $0.86 |
||
|
23807
|
23807
23814-74070 Pipe Sub-Assy, Fuel Delivery[11.1992 - 04.1994] 3SFE,4SFE..ST19# |
23814-74070 |
US $132.50 |
||
| replacement | |||||
|
23807
|
23807
23814-74071 Pipe Sub-Assy, Fuel Delivery[11.1992 - 04.1994] 3SFE,4SFE..ST19# |
23814-74071 |
US $131.04 |
||
|
23807
|
23807
23814-74100 Pipe Sub-Assy, Fuel Delivery[04.1994 - 05.1994] 3SFE,4SFE..ST19# |
23814-74100 |
US $101.92 |
||
| replacement | |||||
|
23807
|
23807
23814-74071 Pipe Sub-Assy, Fuel Delivery[04.1994 - 05.1994] 3SFE,4SFE..ST19# |
23814-74071 |
US $131.04 |
||
|
23807
|
23807
23814-74110 Pipe Sub-Assy, Fuel Delivery[05.1994 -] 3SFE,4SFE..ST19# |
23814-74110 |
US $104.83 |
||
| replacement | |||||
|
23807
|
23807
23814-74071 Pipe Sub-Assy, Fuel Delivery[05.1994 -] 3SFE,4SFE..ST19# |
23814-74071 |
US $131.04 |
||
|
23807B
|
23807B
23271-74380 Hose, Fuel Delivery Pipe[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
23271-74380 |
US $141.23 |
||
|
23807V
|
23807V
90560-11020 Spacer, No.1(For Delivery Pipe)[11.1992 - 08.1995] 3SFE,4SFE..ST19# |
90560-11020 |
US $2.08 |
||
|
23807V
|
23807V
90561-08053 Spacer, No.1(For Delivery Pipe)[08.1995 -] 3SFE,4SFE..ST19# |
90561-08053 |
from US $1.40 |
||
|
91511B0840
|
91511B0840
91511-B0840
Bolt(For Alternator)
|
91511-B0840 |
— | ||
| replacement | |||||
|
91511B0840
|
91511B0840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
9007911003
|
9007911003
90079-11003 New Genuine Part |
90079-11003 |
from US $1.41 |
||
|
9011608147
|
9011608147
90116-08147 Bolt, Stud(For Timing Chain Cover Set) |
90116-08147 |
US $1.49 |
||
|
9011906450
|
9011906450
90119-06450
New Genuine Part
|
90119-06450 |
— | ||
| replacement | |||||
|
9011906450
|
9011906450
90119-06442 BOLT WWASHER |
90119-06442 |
US $1.92 |
||
|
9011906451
|
9011906451
90119-06451 BOLT WWASHER |
90119-06451 |
from US $0.78 |
||
|
9011906746
|
9011906746
90119-06746 New Genuine Part |
90119-06746 |
US $1.60 |
||
| replacement | |||||
|
9011906746
|
9011906746
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9025411004
|
9025411004
90254-11004 New Genuine Part |
90254-11004 |
US $6.84 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9165140855
|
9165140855
91651-40855 New Genuine Part |
91651-40855 |
US $1.05 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.80 |
||
