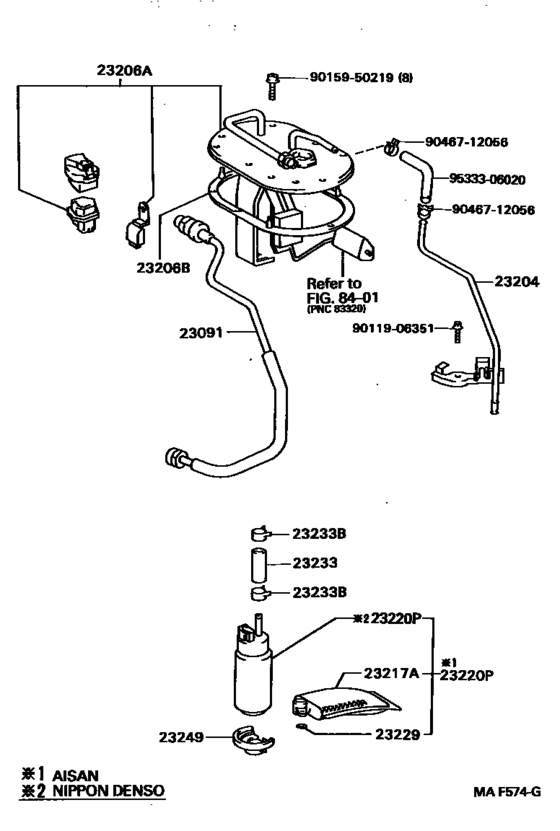

Fuel Injection System ([11.1992 - 01.1996] (9211-9601)3SFE,4SFE..ST190,191) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23091
|
23091
23091-74200 Tube Sub-Assy, Fuel Pump[11.1992 - 01.1996] 3SFE,4SFE..ST190,191 |
23091-74200 |
US $96.10 |
||
|
23204
|
23204
23204-74650 Tube Sub-Assy, Fuel Pump Return[11.1992 - 01.1996] 3SFE,4SFE..ST190,191 |
23204-74650 |
US $35.53 |
||
|
23206A
|
23206A
23206-74660 Bracket, Fuel Pump[11.1992 - 01.1996] 3SFE,4SFE..ST190,191 |
23206-74660 |
US $99.65 |
||
|
23206B
|
23206B
77169-60010 Gasket, Fuel Pump Bracket[11.1992 - 02.1995] 3SFE,4SFE..ST19# |
77169-60010 |
from US $10.41 |
||
|
23217A
|
23217A
23217-46090 Filter, Fuel Pump[06.1993 - 03.1994] 3SFE,4SFE..ST19# |
23217-46090 |
from US $7.64 |
||
|
23217A
|
23217A
23217-74021 Filter, Fuel Pump[03.1994 - 01.1996] 3S#,4SFE..ST19# ＡＩＳＡＮ |
23217-74021 |
from US $10.22 |
||
|
23217A
|
23217A
23217-74030
Filter, Fuel Pump
[11.1992 - 06.1993] 3SFE,4SFE..ST19# |
23217-74030 |
— | ||
|
23220P
|
23220P
23220-74020
Pump Assy, Fuel
[03.1994 - 01.1996] 3S#,4SFE..ST19# ＡＩＳＡＮ |
23220-74020 |
— | ||
| replacements | |||||
|
23220P
|
23220P
23217-0D070 Filter, Fuel Pump[03.1994 - 01.1996] 3S#,4SFE..ST19# ＡＩＳＡＮ |
23217-0D070 |
from US $8.07 |
||
|
23220P
|
23220P
23221-28280 Pump Assy, Fuel (without filter)[03.1994 - 01.1996] 3S#,4SFE..ST19# ＡＩＳＡＮ |
23221-28280 |
from US $421.47 |
||
|
23220P
|
23220P
23229-16010 Clip(For Fuel Pump Filter)[03.1994 - 01.1996] 3S#,4SFE..ST19# ＡＩＳＡＮ |
23229-16010 |
from US $0.84 |
||
|
23220P
|
23220P
23221-46010 Pump Assy, Fuel[11.1992 - 03.1994] 3SFE,4SFE..ST19# |
23221-46010 |
from US $302.58 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[11.1992 - 03.1994] 3SFE,4SFE..ST19# |
23229-16010 |
from US $0.84 |
||
|
23233
|
23233
23239-11010 Hose, Fuel Pump[02.1994 - 01.1996] 3SFE,4SFE..ST190,191; 3S#..ST195 ＮＯ．１ |
23239-11010 |
US $10.88 |
||
|
23233
|
23233
23239-63010 Hose, Fuel Pump[11.1992 - 02.1994] 3SFE..ST195 ＮＯ．１; 3SFE,4SFE..ST190,191 |
23239-63010 |
from US $2.09 |
||
|
23233B
|
23233B
90467-12067 Clip(For Fuel Pump Hose)[02.1994 - 01.1996] 3S#,4SFE..ST19# |
90467-12067 |
from US $1.27 |
||
|
23233B
|
23233B
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.1992 - 02.1994] 3SFE,4SFE..ST19# |
90467-13054 |
from US $0.96 |
||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[11.1992 - 02.1994] 3SFE,4SFE..ST19# |
96135-51300 |
from US $1.92 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[11.1992 -] 5EFE..ET196; 3S#,4SFE..ST19# |
23249-74610 |
from US $8.56 |
||
|
9011906351
|
9011906351
90119-06351 New Genuine Part |
90119-06351 |
US $0.61 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.66 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9046712056
|
9046712056
90467-12056 Clamp Or Clip(For Throttle Body Hose) |
90467-12056 |
from US $0.80 |
||
| replacement | |||||
|
9046712056
|
9046712056
90466-T0048
New Genuine Part
|
90466-T0048 |
— | ||
|
9533306020
|
9533306020
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
|
95333-06020 |
— | ||
| replacement | |||||
|
9533306020
|
9533306020
95337-06020 Hose, Differential Pressure Control |
95337-06020 |
from US $9.12 |
||
