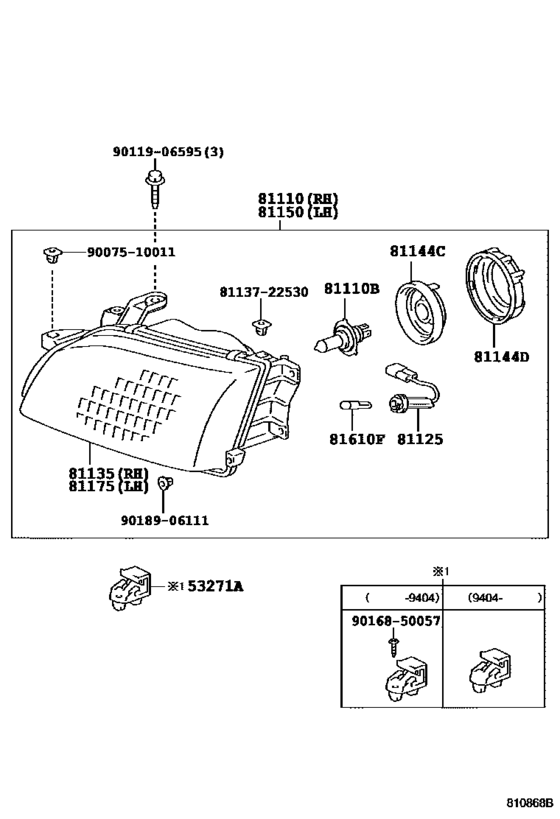

Headlamp ([11.1992 - 01.1996] (9211-9601)) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53271A
|
53271A
53271-12040
Bracket, Headlamp Mounting
[11.1992 - 02.1993] CT19#,ET196,ST19# |
53271-12040 |
— | ||
| replacement | |||||
|
53271A
|
53271A
53271-12060 Bracket, Headlamp Mounting[11.1992 - 02.1993] CT19#,ET196,ST19# |
53271-12060 |
US $10.08 |
||
|
53271A
|
53271A
53271-12060 Bracket, Headlamp Mounting[04.1994 -] AT191,CT19#,ET196,ST19# |
53271-12060 |
US $10.08 |
||
|
81110
|
81110
81110-21020 Headlamp Assy, Rh[11.1992 - 02.1993] CT190,ST19# |
81110-21020 |
US $407.68 |
||
|
81110
|
81110
81110-21030 Headlamp Assy, Rh[02.1993 - 01.1996] CT19#,ET196,ST19# |
81110-21030 |
US $407.68 |
||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[11.1992 - 02.1993] CT19#,ET196,ST19# １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [11.1992 - 02.1993] CT19#,ET196,ST19# １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13058 |
from US $30.40 |
||
|
81125
|
81125
81125-2B650
Cord, Headlamp
[11.1992 - 02.1993] CT19#,ET196,ST19# |
81125-2B650 |
— | ||
|
81135
|
81135
81130-21020 Unit Assy, Headlamp, Rh[11.1992 - 02.1993] CT190,ST19# |
81130-21020 |
US $324.69 |
||
|
81135
|
81135
81130-21030 Unit Assy, Headlamp, Rh[02.1993 - 01.1996] CT19#,ET196,ST19# |
81130-21030 |
US $324.69 |
||
|
81144C
|
81144C
90075-99058 Cover, Headlamp, No.1[11.1992 - 02.1993] CT19#,ET196,ST19# |
90075-99058 |
US $7.21 |
||
|
81144D
|
81144D
90075-99057 Cap, Headlamp Locking[11.1992 - 02.1993] CT19#,ET196,ST19# |
90075-99057 |
US $5.36 |
||
|
81150
|
81150
81150-21020 Headlamp Assy, Lh[11.1992 - 02.1993] CT190,ST19# |
81150-21020 |
US $407.68 |
||
|
81150
|
81150
81150-21030 Headlamp Assy, Lh[02.1993 - 01.1996] CT19#,ET196,ST19# |
81150-21030 |
US $407.68 |
||
|
81175
|
81175
81170-21020 Unit Assy, Headlamp, Lh[11.1992 - 02.1993] CT190,ST19# |
81170-21020 |
US $324.69 |
||
|
81175
|
81175
81170-21030 Unit Assy, Headlamp, Lh[02.1993 - 01.1996] CT19#,ET196,ST19# |
81170-21030 |
US $324.69 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[11.1992 - 02.1993] CT19#,ET196,ST19# １２Ｖ ５Ｗ |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053
Bulb(For Clearance Lamp)
[11.1992 - 02.1993] CT19#,ET196,ST19# １２Ｖ ５Ｗ |
90080-81053 |
— | ||
|
8113722530
|
8113722530
81137-22530
Nut, Headlamp Self Locking
|
81137-22530 |
— | ||
| replacement | |||||
|
8113722530
|
8113722530
90075-10004 Nut, Headlamp Self Locking |
90075-10004 |
from US $0.94 |
||
|
9007510011
|
9007510011
90075-10011 Nut, Headlamp Self Locking |
90075-10011 |
US $2.88 |
||
|
9011906595
|
9011906595
90119-06595 BOLT WWASHER |
90119-06595 |
US $3.52 |
||
|
9016850057
|
9016850057
90168-50057 SCREW RADIATOR GRIL |
90168-50057 |
US $1.92 |
||
|
9018906111
|
9018906111
90189-06111 CLIP |
90189-06111 |
US $1.92 |
||
