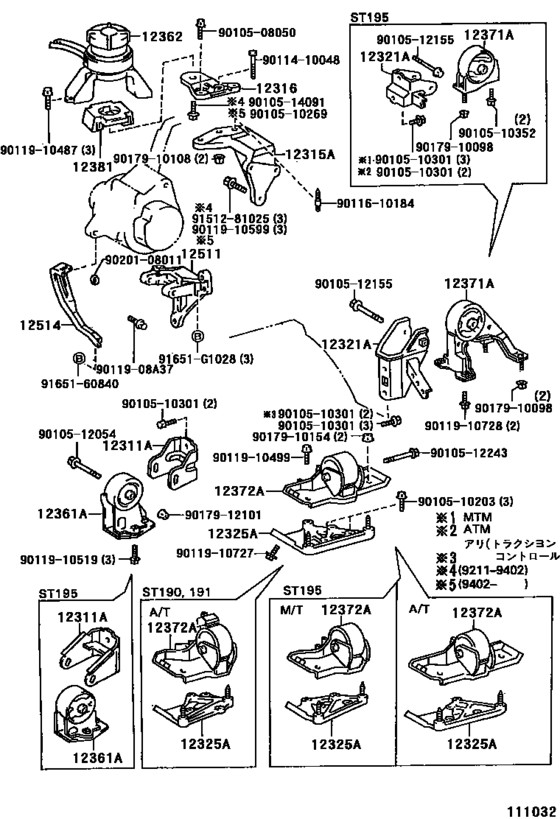

Mounting ([11.1992 - 01.1996] (9211-9601)3SFE,4SFE) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311A
|
12311A
12311-74120 Bracket, Engine Mounting, Front(For Transverse Engine)[11.1992 - 01.1996] 3SFE,4SFE..ST190,191 |
12311-74120 |
US $36.11 |
||
|
12315A
|
12315A
12315-74101 Bracket, Engine Mounting, Rh(For Transverse Engine)[11.1992 - 02.1994] 3SFE,4SFE..ST19# |
12315-74101 |
US $72.80 |
||
|
12315A
|
12315A
12315-74120 Bracket, Engine Mounting, Rh(For Transverse Engine)[02.1994 - 01.1996] 3SFE,4SFE..ST19# |
12315-74120 |
US $80.08 |
||
|
12316
|
12316
12316-74040 Bracket, Engine Mounting, No.2 Rh[11.1992 - 02.1994] 3SFE,4SFE..ST190,191 |
12316-74040 |
US $40.19 |
||
|
12316
|
12316
12316-74080 Bracket, Engine Mounting, No.2 Rh[02.1994 - 01.1996] 3SFE,4SFE..ST190,191 |
12316-74080 |
US $33.20 |
||
|
12321A
|
12321A
12321-74270
Bracket, Engine Mounting, Rear(For Transverse Engine)
[11.1992 - 08.1997] 3SFE,4SFE..ST190,191..4FC |
12321-74270 |
— | ||
|
12325A
|
12325A
12325-74190
Bracket, Engine Mounting, Lh(For Transverse Engine)
[11.1992 - 01.1996] 3SFE,4SFE..ST190,191..4FC |
12325-74190 |
— | ||
|
12361A
|
12361A
12361-74300 Insulator, Engine Mounting, Front(For Transverse Engine)[11.1992 - 01.1996] 3SFE,4SFE..ST190,191..4FC |
12361-74300 |
US $99.01 |
||
|
12362
|
12362
12362-74280 Insulator, Engine Mounting, Rh(For Transverse Engine)[11.1992 - 02.1994] 3SFE,4SFE..ST190,191 |
12362-74280 |
US $183.46 |
||
|
12362
|
12362
12362-74380 Insulator, Engine Mounting, Rh(For Transverse Engine)[02.1994 - 01.1996] 3SFE,4SFE..ST190,191 |
12362-74380 |
US $173.26 |
||
|
12371A
|
12371A
12371-74330 Insulator, Engine Mounting, Rear[11.1992 - 01.1996] 3SFE,4SFE..ST190,191..4FC |
12371-74330 |
US $110.07 |
||
|
12372A
|
12372A
12372-74390 Insulator, Engine Mounting, Lh(For Transverse Engine)[11.1992 - 07.1995] 3SFE,4SFE..ST190,191..4FC |
12372-74390 |
US $132.50 |
||
| replacement | |||||
|
12372A
|
12372A
12372-74391
Insulator, Engine Mounting, Lh(For Transverse Engine)
[11.1992 - 07.1995] 3SFE,4SFE..ST190,191..4FC |
12372-74391 |
— | ||
|
12372A
|
12372A
12372-74391
Insulator, Engine Mounting, Lh(For Transverse Engine)
[07.1995 - 01.1996] 3SFE,4SFE..ST190,191..4FC |
12372-74391 |
— | ||
|
12381
|
12381
12381-74010
Stabilizer, Engine Mounting
[11.1992 - 02.1994] 3SFE,4SFE..ST19# |
12381-74010 |
— | ||
|
12381
|
12381
12381-74020
Stabilizer, Engine Mounting
[02.1994 - 02.1995] 3SFE,4SFE..ST19# |
12381-74020 |
— | ||
|
12511
|
12511
12511-74051 Bracket, Alternator, No.1[11.1992 -] 3SFE,4SFE..ST19# |
12511-74051 |
US $85.90 |
||
|
12514
|
12514
12514-74011 Bar, Alternator Belt Adjusting[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
12514-74011 |
US $16.89 |
||
| replacements | |||||
|
12514
|
12514
91651-B0845 Bolt, Flange (For Idler)[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
91651-B0845 |
US $1.60 |
||
|
12514
|
12514
12514-74012 Bar, Alternator Belt Adjusting[11.1992 - 01.1996] 3SFE,4SFE..ST19# |
12514-74012 |
US $16.89 |
||
|
91651G1028
|
91651G1028
91651-G1028 New Genuine Part |
91651-G1028 |
US $2.62 |
||
|
9011908A37
|
9011908A37
90119-08A37 New Genuine Part |
90119-08A37 |
US $2.18 |
||
| replacement | |||||
|
9011908A37
|
9011908A37
91671-80850 BOLT FLANGE |
91671-80850 |
US $1.31 |
||
|
9010508050
|
9010508050
90105-08050 Bolt (For Overdrive Case & Transaxle Case Setting) |
90105-08050 |
US $3.20 |
||
|
9010510203
|
9010510203
90105-10203 New Genuine Part |
90105-10203 |
US $3.14 |
||
|
9010510269
|
9010510269
90105-10269 New Genuine Part |
90105-10269 |
US $2.62 |
||
|
9010510301
|
9010510301
90105-10301 BOLT WASHER BASED |
90105-10301 |
US $1.76 |
||
|
9010510352
|
9010510352
90105-10352 New Genuine Part |
90105-10352 |
US $4.96 |
||
|
9010512054
|
9010512054
90105-12054 BOLT |
90105-12054 |
from US $5.39 |
||
|
9010512155
|
9010512155
90105-12155 BOLT WASHER BASED |
90105-12155 |
US $5.28 |
||
|
9010512243
|
9010512243
90105-12243 New Genuine Part |
90105-12243 |
US $4.95 |
||
|
9010514091
|
9010514091
90105-14091 New Genuine Part |
90105-14091 |
US $4.08 |
||
|
9011410048
|
9011410048
90114-10048 New Genuine Part |
90114-10048 |
US $2.04 |
||
|
9011610184
|
9011610184
90116-10184 BOLT STUD |
90116-10184 |
US $3.04 |
||
|
9011910487
|
9011910487
90119-10487 New Genuine Part |
90119-10487 |
US $2.77 |
||
|
9011910499
|
9011910499
90119-10499 BOLT WWASHER |
90119-10499 |
US $3.20 |
||
|
9011910519
|
9011910519
90119-10519 New Genuine Part |
90119-10519 |
US $3.20 |
||
|
9011910599
|
9011910599
90119-10599 BOLT WWASHER |
90119-10599 |
US $3.79 |
||
|
9011910727
|
9011910727
90119-10727 New Genuine Part |
90119-10727 |
US $3.49 |
||
|
9011910728
|
9011910728
90119-10728 New Genuine Part |
90119-10728 |
US $1.18 |
||
|
9017910098
|
9017910098
90179-10098 New Genuine Part |
90179-10098 |
US $1.49 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017910154
|
9017910154
90179-10154 NUT |
90179-10154 |
from US $1.01 |
||
|
9017912101
|
9017912101
90179-12101 New Genuine Part |
90179-12101 |
US $3.20 |
||
|
9020108011
|
9020108011
90201-08011 New Genuine Part |
90201-08011 |
US $2.18 |
||
|
9151281025
|
9151281025
91512-81025 Bolt(For Torque Arm Setting) |
91512-81025 |
US $1.60 |
||
|
9165160840
|
9165160840
91651-60840 BOLT |
91651-60840 |
US $1.44 |
||
