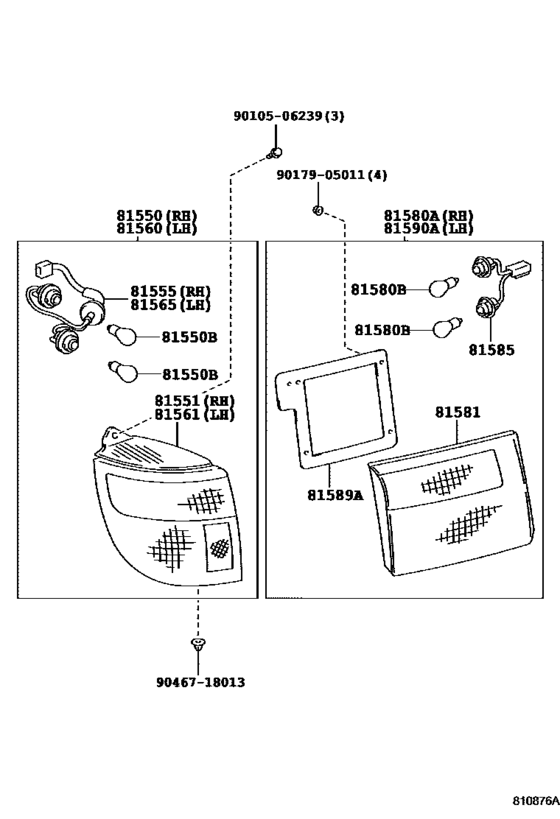

Rear Combination Lamp ([11.1992 - 01.1996] (9211-9601)CT190,ST19#) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-21130 Lamp Assy, Rear Combination, Rh[11.1992 - 01.1996] CT190,ST19# |
81550-21130 |
US $215.49 |
||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[11.1992 - 01.1996] CT19#,ET196,ST19# １２Ｖ ２１Ｗ |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[11.1992 - 01.1996] CT19#,ET196,ST19# １２Ｖ ２１／５Ｗ |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-21130 Lens, Rear Combination Lamp, Rh[11.1992 - 01.1996] CT190,ST19# |
81551-21130 |
US $180.54 |
||
|
81555
|
81555
81555-21130 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[11.1992 - 01.1996] CT190,ST19# |
81555-21130 |
US $27.52 |
||
|
81560
|
81560
81560-21130 Lamp Assy, Rear Combination, Lh[11.1992 - 01.1996] CT190,ST19# |
81560-21130 |
US $215.49 |
||
|
81561
|
81561
81561-21130 Lens, Rear Combination Lamp, Lh[11.1992 - 01.1996] CT190,ST19# |
81561-21130 |
US $180.54 |
||
|
81565
|
81565
81555-21130 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[11.1992 - 01.1996] CT190,ST19# |
81555-21130 |
US $27.52 |
||
|
81580A
|
81580A
81580-21010 Lamp Assy, Rear[11.1992 - 01.1996] CT190,ST19# |
81580-21010 |
US $136.86 |
||
|
81580A
|
81580A
81580-21020 Lamp Assy, Rear[11.1992 - 01.1996] CT190,ST19# ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ) |
81580-21020 |
US $154.34 |
||
|
81580B
|
81580B
99132-11210 Bulb (12V 21W)[11.1992 - 02.1995] CT190,ST19# １２Ｖ ２１Ｗ |
99132-11210 |
from US $2.72 |
||
|
81581
|
81581
81581-21010
Lens, Rear Lamp
[11.1992 - 02.1995] CT190,ST19# 右側 |
81581-21010 |
— | ||
|
81581
|
81581
81581-21020 Lens, Rear Lamp[11.1992 - 02.1995] CT190,ST19# ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),右側 |
81581-21020 |
US $123.76 |
||
|
81581
|
81581
81591-21010 Lens, Rear Lamp[11.1992 - 02.1995] CT190,ST19# 左側 |
81591-21010 |
US $119.39 |
||
|
81585
|
81585
81585-21010 Socket & Wire, Rear Lamp[11.1992 - 02.1995] CT190,ST19# |
81585-21010 |
US $21.55 |
||
|
81585
|
81585
81585-21020 Socket & Wire, Rear Lamp[11.1992 - 02.1995] CT190,ST19# ｱﾘ(ﾌｵｸﾞ ﾗﾝﾌﾟ) |
81585-21020 |
US $27.66 |
||
|
81589A
|
81589A
81589-21010
Gasket, Rear Lamp
[11.1992 - 01.1996] CT190,ST19# |
81589-21010 |
— | ||
|
81590A
|
81590A
81590-21010 Lamp Assy, Rear, Lh[11.1992 - 01.1996] CT190,ST19# |
81590-21010 |
US $136.86 |
||
|
9010506239
|
9010506239
90105-06239 New Genuine Part |
90105-06239 |
US $0.96 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.80 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
|
9046718013
|
9046718013
90467-18013 CLIP |
90467-18013 |
US $2.62 |
||
