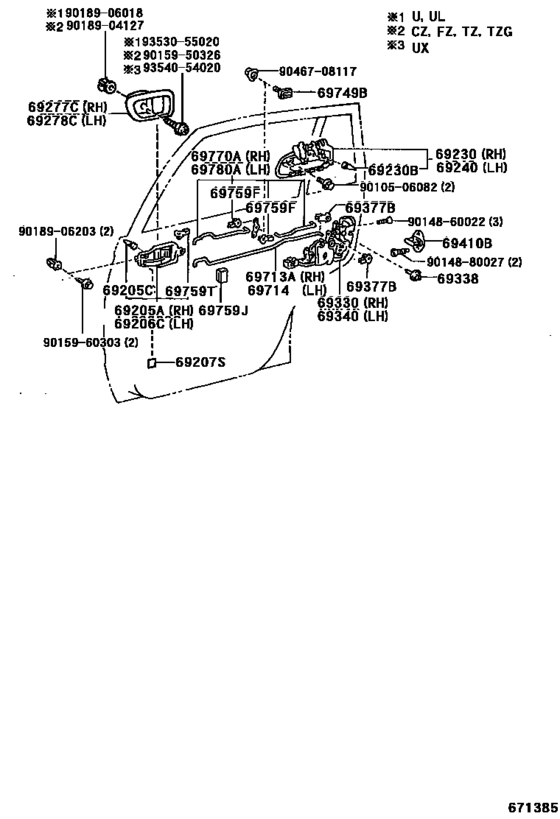

Rear Door Lock & Handle ([11.1992 - ] (9211- )) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205A
|
69205A
69205-20110-B0 Handle Sub-Assy, Front Door Inside, Rh[02.1994 - 01.1996] CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
69205-20110-B0 |
US $27.08 |
||
| replacement | |||||
|
69205A
|
69205A
69205-20110-C0 Handle Sub-Assy, Front Door Inside, Rh[02.1994 - 01.1996] CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
69205-20110-C0 |
US $26.79 |
||
|
69205A
|
69205A
69205-20110-C0 Handle Sub-Assy, Front Door Inside, Rh[11.1992 - 02.1994] CT19#,ET196,ST19# BLACK,TRIM2# |
69205-20110-C0 |
US $26.79 |
||
|
69205C
|
69205C
90541-04014 Cushion, Console Box[11.1992 -] AT191,CT19#,ET196,ST19# |
90541-04014 |
from US $1.60 |
||
|
69206C
|
69206C
69206-20110-B0 Handle Sub-Assy, Front Door Inside, Lh[02.1994 - 01.1996] CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
69206-20110-B0 |
US $27.08 |
||
| replacement | |||||
|
69206C
|
69206C
69206-20110-C0
Handle Sub-Assy, Front Door Inside, Lh
[02.1994 - 01.1996] CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
69206-20110-C0 |
— | ||
|
69206C
|
69206C
69206-20110-C0
Handle Sub-Assy, Front Door Inside, Lh
[11.1992 - 02.1994] CT19#,ET196,ST19# BLACK,TRIM2# |
69206-20110-C0 |
— | ||
|
69230
|
69230
69230-20220-A0 Handle Assy, Rear Door Outside, Rh[11.1992 - 01.1996] CT190,ST19# SUPER WHITE 2,040 |
69230-20220-A0 |
US $90.27 |
||
|
69230
|
69230
69230-20220-B1 Handle Assy, Rear Door Outside, Rh[02.1994 - 01.1996] CT190,ST19# LT.GRAIGE ME,1A2 |
69230-20220-B1 |
US $90.27 |
||
|
69230
|
69230
69230-20220-D1 Handle Assy, Rear Door Outside, Rh[11.1992 - 02.1994] CT190,ST19# DARK WINE MICA M,3K1 |
69230-20220-D1 |
US $90.27 |
||
|
69230
|
69230
69230-20220-D5 Handle Assy, Rear Door Outside, Rh[02.1994 - 08.1997] AT191,CT190,ST19# MAGENTA MC,3L3 |
69230-20220-D5 |
US $90.27 |
||
|
69230
|
69230
69230-20220-E1 Handle Assy, Rear Door Outside, Rh[11.1992 - 02.1994] CT190,ST19# LIGHT BEIGE ME,4M3 |
69230-20220-E1 |
US $90.27 |
||
|
69230
|
69230
69230-20220-G0 Handle Assy, Rear Door Outside, Rh[11.1992 - 01.1996] CT190,ST19# DK.GRAYISH OLIVE ME,6M7 |
69230-20220-G0 |
US $90.27 |
||
|
69230B
|
69230B
90541-04018 Cushion(For Front Door Inside Handle)[11.1992 -] AT191,CT19#,ET196,ST19# |
90541-04018 |
US $2.56 |
||
|
69240
|
69240
69240-20220-A0 Handle Assy, Rear Door Outside, Lh[11.1992 - 01.1996] CT190,ST19# SUPER WHITE 2,040 |
69240-20220-A0 |
US $90.27 |
||
|
69240
|
69240
69240-20220-B1 Handle Assy, Rear Door Outside, Lh[02.1994 - 01.1996] CT190,ST19# LT.GRAIGE ME,1A2 |
69240-20220-B1 |
US $90.27 |
||
|
69240
|
69240
69240-20220-D1 Handle Assy, Rear Door Outside, Lh[11.1992 - 02.1994] CT190,ST19# DARK WINE MICA M,3K1 |
69240-20220-D1 |
US $90.27 |
||
|
69240
|
69240
69240-20220-D5 Handle Assy, Rear Door Outside, Lh[02.1994 - 08.1997] AT191,CT190,ST19# MAGENTA MC,3L3 |
69240-20220-D5 |
US $90.27 |
||
|
69240
|
69240
69240-20220-E1 Handle Assy, Rear Door Outside, Lh[11.1992 - 02.1994] CT190,ST19# LIGHT BEIGE ME,4M3 |
69240-20220-E1 |
US $90.27 |
||
|
69240
|
69240
69240-20220-G0 Handle Assy, Rear Door Outside, Lh[11.1992 - 01.1996] CT190,ST19# DK.GRAYISH OLIVE ME,6M7 |
69240-20220-G0 |
US $90.27 |
||
|
69330
|
69330
69305-20040 Lock Assy, Rear Door, Rh[11.1992 - 01.1996] CT190,196,ET196,ST19#..CZ,FZ,UX |
69305-20040 |
US $202.38 |
||
|
69338
|
69338
69338-32010 Knob, Child Protector Lock Lever[11.1992 -] AT191,CT19#,ET196,ST19# |
69338-32010 |
from US $10.48 |
||
|
69340
|
69340
69306-20040 Lock Assy, Rear Door, Lh[11.1992 - 01.1996] CT190,196,ET196,ST19#..CZ,FZ,UX |
69306-20040 |
US $202.38 |
||
|
69377B
|
69377B
69759-24050 Snap, Hood Auxiliary Catch Hook Control Link[11.1992 - 02.1995] CT19#,ET196,ST19# 左側 |
69759-24050 |
from US $3.84 |
||
|
69377B
|
69377B
69759-24060 Snap(For Rear Door Lock)[11.1992 - 02.1995] CT19#,ET196,ST19# 右側 |
69759-24060 |
from US $4.64 |
||
|
69410B
|
69410B
69410-87001 Plate Assy, Front Door Lock Striker[11.1992 -] AT191,CT19#,ET196,ST19# |
69410-87001 |
from US $9.50 |
||
| replacement | |||||
|
69410B
|
69410B
69410-AA020 Plate Assy, Front Door Lock Striker[11.1992 -] AT191,CT19#,ET196,ST19# |
69410-AA020 |
US $37.29 |
||
|
69713A
|
69713A
69713-20140 Link, Rear Door Lock Remote Control, Rh[11.1992 -] AT191,CT19#,ET196,ST19# |
69713-20140 |
US $8.88 |
||
|
69714
|
69714
69714-20140 Link, Rear Door Lock Remote Control, Lh[11.1992 -] AT191,CT19#,ET196,ST19# |
69714-20140 |
US $8.88 |
||
|
69749B
|
69749B
69749-32030 Clamp, Front Door Lock Link[11.1992 -] AT191,CT19#,ET196,ST19# |
69749-32030 |
US $1.60 |
||
|
69759F
|
69759F
69759-20380
Snap, Door Lock Control Link, No.1
[11.1992 -] AT191,CT19#,ET196,ST19# ブラック |
69759-20380 |
— | ||
|
69759F
|
69759F
69759-24030 Snap, Door Inside Handle Link[11.1992 -] AT191,CT19#,ET196,ST19# レッド |
69759-24030 |
from US $2.80 |
||
|
69759J
|
69759J
69759-12060 Pad, Back Panel Silencer, Upper[11.1992 -] AT191,CT19#,ET196,ST19# 68 X 40 X 10 |
69759-12060 |
US $3.93 |
||
|
69759J
|
69759J
69759-20390 Silencer, Front Door Lock Link[11.1992 -] AT191,CT19#,ET196,ST19# ６０Ｘ４０Ｘ２０ |
69759-20390 |
US $6.12 |
||
|
69759T
|
69759T
69759-14050 Snap(For Rear Door Inside Handle)[11.1992 -] AT191,CT19#,ET196,ST19# 右側 |
69759-14050 |
from US $2.24 |
||
|
69759T
|
69759T
69759-24070 Snap(For Rear Door Inside Handle)[11.1992 -] AT191,CT19#,ET196,ST19# 左側 |
69759-24070 |
US $2.88 |
||
|
69770A
|
69770A
69770-20090 Link Assy, Rear Door Inside Locking, Rh[11.1992 -] AT191,CT19#,ET196,ST19# |
69770-20090 |
US $16.45 |
||
|
69780A
|
69780A
69780-20090 Link Assy, Rear Door Inside Locking, Lh[11.1992 -] AT191,CT19#,ET196,ST19# |
69780-20090 |
US $16.45 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9015950326
|
9015950326
90159-50326
Screw
|
90159-50326 |
— | ||
| replacement | |||||
|
9015950326
|
9015950326
93540-16025 SCREW |
93540-16025 |
US $2.08 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9018904127
|
9018904127
90189-04127 New Genuine Part |
90189-04127 |
US $1.05 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9018906203
|
9018906203
90189-06203 GROMMET SCREW |
90189-06203 |
from US $0.80 |
||
|
9046708117
|
9046708117
90467-08117 Clamp, Rear Door Lock |
90467-08117 |
US $1.44 |
||
|
9353055020
|
9353055020
93530-55020 SCREW |
93530-55020 |
US $1.76 |
||
|
9354054020
|
9354054020
93540-54020 New Genuine Part |
93540-54020 |
US $1.12 |
||
