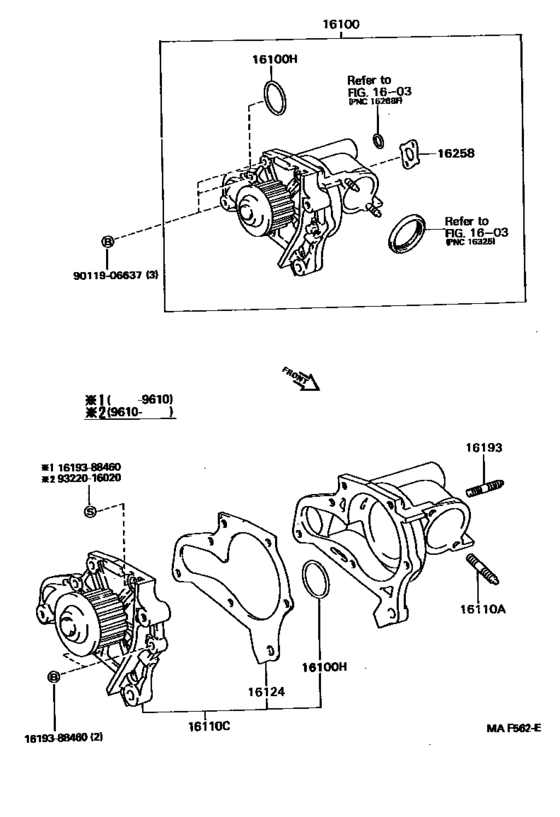

Water Pump ([11.1992 - ] (9211- )3SFE,4SFE) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-79185
Pump Assy, Engine Water
[11.1992 -] 3SFE,4SFE..ST19# |
16100-79185 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-79186 Pump Assy, Engine Water[11.1992 -] 3SFE,4SFE..ST19# |
16100-79186 |
from US $176.85 |
||
|
16100H
|
16100H
90301-37005 Ring, O(For Water Pump)[11.1992 -] 3S#,4SFE..ST19# |
90301-37005 |
from US $2.11 |
||
|
16110A
|
16110A
16193-63010 Bolt, Stud(For Water Outlet Setting)[11.1992 -] 3S#,4SFE..ST19# |
16193-63010 |
US $5.60 |
||
|
16110C
|
16110C
16110-79025
Pump Assy, Water, W/o Coupling
[11.1992 - 10.1996] 3SFE,4SFE..ST19# |
16110-79025 |
— | ||
| replacements | |||||
|
16110C
|
16110C
16110-79026 Pump Assy, Water, W/o Coupling[11.1992 - 10.1996] 3SFE,4SFE..ST19# |
16110-79026 |
from US $124.10 |
||
|
16110C
|
16110C
93220-16020 SCREW[11.1992 - 10.1996] 3SFE,4SFE..ST19# |
93220-16020 |
US $4.16 |
||
|
16124
|
16124
16124-74020 Gasket, Water Pump Cover[11.1992 - 09.1993] 3SFE,4SFE..ST19# |
16124-74020 |
from US $6.71 |
||
|
16124
|
16124
16124-88460 Gasket, Water Pump Cover[09.1993 -] 3S#,4SFE..ST19# |
16124-88460 |
from US $8.99 |
||
|
16193
|
16193
90029-01500 Bolt, Stud(For Water Pump Cover)[11.1992 -] 3S#,4SFE..ST19# |
90029-01500 |
US $1.49 |
||
|
16258
|
16258
16258-74020 Gasket(For Heater Return)[11.1992 - 09.1993] 3SFE,4SFE..ST19# |
16258-74020 |
US $7.72 |
||
| replacement | |||||
|
16258
|
16258
16258-74021 Gasket(For Heater Return)[11.1992 - 09.1993] 3SFE,4SFE..ST19# |
16258-74021 |
from US $4.64 |
||
|
16258
|
16258
16258-74021 Gasket(For Heater Return)[09.1993 -] 3SFE,4SFE..ST19# |
16258-74021 |
from US $4.64 |
||
|
1619388460
|
1619388460
16193-88460 Bolt, Stud(for Water Pump Cover) |
16193-88460 |
US $4.64 |
||
|
9011906637
|
9011906637
90119-06637 Bolt(For Cylinder Head Cover) |
90119-06637 |
from US $1.07 |
||
|
9322016020
|
9322016020
93220-16020 SCREW |
93220-16020 |
US $4.16 |
||
