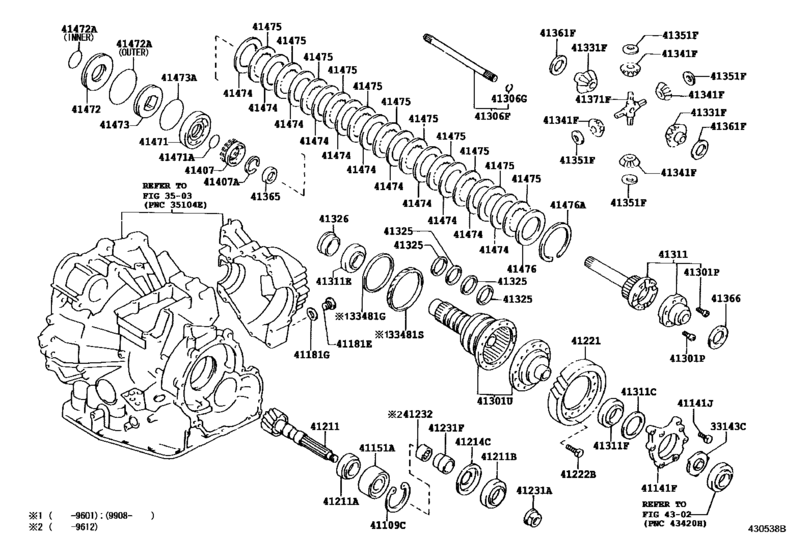

Front Axle Housing & Differential ([11.1992 - 08.1997] A540H (9211-9708)ST195..4FC ; (9908- )ST198) Diagram Toyota CALDINA
- Year
- 1995 - 1997
- Sales region
- Japan
- Frame
- ST195
- grade
- TZG
- body
- WG
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 02.1995
- To
- 08.1997
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33143C
|
33143C
33143-12010
Baffle, Front Differential Oil
[11.1992 -] CT198,199,ST195,198 |
33143-12010 |
— | ||
|
33481G
|
33481G
90520-99006 Ring, Shaft Snap (For Atm Speedometer Drive Gear)[11.1992 - 01.1996] ST195..4FC |
90520-99006 |
US $2.33 |
||
|
33481S
|
33481S
33481-32050
Gear, Speedometer Drive (Atm)
[11.1992 - 01.1996] ST195..4FC 歯数＝２９，マーク無し |
33481-32050 |
— | ||
|
41109C
|
41109C
90521-79008 Ring, Hole Snap (For Diff. Drive Pinion Bearing Cage)[11.1992 -] ST195,198..4FC |
90521-79008 |
US $3.20 |
||
|
41141F
|
41141F
41101-32030 Retainer, Front Differential Side Bearing[11.1992 -] ST195,198..4FC |
41101-32030 |
US $77.17 |
||
|
41141J
|
41141J
90105-08331 Bolt (For Front Differential Oil Seal Retainer)[11.1992 -] ST195,198..4FC ＊８−１．２５ＰＸ３６−２３ |
90105-08331 |
US $1.75 |
||
|
41151A
|
41151A
41151-32031
Cage, Diff Drive Pinion Taper Bearing
[11.1992 -] ST195,198..4FC |
41151-32031 |
— | ||
|
41181E
|
41181E
90341-18021 Plug, Filler(Hv)[11.1992 - 06.2002] ET196,ST195,198..ATM |
90341-18021 |
from US $2.44 |
||
|
41181G
|
41181G
90430-18008 Gasket[02.1993 - 06.2002] ET196,ST195,198..ATM |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
41181G
|
41181G
90430-T0021 Gasket(For Manual Transmission Filler Plug)[02.1993 - 06.2002] ET196,ST195,198..ATM |
90430-T0021 |
US $1.15 |
||
|
41211
|
41211
41211-32072 Pinion, Differential Drive[11.1992 -] ST195,198..4FC |
41211-32072 |
US $253.34 |
||
|
41211A
|
41211A
90366-36003
Bearing, Tapered Roller (For Front Drive Pinion Front)
[11.1992 -] ST195,198..4FC |
90366-36003 |
— | ||
|
41211B
|
41211B
90366-40051 Bearing, Tapered Roller (For Front Drive Pinion Rear)[11.1992 -] ST195,198..4FC |
90366-40051 |
US $23.94 |
||
|
41214C
|
41214C
41214-32020 Slinger, Front Differential Drive Pinion Oil[11.1992 -] ST195,198..4FC |
41214-32020 |
US $3.49 |
||
|
41221
|
41221
41221-32070 Gear, Front Differential Ring[11.1992 - 06.2002] ST195,198..4FC |
41221-32070 |
US $171.81 |
||
|
41222B
|
41222B
90105-12150 Bolt (For Rear Differential Ring Gear Set)[11.1992 - 06.2002] ST195,198..4FC |
90105-12150 |
US $4.16 |
||
|
41231A
|
41231A
90179-24006 Nut, Drive Pinion Lock[11.1992 -] ST195,198..4FC |
90179-24006 |
US $3.16 |
||
|
41231F
|
41231F
41231-32020
Spacer, Front Differential Drive Pinion Bearing
[11.1992 - 12.1996] ST195..4FC |
41231-32020 |
— | ||
|
41231F
|
41231F
41231-45010
Spacer, Front Differential Drive Pinion Bearing
[12.1996 -] ST195,198..4FC |
41231-45010 |
— | ||
|
41232
|
41232
41232-32011 Spacer, Drive Pinion Bearing, No.2[02.1995 - 12.1996] ST195..4FC |
41232-32011 |
US $6.41 |
||
|
41301P
|
41301P
90149-80017 Screw(For Front Differential Case)[11.1992 -] ST195,198..4FC |
90149-80017 |
US $1.60 |
||
|
41301U
|
41301U
41301-32040 Case Sub-Assy, Front Differential Ring Gear Mounting[11.1992 -] ST195,198..4FC |
41301-32040 |
US $352.35 |
||
|
41306F
|
41306F
41306-32010 Shaft Sub-Assy, Differential Side Gear Inter[11.1992 -] CT198,199,ST195,198 |
41306-32010 |
US $136.86 |
||
|
41306G
|
41306G
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[11.1992 -] CT198,199,ST195,198 |
90521-26004 |
from US $1.60 |
||
|
41311
|
41311
41302-32030 Case, Front Differential[11.1992 - 06.2002] ST195,198..4FC |
41302-32030 |
US $266.45 |
||
|
41311C
|
41311C
90564-76001 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．００，マーク ０ |
90564-76001 |
US $4.02 |
||
|
41311C
|
41311C
90564-76002 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．０５，マーク １ |
90564-76002 |
US $4.08 |
||
|
41311C
|
41311C
90564-76003 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．１０，マーク ２ |
90564-76003 |
US $4.08 |
||
|
41311C
|
41311C
90564-76004 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．１５，マーク ３ |
90564-76004 |
US $4.08 |
||
|
41311C
|
41311C
90564-76005 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．２０，マーク ４ |
90564-76005 |
US $5.53 |
||
|
41311C
|
41311C
90564-76006 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．２５，マーク ５ |
90564-76006 |
US $5.53 |
||
|
41311C
|
41311C
90564-76007 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．３０，マーク ６ |
90564-76007 |
US $5.53 |
||
|
41311C
|
41311C
90564-76008 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．３５，マーク ７ |
90564-76008 |
US $5.53 |
||
|
41311C
|
41311C
90564-76009 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．４０，マーク ８ |
90564-76009 |
US $5.53 |
||
|
41311C
|
41311C
90564-76010 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．４５，マーク ９ |
90564-76010 |
US $5.53 |
||
|
41311C
|
41311C
90564-76011 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．５０，マーク Ａ |
90564-76011 |
US $5.53 |
||
|
41311C
|
41311C
90564-76012 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．５５，マーク Ｂ |
90564-76012 |
US $5.53 |
||
|
41311C
|
41311C
90564-76013 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．６０，マーク Ｃ |
90564-76013 |
US $5.53 |
||
|
41311C
|
41311C
90564-76014 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．６５，マーク Ｄ |
90564-76014 |
US $5.53 |
||
|
41311C
|
41311C
90564-76015 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．７０，マーク Ｅ |
90564-76015 |
US $5.53 |
||
|
41311C
|
41311C
90564-76016 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．７５，マーク Ｆ |
90564-76016 |
US $5.53 |
||
|
41311C
|
41311C
90564-76017 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．８０，マーク Ｇ |
90564-76017 |
US $5.53 |
||
|
41311C
|
41311C
90564-76018 Shim(For Differential Case)[11.1992 -] CT198,199,ST195,198 厚さ＝２．８５，マーク Ｈ |
90564-76018 |
US $5.53 |
||
|
41311E
|
41311E
90366-67004 Bearing, Tapered Roller (For Front Differential Case Front)[11.1992 - 06.2002] ST195,198..4FC |
90366-67004 |
US $28.65 |
||
|
41311F
|
41311F
90366-55034
Bearing, Tapered Roller (For Front Differential Case Rear)
[11.1992 - 06.2002] ST195,198..4FC |
90366-55034 |
— | ||
|
41325
|
41325
41325-12010
Ring, Front Differential Ring Gear Mounting Case Oil Seal
[11.1992 -] ST195,198..4FC |
41325-12010 |
— | ||
|
41326
|
41326
41326-32010 Sleeve, Ring Gear Mounting Case[11.1992 -] ST195,198..4FC |
41326-32010 |
US $26.06 |
||
|
41331F
|
41331F
41331-12030 Gear, Center Differential Side[11.1992 - 06.2002] CT198,199,ST195,198 |
41331-12030 |
US $69.91 |
||
|
41341F
|
41341F
41341-20011 Pinion, Rear Differential[11.1992 - 06.2002] CT198,199,ST195,198 |
41341-20011 |
US $109.58 |
||
|
41351F
|
41351F
41351-32030
Washer, Front Differential Pinion Thrust
[11.1992 - 06.2002] ST195,198..4FC |
41351-32030 |
— | ||
|
41361F
|
41361F
41361-12340 Washer, Center Differential Side Gear Thrust, No.1[11.1992 - 06.2002] ST195,198..4FC 厚さ＝１．００，マーク Ｂ |
41361-12340 |
from US $2.91 |
||
|
41361F
|
41361F
41361-12350 Washer, Center Differential Side Gear Thrust, No.1[11.1992 - 06.2002] ST195,198..4FC 厚さ＝１．０５，マーク Ｃ |
41361-12350 |
US $2.91 |
||
|
41361F
|
41361F
41361-12360 Washer, Center Differential Side Gear Thrust, No.1[11.1992 - 06.2002] ST195,198..4FC 厚さ＝１．１０，マーク Ｄ |
41361-12360 |
US $2.91 |
||
|
41361F
|
41361F
41361-12370
Washer, Center Differential Side Gear Thrust, No.1
[11.1992 - 06.2002] ST195,198..4FC 厚さ＝１．１５，マーク Ｅ |
41361-12370 |
— | ||
|
41361F
|
41361F
41361-12380 Washer, Center Differential Side Gear Thrust, No.1[11.1992 - 06.2002] ST195,198..4FC 厚さ＝１．２０，マーク Ｆ |
41361-12380 |
US $2.91 |
||
|
41361F
|
41361F
41361-12390 Washer, Center Differential Side Gear Thrust, No.1[11.1992 - 06.2002] ST195,198..4FC 厚さ＝１．２５，マーク Ｇ |
41361-12390 |
US $2.91 |
||
|
41361F
|
41361F
41361-12400 Washer, Center Differential Side Gear Thrust, No.2[11.1992 - 06.2002] ST195,198..4FC 厚さ＝１．３０，マーク Ｈ |
41361-12400 |
US $2.91 |
||
|
41365
|
41365
41365-12010 Washer, Front Differential Side Trust, No.1[11.1992 -] ST195,198..4FC |
41365-12010 |
US $20.68 |
||
|
41366
|
41366
41366-12010 Washer, Front Differential Side Trust, No.2[11.1992 -] ST195,198..4FC |
41366-12010 |
US $4.66 |
||
|
41371F
|
41371F
41371-32020 Spider, Front Differential[11.1992 -] ST195,198..4FC |
41371-32020 |
US $67.70 |
||
|
41407
|
41407
41407-32010 Spring Sub-Assy, Differential Lock Piston Return[11.1992 -] ST195,198..4FC |
41407-32010 |
US $24.61 |
||
|
41407A
|
41407A
90520-43008 Ring, Shaft Snap (For Diff Lock Piston Return Spring)[11.1992 -] ST195,198..4FC |
90520-43008 |
US $3.20 |
||
|
41471
|
41471
41471-32010 Piston, Differential Lock Clutch, No.1[11.1992 -] ST195,198..4FC |
41471-32010 |
US $27.23 |
||
|
41471A
|
41471A
90301-46002 Ring, O (For Forward Clutch Piston)[11.1992 -] ST195,198..4FC |
90301-46002 |
US $9.60 |
||
|
41472
|
41472
41472-32010 Piston, Differential Lock Clutch, No.2[11.1992 -] ST195,198..4FC |
41472-32010 |
US $23.30 |
||
|
41472A
|
41472A
90301-59004 Ring, O (For Forward Clutch Piston)[11.1992 -] ST195,198..4FC 内側 |
90301-59004 |
US $3.67 |
||
|
41472A
|
41472A
90301-99055 Ring, O (For Differential Lock Clutch Piston No.2)[11.1992 -] ST195,198..4FC 外側 |
90301-99055 |
US $4.66 |
||
|
41473
|
41473
41473-32010 Sleeve, Differential Lock Clutch Piston Reaction[11.1992 -] ST195,198..4FC |
41473-32010 |
US $23.30 |
||
|
41473A
|
41473A
90301-96001 Ring, O (For Piston Reaction Sleeve)[11.1992 -] ST195,198..4FC |
90301-96001 |
US $4.66 |
||
|
41474
|
41474
41474-32011 Plate, Differential Lock Clutch[11.1992 - 11.1996] ST195..4FC |
41474-32011 |
US $25.19 |
||
|
41474
|
41474
41474-32020 Plate, Differential Lock Clutch[11.1996 - 08.1997] ST195..4FC |
41474-32020 |
US $12.38 |
||
|
41475
|
41475
41475-32020 Disc, Differential Lock Clutch[11.1992 - 11.1996] ST195..4FC |
41475-32020 |
US $24.61 |
||
|
41475
|
41475
41475-32030 Disc, Differential Lock Clutch[11.1996 - 08.1997] ST195..4FC |
41475-32030 |
US $5.39 |
||
|
41476
|
41476
41476-32011 Flange, Differential Lock Clutch[11.1992 -] ST195,198..4FC |
41476-32011 |
US $59.55 |
||
|
41476A
|
41476A
90521-99061 Ring, Hole Snap (For Differential Lock Clutch Flange)[11.1992 -] ST195,198..4FC |
90521-99061 |
US $1.75 |
||
