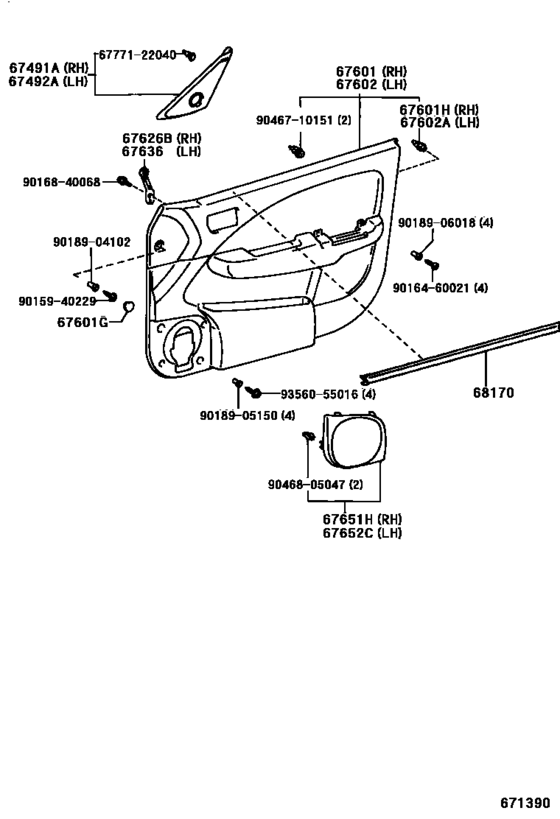

Front Door Panel & Glass ([01.1996 - ] (9601- )CZ,FZ,TZ,TZG,UX) Diagram Toyota CALDINA
- Year
- 1995 - 1997
- Sales region
- Japan
- Frame
- ST195
- grade
- TZG
- body
- WG
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 02.1995
- To
- 08.1997
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-20250 Garnish, Front Door Lower Frame Bracket, Rh[11.1992 - 01.1996] CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
67491-20250 |
US $17.04 |
||
|
67491A
|
67491A
67491-20270-C0 Garnish, Front Door Lower Frame Bracket, Rh[02.1994 - 01.1996] CT190,ST19#..CZ,TZ,TZG ｱﾘ(ﾂｲ-ﾀ),BLACK,TRIM1# |
67491-20270-C0 |
US $16.60 |
||
|
67491A
|
67491A
67491-21030 Garnish, Front Door Lower Frame Bracket, Rh[01.1996 -] AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
67491-21030 |
US $16.89 |
||
|
67491A
|
67491A
67491-21040-C0 Garnish, Front Door Lower Frame Bracket, Rh[01.1996 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG ｱﾘ(ﾂｲ-ﾀ),BLACK,TRIM1# |
67491-21040-C0 |
US $16.89 |
||
|
67492A
|
67492A
67492-20270 Garnish, Front Door Lower Frame Bracket, Lh[11.1992 - 01.1996] CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
67492-20270 |
US $17.04 |
||
|
67492A
|
67492A
67492-20290-C0 Garnish, Front Door Lower Frame Bracket, Lh[02.1994 - 01.1996] CT190,ST19#..CZ,TZ,TZG ｱﾘ(ﾂｲ-ﾀ),BLACK,TRIM1# |
67492-20290-C0 |
US $17.04 |
||
|
67492A
|
67492A
67492-21020 Garnish, Front Door Lower Frame Bracket, Lh[01.1996 -] AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
67492-21020 |
US $16.89 |
||
|
67492A
|
67492A
67492-21030-C0 Garnish, Front Door Lower Frame Bracket, Lh[01.1996 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG ｱﾘ(ﾂｲ-ﾀ),BLACK,TRIM1# |
67492-21030-C0 |
US $16.89 |
||
|
67601
|
67601
67610-21021-B2 Board Sub-Assy, Front Door Trim, Rh[02.1995 - 01.1996] ST195..TZG SHADOW GRAY,TRIM1# |
67610-21021-B2 |
US $662.48 |
||
|
67601
|
67601
67610-21140-B1 Board Sub-Assy, Front Door Trim, Rh[01.1996 - 08.1997] ST195..TZG SHADOW GRAY,TRIM1# |
67610-21140-B1 |
US $634.82 |
||
|
67601
|
67601
67610-21180-B1 Board Sub-Assy, Front Door Trim, Rh[01.1996 - 08.1997] ST19# ｴｱﾘｱﾙ,SHADOW GRAY,TRIM1# |
67610-21180-B1 |
US $634.82 |
||
|
67601G
|
67601G
90950-01503-P0 Plug, Hole(For Front Door Trim Board)[02.1994 - 01.1996] CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX SHADOW GRAY,TRIM1# |
90950-01503-P0 |
US $2.62 |
||
| replacement | |||||
|
67601G
|
67601G
90950-01503-C0 Plug, Hole (For Roof Side Inner Garnish)[02.1994 - 01.1996] CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX SHADOW GRAY,TRIM1# |
90950-01503-C0 |
US $2.88 |
||
|
67601G
|
67601G
90950-01746-P0
Plug, Hole(For Front Door Trim Board)
[01.1996 -] AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX SHADOW GRAY,TRIM1# |
90950-01746-P0 |
— | ||
| replacement | |||||
|
67601G
|
67601G
90950-01746-22 Plug, Hole(For Front Door Trim Board)[01.1996 -] AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX SHADOW GRAY,TRIM1# |
90950-01746-22 |
from US $2.72 |
||
|
67601H
|
67601H
67771-20110 Retainer(For Front Door Trim Board)[11.1992 - 01.1996] CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
67771-20110 |
US $2.88 |
||
|
67601H
|
67601H
67771-21010 Retainer, Door Trim, Rh[01.1996 -] AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX WHITE |
67771-21010 |
US $3.35 |
||
|
67601H
|
67601H
67771-28030 Retainer(For Front Door Trim Board)[01.1996 -] AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX イエロー |
67771-28030 |
US $3.52 |
||
|
67602
|
67602
67620-21011-B2 Board Sub-Assy, Front Door Trim, Lh[02.1995 - 01.1996] ST195..TZG SHADOW GRAY,TRIM1# |
67620-21011-B2 |
US $624.62 |
||
|
67602
|
67602
67620-21130-B0 Board Sub-Assy, Front Door Trim, Lh[01.1996 - 08.1997] ST195..TZG SHADOW GRAY,TRIM1# |
67620-21130-B0 |
US $634.82 |
||
|
67602
|
67602
67620-21170-B0 Board Sub-Assy, Front Door Trim, Lh[01.1996 - 08.1997] ST19# ｴｱﾘｱﾙ,SHADOW GRAY,TRIM1# |
67620-21170-B0 |
US $634.82 |
||
|
67602A
|
67602A
67771-20110 Retainer(For Front Door Trim Board)[11.1992 - 01.1996] CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
67771-20110 |
US $2.88 |
||
|
67602A
|
67602A
67771-21010 Retainer, Door Trim, Rh[01.1996 -] AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX WHITE |
67771-21010 |
US $3.35 |
||
|
67602A
|
67602A
67771-28030 Retainer(For Front Door Trim Board)[01.1996 -] AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX イエロー |
67771-28030 |
US $3.52 |
||
|
67626B
|
67626B
67626-20070 Bracket, Door Trim, No.2 Rh[11.1992 -] AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
67626-20070 |
US $3.64 |
||
|
67636
|
67636
67636-20020 Bracket, Door Trim, No.2 Lh[11.1992 -] AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
67636-20020 |
US $3.64 |
||
|
67651H
|
67651H
67651-21010-B0 Grille, Speaker Door, Rh[02.1994 -] AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
67651-21010-B0 |
US $45.43 |
||
| replacement | |||||
|
67651H
|
67651H
67651-21010-C0 Grille, Speaker Door, Rh[02.1994 -] AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
67651-21010-C0 |
US $45.43 |
||
|
67652C
|
67652C
67652-21020-B0 Grille, Speaker Door, Lh[02.1994 -] AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX SHADOW GRAY,TRIM1# |
67652-21020-B0 |
US $45.43 |
||
|
68170
|
68170
68171-20060
Weatherstrip Assy, Front Door Glass, Inner
[11.1992 - 06.1997] AT191,CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 右側 |
68171-20060 |
— | ||
| replacement | |||||
|
68170
|
68170
68171-20090
Weatherstrip Assy, Front Door Glass, Inner
[11.1992 - 06.1997] AT191,CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 右側 |
68171-20090 |
— | ||
|
68170
|
68170
68171-20090
Weatherstrip Assy, Front Door Glass, Inner
[06.1997 -] AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX 右側 |
68171-20090 |
— | ||
|
68170
|
68170
68172-20050
Weatherstrip Assy, Front Door Glass, Inner
[11.1992 - 06.1997] AT191,CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 左側 |
68172-20050 |
— | ||
| replacement | |||||
|
68170
|
68170
68172-20080
Weatherstrip Assy, Front Door Glass, Inner
[11.1992 - 06.1997] AT191,CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 左側 |
68172-20080 |
— | ||
|
68170
|
68170
68172-20080
Weatherstrip Assy, Front Door Glass, Inner
[06.1997 -] AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX 左側 |
68172-20080 |
— | ||
|
6777122040
|
6777122040
67771-22040 Retainer (For Quarter Inside Trim Board) |
67771-22040 |
US $3.36 |
||
|
9015940229
|
9015940229
90159-40229 SCREW WWASHER |
90159-40229 |
US $1.92 |
||
|
9016460021
|
9016460021
90164-60021 SCREW BINDING |
90164-60021 |
from US $0.72 |
||
|
9016840068
|
9016840068
90168-40068 SCREW |
90168-40068 |
from US $1.92 |
||
|
9018904102
|
9018904102
90189-04102 GROMMET |
90189-04102 |
from US $1.15 |
||
|
9018905150
|
9018905150
90189-05150 GROMMET SCREW |
90189-05150 |
US $1.46 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9046710151
|
9046710151
90467-10151 Clip(For Back Door Trim) |
90467-10151 |
US $1.93 |
||
|
9046805047
|
9046805047
90468-05047 CLIP |
90468-05047 |
US $1.44 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.70 |
||
