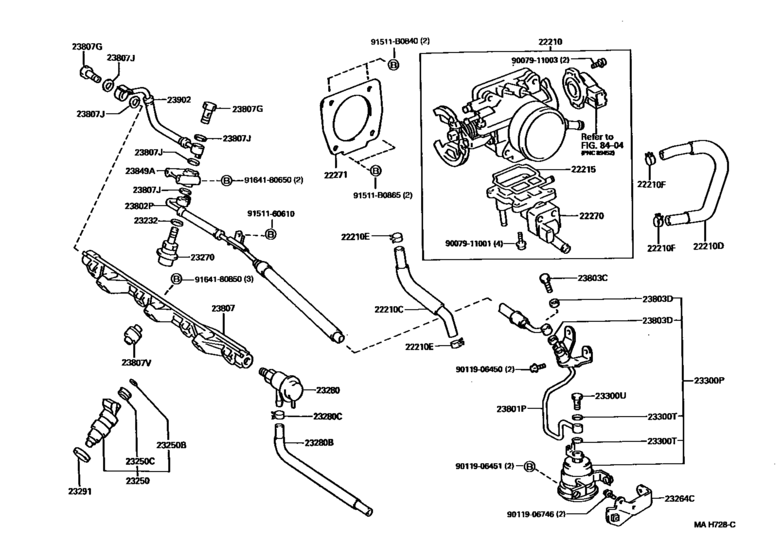

Fuel Injection System ([02.1995 - 01.1996] (9502-9601)3SGE) Diagram Toyota CALDINA
- Year
- 1995 - 1997
- Sales region
- Japan
- Frame
- ST195
- grade
- TZG
- body
- WG
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 02.1995
- To
- 08.1997
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-7A060 Body Assy, Throttle[02.1995 - 01.1996] 3SGE..ST195 |
22210-7A060 |
US $1,218.67 |
||
|
22210
|
22210
22210-7A550 Body Assy, Throttle[01.1996 - 08.1997] 3SGE..ST195 |
22210-7A550 |
US $1,218.67 |
||
|
22210C
|
22210C
16264-88460 Hose, Water By-Pass, No.1[02.1995 - 08.1997] 3SGE..ST195 |
16264-88460 |
US $16.95 |
||
|
22210D
|
22210D
16267-88460
Hose, Water By-Pass, No.1
[02.1995 - 08.1997] 3SGE..ST195 |
16267-88460 |
— | ||
|
22210E
|
22210E
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[02.1995 - 08.1997] 3SGE..ST195 |
90467-13128 |
from US $1.44 |
||
|
22210F
|
22210F
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[02.1995 - 08.1997] 3SGE..ST195 |
90467-13128 |
from US $1.44 |
||
|
22215
|
22215
22215-74380 Gasket, Throttle Body Cover[02.1995 - 08.1997] 3SGE..ST195 |
22215-74380 |
from US $3.78 |
||
|
22270
|
22270
22270-74210
Valve Assy, Idle Speed Control(For Thlottle Body)
[02.1995 - 01.1996] 3SGE..ST195 |
22270-74210 |
— | ||
|
22270
|
22270
22270-74320 Valve Assy, Idle Speed Control(For Thlottle Body)[01.1996 - 08.1997] 3SGE..ST195 |
22270-74320 |
US $598.42 |
||
|
22271
|
22271
22271-88460
Gasket, Throttle Body
[02.1995 - 04.1996] 3SGE..ST195 |
22271-88460 |
— | ||
| replacement | |||||
|
22271
|
22271
22271-88461 Gasket, Throttle Body[02.1995 - 04.1996] 3SGE..ST195 |
22271-88461 |
from US $1.21 |
||
|
22271
|
22271
22271-88461 Gasket, Throttle Body[04.1996 - 08.1997] 3SGE..ST195 |
22271-88461 |
from US $1.21 |
||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[11.1992 - 05.1995] 3S#,4SFE..ST19# |
23232-41081 |
from US $1.40 |
||
|
23250
|
23250
23209-74160
Injector Assy, Fuel
[02.1995 - 08.1997] 3SGE..ST195 |
23209-74160 |
— | ||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[11.1992 - 08.1997] 3S#,4SFE..ST19# |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[11.1992 -] 3S#,4SFE..ST19# |
90480-13005 |
from US $2.50 |
||
|
23264C
|
23264C
23264-74060 Bracket, Fuel Filter[02.1995 - 01.1996] 3S#,4SFE..ST19# |
23264-74060 |
US $12.38 |
||
|
23270
|
23270
23270-70060
Damper Assy, Fuel Pressure Pulsation
[02.1995 - 01.1996] 3SGE..ST195 |
23270-70060 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-50012 Damper Assy, Fuel Pressure Pulsation[02.1995 - 01.1996] 3SGE..ST195 |
23270-50012 |
from US $80.18 |
||
|
23280
|
23280
23280-74110
Regulator Assy, Fuel Pressure
[02.1995 - 08.1997] 3SGE..ST195 |
23280-74110 |
— | ||
| replacement | |||||
|
23280
|
23280
23280-74120
Regulator Assy, Fuel Pressure
[02.1995 - 08.1997] 3SGE..ST195 |
23280-74120 |
— | ||
|
23280B
|
23280B
23271-88462 Hose, Fuel Pressure Regulator Return[02.1995 - 01.1996] 3SGE..ST195 |
23271-88462 |
US $30.87 |
||
| replacement | |||||
|
23280B
|
23280B
23271-88464 Hose, Fuel Pressure Regulator Return[02.1995 - 01.1996] 3SGE..ST195 |
23271-88464 |
US $31.01 |
||
|
23280B
|
23280B
23271-88463 Hose, Fuel Pressure Regulator Return[01.1996 - 08.1997] 3SGE..ST195 |
23271-88463 |
US $30.87 |
||
|
23280C
|
23280C
90467-11065 Clip(For Fuel Hose No.2)[02.1995 - 08.1997] 3SGE..ST195 |
90467-11065 |
US $2.56 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[11.1992 -] 5EFE..ET196; 3S#,4SFE..ST19# |
23291-41010 |
from US $2.77 |
||
|
23300P
|
23300P
23300-19465 Filter, Fuel(For Efi)[01.1996 -] 5EFE..ET196; 3S#..ST19# |
23300-19465 |
US $103.38 |
||
|
23300P
|
23300P
23300-79335 Filter, Fuel(For Efi)[11.1992 - 01.1996] 3S#,4SFE..ST19# |
23300-79335 |
US $103.38 |
||
|
23300T
|
23300T
90430-12026 Gasket[11.1992 -] 5EFE..ET196; 3S#,4SFE..ST19# |
90430-12026 |
from US $0.94 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[11.1992 - 08.1996] 5EFE..ET196; 3S#,4SFE..ST19# |
90401-12097 |
from US $3.08 |
||
|
23300U
|
23300U
96341-11200 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1996 -] 5EFE..ET196; 3S#..ST19# |
96341-11200 |
from US $2.72 |
||
|
23801P
|
23801P
23801-74070 Pipe Sub-Assy, Fuel, No.1[02.1995 - 01.1996] 3S#,4SFE..ST19# |
23801-74070 |
US $99.01 |
||
|
23802P
|
23802P
23903-88463 Tube Sub-Assy, Fuel, No.3[02.1995 - 01.1996] 3SGE..ST195 |
23903-88463 |
US $151.42 |
||
|
23803C
|
23803C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[02.1995 - 01.1996] 3SGE..ST195 |
90401-12097 |
from US $3.08 |
||
|
23803D
|
23803D
90430-12026 Gasket[02.1995 - 01.1996] 3SGE..ST195 |
90430-12026 |
from US $0.94 |
||
|
23807
|
23807
23814-88460 Pipe Sub-Assy, Fuel Delivery[02.1995 - 08.1997] 3SGE..ST195 |
23814-88460 |
US $142.69 |
||
|
23807G
|
23807G
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[01.1996 - 06.1996] 3SGE..ST195 |
90401-12097 |
from US $3.08 |
||
|
23807G
|
23807G
96341-11200 Bolt, Union(For Turbo Oil Inlet Pipe)[06.1996 - 08.1997] 3SGE..ST195 |
96341-11200 |
from US $2.72 |
||
|
23807J
|
23807J
90430-12026 Gasket[01.1996 - 08.1997] 7AFE..AT191; 3SGE..ST195 |
90430-12026 |
from US $0.94 |
||
|
23807V
|
23807V
90561-08051 Spacer, No.1(For Delivery Pipe)[02.1995 - 08.1997] 3SGE..ST195 |
90561-08051 |
US $3.04 |
||
|
23849A
|
23849A
23849-88461 Support, Fuel Pipe[02.1995 - 01.1996] 3SGE..ST195 |
23849-88461 |
US $21.99 |
||
|
23902
|
23902
23902-88463 Tube Sub-Assy, Fuel[02.1995 - 01.1996] 3SGE..ST195 |
23902-88463 |
US $135.41 |
||
|
23902
|
23902
23902-88465 Tube Sub-Assy, Fuel[01.1996 - 08.1997] 3SGE..ST195 |
23902-88465 |
US $234.42 |
||
|
91511B0840
|
91511B0840
91511-B0840
Bolt(For Alternator)
|
91511-B0840 |
— | ||
| replacement | |||||
|
91511B0840
|
91511B0840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
91511B0865
|
91511B0865
91511-B0865 New Genuine Part |
91511-B0865 |
US $3.20 |
||
|
9007911001
|
9007911001
90079-11001 SCREW |
90079-11001 |
US $1.92 |
||
|
9007911003
|
9007911003
90079-11003 New Genuine Part |
90079-11003 |
from US $1.41 |
||
|
9011906450
|
9011906450
90119-06450
New Genuine Part
|
90119-06450 |
— | ||
| replacement | |||||
|
9011906450
|
9011906450
90119-06442 BOLT WWASHER |
90119-06442 |
from US $1.01 |
||
|
9011906451
|
9011906451
90119-06451 BOLT WWASHER |
90119-06451 |
from US $0.80 |
||
|
9011906746
|
9011906746
90119-06746 New Genuine Part |
90119-06746 |
US $1.60 |
||
| replacement | |||||
|
9011906746
|
9011906746
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.76 |
||
|
9164180650
|
9164180650
91641-80650 New Genuine Part |
91641-80650 |
US $1.46 |
||
|
9164180850
|
9164180850
91641-80850
New Genuine Part
|
91641-80850 |
— | ||
