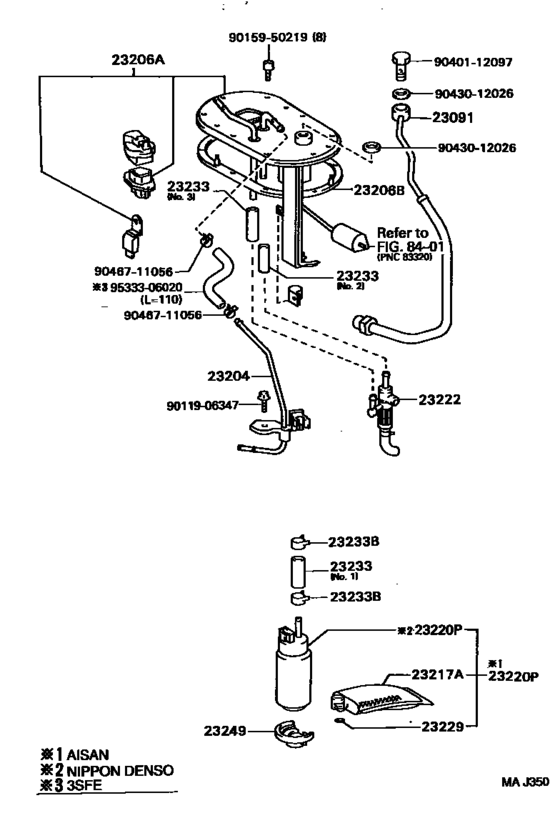

Fuel Injection System ([11.1992 - 01.1996] (9211-9601)3S#..ST195) Diagram Toyota CALDINA
- Year
- 1995 - 1997
- Sales region
- Japan
- Frame
- ST195
- grade
- TZG
- body
- WG
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 02.1995
- To
- 08.1997
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23091
|
23091
23091-74220 Tube Sub-Assy, Fuel Pump[02.1995 - 01.1996] 3S#..ST195 |
23091-74220 |
US $115.02 |
||
| replacement | |||||
|
23091
|
23091
77209-20120
Tube Sub-Assy, Fuel Pump
[02.1995 - 01.1996] 3S#..ST195 |
77209-20120 |
— | ||
|
23204
|
23204
23204-74690 Tube Sub-Assy, Fuel Pump Return[02.1995 - 01.1996] 3S#..ST195 |
23204-74690 |
US $35.53 |
||
|
23206A
|
23206A
23206-74690 Bracket, Fuel Pump[02.1995 - 01.1996] 3S#..ST195 |
23206-74690 |
US $106.29 |
||
|
23206B
|
23206B
77169-60010 Gasket, Fuel Pump Bracket[02.1995 - 01.1996] 3S#,4SFE..ST19# |
77169-60010 |
from US $11.06 |
||
|
23217A
|
23217A
23217-46090 Filter, Fuel Pump[03.1994 - 01.1996] 3S#,4SFE..ST19# ＮＩＰＰＯＮＤＥＮＳＯ |
23217-46090 |
from US $7.64 |
||
|
23217A
|
23217A
23217-74021 Filter, Fuel Pump[03.1994 - 01.1996] 3S#,4SFE..ST19# ＡＩＳＡＮ |
23217-74021 |
from US $10.22 |
||
|
23220P
|
23220P
23220-74020
Pump Assy, Fuel
[03.1994 - 01.1996] 3S#,4SFE..ST19# ＡＩＳＡＮ |
23220-74020 |
— | ||
| replacements | |||||
|
23220P
|
23220P
23217-0D070 Filter, Fuel Pump[03.1994 - 01.1996] 3S#,4SFE..ST19# ＡＩＳＡＮ |
23217-0D070 |
from US $8.07 |
||
|
23220P
|
23220P
23221-28280 Pump Assy, Fuel (without filter)[03.1994 - 01.1996] 3S#,4SFE..ST19# ＡＩＳＡＮ |
23221-28280 |
from US $421.47 |
||
|
23220P
|
23220P
23229-16010 Clip(For Fuel Pump Filter)[03.1994 - 01.1996] 3S#,4SFE..ST19# ＡＩＳＡＮ |
23229-16010 |
from US $0.84 |
||
|
23220P
|
23220P
23220-74021
Pump Assy, Fuel
[01.1996 - 08.1997] 5EFE..ET196; 3S#..ST19# |
23220-74021 |
— | ||
| replacements | |||||
|
23220P
|
23220P
23217-0D070 Filter, Fuel Pump[01.1996 - 08.1997] 5EFE..ET196; 3S#..ST19# |
23217-0D070 |
from US $8.07 |
||
|
23220P
|
23220P
23221-28280 Pump Assy, Fuel (without filter)[01.1996 - 08.1997] 5EFE..ET196; 3S#..ST19# |
23221-28280 |
from US $421.47 |
||
|
23220P
|
23220P
23229-16010 Clip(For Fuel Pump Filter)[01.1996 - 08.1997] 5EFE..ET196; 3S#..ST19# |
23229-16010 |
from US $0.84 |
||
|
23220P
|
23220P
23221-46010 Pump Assy, Fuel[03.1994 - 01.1996] 3S#,4SFE..ST19# ＮＩＰＰＯＮＤＥＮＳＯ |
23221-46010 |
from US $324.91 |
||
|
23222
|
23222
23222-74010
Tube, Fuel Return Jet
[02.1995 - 01.1996] 3S#..ST195 |
23222-74010 |
— | ||
|
23222
|
23222
23222-74020
Tube, Fuel Return Jet
[01.1996 - 08.1997] 3S#..ST195 |
23222-74020 |
— | ||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[01.1996 -] 3S#..ST19# |
23229-16010 |
from US $0.84 |
||
|
23233
|
23233
23239-11010 Hose, Fuel Pump[02.1994 - 01.1996] 3SFE,4SFE..ST190,191; 3S#..ST195 ＮＯ．１ |
23239-11010 |
US $10.88 |
||
|
23233
|
23233
23239-74630 Hose, Fuel Pump[11.1992 - 01.1996] 3S#..ST195 ＮＯ．２ |
23239-74630 |
US $19.66 |
||
|
23233
|
23233
23239-74640 Hose, Fuel Pump[11.1992 - 01.1996] 3S#..ST195 ＮＯ．３ |
23239-74640 |
US $19.66 |
||
|
23233B
|
23233B
90467-12067 Clip(For Fuel Pump Hose)[01.1996 -] 3S#..ST19# |
90467-12067 |
from US $1.27 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[11.1992 -] 5EFE..ET196; 3S#,4SFE..ST19# |
23249-74610 |
from US $8.56 |
||
|
9011906347
|
9011906347
90119-06347 New Genuine Part |
90119-06347 |
US $1.28 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.66 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9040112097
|
9040112097
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe) |
90401-12097 |
from US $3.08 |
||
|
9043012026
|
9043012026
90430-12026 Gasket |
90430-12026 |
from US $0.94 |
||
|
9046711056
|
9046711056
90467-11056
Clamp Or Clip(For Water By-Pass Hose)
|
90467-11056 |
— | ||
| replacement | |||||
|
9046711056
|
9046711056
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.93 |
||
|
9533306020
|
9533306020
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
|
95333-06020 |
— | ||
| replacement | |||||
|
9533306020
|
9533306020
95337-06020 Hose, Differential Pressure Control |
95337-06020 |
from US $9.12 |
||
