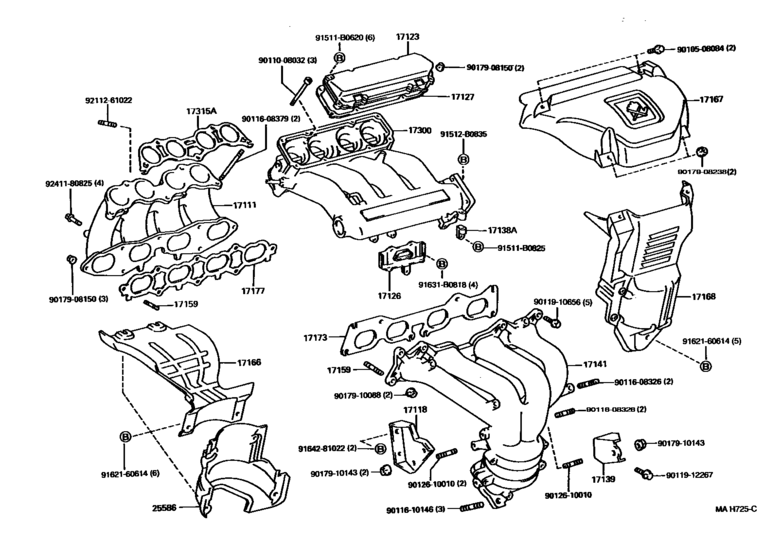

Manifold ([02.1995 - 08.1997] (9502-9708)3SGE) Diagram Toyota CALDINA
- Year
- 1995 - 1997
- Sales region
- Japan
- Frame
- ST195
- grade
- TZG
- body
- WG
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 02.1995
- To
- 08.1997
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-88460 Manifold, Intake[02.1995 - 08.1997] 3SGE..ST195 |
17101-88460 |
US $910 |
||
|
17118
|
17118
17118-88461 Stay, Manifold[02.1995 - 08.1997] 3SGE..ST195 |
17118-88461 |
US $40.91 |
||
|
17123
|
17123
17123-88460
Cover, Surge Tank
[02.1995 - 08.1997] 3SGE..ST195 |
17123-88460 |
— | ||
|
17126
|
17126
17126-88460
Stay, Surge Tank, No.2
[02.1995 - 08.1997] 3SGE..ST195 |
17126-88460 |
— | ||
|
17127
|
17127
17127-88460 Gasket, Surge Tank Cover[02.1995 - 08.1997] 3SGE..ST195 |
17127-88460 |
US $17.63 |
||
|
17138A
|
17138A
17138-88460 Stay, Intake Pipe[02.1995 - 08.1997] 3SGE..ST195 |
17138-88460 |
US $29.12 |
||
|
17139
|
17139
17139-88461 Stay, Manifold, No.2[02.1995 - 08.1997] 3SGE..ST195 |
17139-88461 |
US $26.94 |
||
|
17141
|
17141
17140-88460 Manifold, Exhaust[02.1995 - 08.1997] 3SGE..ST195 |
17140-88460 |
US $1,630.72 |
||
|
17159
|
17159
90116-08242
Bolt, Stud(For Manifold To Cylinder Head)
[02.1995 - 01.1996] 3SGE..ST195 INTAKE MANIFOLD |
90116-08242 |
— | ||
|
17159
|
17159
90116-10169 Bolt, Stud(For Manifold To Cylinder Head)used for exhaust manifold [02.1995 - 08.1997] 3SGE..ST195 EXHAUST MANIFOLD |
90116-10169 |
from US $1.44 |
||
|
17166
|
17166
17166-88460 Insulator, Exhaust Manifold Heat,no.4[02.1995 - 08.1997] 3SGE..ST195 |
17166-88460 |
US $77.17 |
||
|
17167
|
17167
17167-88461 Insulator, Exhaust Manifold Heat, No.1[02.1995 - 08.1997] 3SGE..ST195 |
17167-88461 |
US $133.95 |
||
|
17168
|
17168
17168-88462 Insulator, Exhaust Manifold Heat, No.2[02.1995 - 08.1997] 3SGE..ST195 |
17168-88462 |
US $135.41 |
||
|
17173
|
17173
17173-88480
Gasket, Exhaust Manifold To Head
[02.1995 - 04.1997] 3SGE..ST195 |
17173-88480 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-88581 Gasket, Exhaust Manifold To Head[02.1995 - 04.1997] 3SGE..ST195 |
17173-88581 |
US $71.74 |
||
|
17173
|
17173
17173-88580
Gasket, Exhaust Manifold To Head
[04.1997 - 08.1997] 3SGE..ST195 |
17173-88580 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-88581 Gasket, Exhaust Manifold To Head[04.1997 - 08.1997] 3SGE..ST195 |
17173-88581 |
US $71.74 |
||
|
17177
|
17177
17177-88460 Gasket, Intake Manifold To Head, No.1[02.1995 - 08.1997] 3SGE..ST195 |
17177-88460 |
from US $11.27 |
||
|
17300
|
17300
17300-88463 Valve Assy, Intake Air Control[02.1995 - 06.1996] 3SGE..ST195 |
17300-88463 |
US $1,006.10 |
||
| replacements | |||||
|
17300
|
17300
17300-88469 Valve Assy, Intake Air Control[02.1995 - 06.1996] 3SGE..ST195 |
17300-88469 |
US $1,009.01 |
||
|
17300
|
17300
17342-88460
Hose, No.2(For Idle-Up)
[02.1995 - 06.1996] 3SGE..ST195 |
17342-88460 |
— | ||
|
17300
|
17300
17362-88460
Tube, Air, No.2
[02.1995 - 06.1996] 3SGE..ST195 |
17362-88460 |
— | ||
|
17300
|
17300
17300-88469 Valve Assy, Intake Air Control[06.1996 - 08.1997] 3SGE..ST195 |
17300-88469 |
US $1,009.01 |
||
|
17315A
|
17315A
17315-88460 Gasket, Intake Air Control Valve[02.1995 - 08.1997] 3SGE..ST195 |
17315-88460 |
US $17.63 |
||
|
25586
|
25586
25586-88460 Insulator, Manifold Converter, No.1[02.1995 - 08.1997] 3SGE..ST195 |
25586-88460 |
US $36.40 |
||
|
91511B0620
|
91511B0620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.76 |
||
|
91511B0825
|
91511B0825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.07 |
||
|
91512B0835
|
91512B0835
91512-B0835 Bolt (for Pawl Stopper Plate) |
91512-B0835 |
US $1.75 |
||
| replacement | |||||
|
91512B0835
|
91512B0835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.56 |
||
|
91631B0818
|
91631B0818
91631-B0818 BOLTWWASHER |
91631-B0818 |
US $2.08 |
||
|
9010508084
|
9010508084
90105-08084 Bolt |
90105-08084 |
US $2.56 |
||
|
9011008032
|
9011008032
90110-08032
New Genuine Part
|
90110-08032 |
— | ||
|
9011608326
|
9011608326
90116-08326 Bolt, Stud(For Oxygen Sensor) |
90116-08326 |
US $6.12 |
||
|
9011608379
|
9011608379
90116-08379
New Genuine Part
|
90116-08379 |
— | ||
|
9011610146
|
9011610146
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe) |
90116-10146 |
from US $1.91 |
||
|
9011910656
|
9011910656
90119-10656 New Genuine Part |
90119-10656 |
US $2.08 |
||
|
9011912267
|
9011912267
90119-12267 New Genuine Part |
90119-12267 |
US $1.92 |
||
|
9012610010
|
9012610010
90126-10010
New Genuine Part
|
90126-10010 |
— | ||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $1.05 |
||
|
9017908238
|
9017908238
90179-08238
New Genuine Part
|
90179-08238 |
— | ||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.13 |
||
|
9017910143
|
9017910143
90179-10143 Nut(For Front Suspension Support) |
90179-10143 |
US $3.20 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9164281022
|
9164281022
91642-81022 BOLT WWASHER |
91642-81022 |
US $2.33 |
||
| replacement | |||||
|
9164281022
|
9164281022
91642-H1022 BOLT W-WASHER |
91642-H1022 |
US $2.24 |
||
|
9211261022
|
9211261022
92112-61022 New Genuine Part |
92112-61022 |
US $2.33 |
||
|
9241180825
|
9241180825
92411-80825 New Genuine Part |
92411-80825 |
US $1.75 |
||
