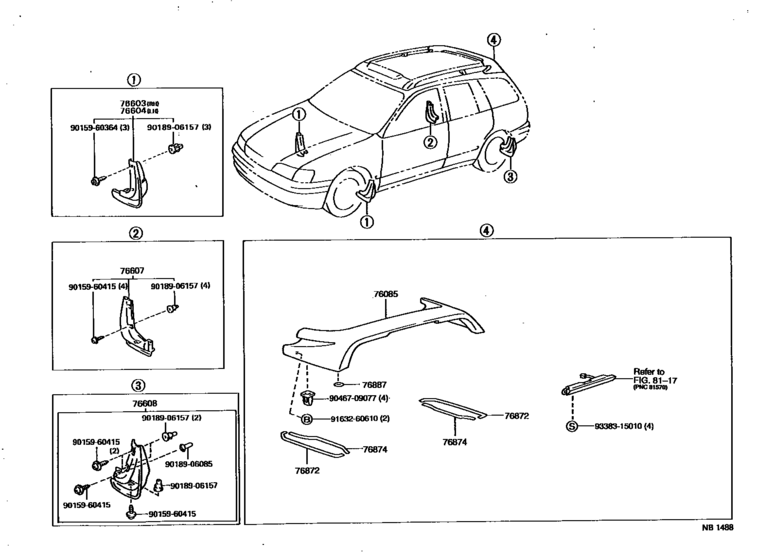

Mudguard & Spoiler ([01.1996 - ] ｴｱﾘｱﾙ (9601- )ST19#) Diagram Toyota CALDINA
- Year
- 1995 - 1997
- Sales region
- Japan
- Frame
- ST195
- grade
- TZG
- body
- WG
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 02.1995
- To
- 08.1997
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76085
|
76085
76085-21900 Spoiler Sub-Assy, Rear[02.1995 - 01.1996] ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
76085-21900 |
US $506.69 |
||
|
76085
|
76085
76085-21901 Spoiler Sub-Assy, Rear[02.1995 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG |
76085-21901 |
US $582.40 |
||
|
76085
|
76085
76871-21902 Spoiler Sub-Assy, Rear[01.1996 - 08.1997] ST19# ｴｱﾘｱﾙ |
76871-21902 |
US $538.72 |
||
|
76603
|
76603
76621-29135-A0
Mudguard Sub-Assy, Front Fender, Rh
[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG SUPER WHITE 2,040 |
76621-29135-A0 |
— | ||
|
76603
|
76603
76621-29135-B1 Mudguard Sub-Assy, Front Fender, Rh[01.1995 - 01.1996] CT190,ST19#..CZ,TZ,TZG BL.GRAY.ME,23V ,25V ,26V |
76621-29135-B1 |
US $94.64 |
||
|
76603
|
76603
76621-29135-B2 Mudguard Sub-Assy, Front Fender, Rh[02.1994 - 01.1996] CT190,ST19#..CZ,TZ,TZG LI.GRAIGE ME,1A2 |
76621-29135-B2 |
US $94.64 |
||
|
76603
|
76603
76621-29135-B4 Mudguard Sub-Assy, Front Fender, Rh[01.1996 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG BLUISH SILVER ME.,1A0 |
76621-29135-B4 |
US $94.64 |
||
|
76603
|
76603
76621-29135-D2 Mudguard Sub-Assy, Front Fender, Rh[02.1994 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG MAGENTA MC,3L3 |
76621-29135-D2 |
US $94.64 |
||
|
76603
|
76603
76621-29135-G0 Mudguard Sub-Assy, Front Fender, Rh[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG DK.GRAYISH OLIVE ME,6M7 |
76621-29135-G0 |
US $48.05 |
||
|
76603
|
76603
76621-29135-J2 Mudguard Sub-Assy, Front Fender, Rh[01.1996 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG DK.BLUE M.M.,8L3 |
76621-29135-J2 |
US $94.64 |
||
|
76603
|
76603
76621-29185-B0 Mudguard Sub-Assy, Front Fender, Rh[01.1995 - 01.1996] ST191,195 ﾂ-ﾘﾝｸﾞﾊﾞ-ｼﾞﾖﾝ,BL.GRAY ME,23V ,25V ,26V |
76621-29185-B0 |
US $96.10 |
||
|
76603
|
76603
76621-29185-B3 Mudguard Sub-Assy, Front Fender, Rh[05.1996 - 09.1996] ST195..TZG TZ-G ﾘﾐﾃﾂﾄﾞ*(G),*(J),BLUISH SILVER ME,1A0; ST19#..TZ TZﾘﾐﾃﾂﾄﾞ*(G),*(J),BLUISH SILVER ME,1A0 |
76621-29185-B3 |
US $96.10 |
||
|
76604
|
76604
76622-29135-A0
Mudguard Sub-Assy, Front Fender, Lh
[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG SUPER WHITE 2,040 |
76622-29135-A0 |
— | ||
|
76604
|
76604
76622-29135-B1 Mudguard Sub-Assy, Front Fender, Lh[01.1995 - 01.1996] CT190,ST19#..CZ,TZ,TZG BL.GRAY.ME,23V ,25V ,26V |
76622-29135-B1 |
US $94.64 |
||
|
76604
|
76604
76622-29135-B2 Mudguard Sub-Assy, Front Fender, Lh[02.1994 - 01.1996] CT190,ST19#..CZ,TZ,TZG LI.GRAIGE ME,1A2 |
76622-29135-B2 |
US $94.64 |
||
|
76604
|
76604
76622-29135-B4 Mudguard Sub-Assy, Front Fender, Lh[01.1996 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG BLUISH SILVER ME.,1A0 |
76622-29135-B4 |
US $94.64 |
||
|
76604
|
76604
76622-29135-D2 Mudguard Sub-Assy, Front Fender, Lh[02.1994 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG MAGENTA MC,3L3 |
76622-29135-D2 |
US $94.64 |
||
|
76604
|
76604
76622-29135-G0 Mudguard Sub-Assy, Front Fender, Lh[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG DK.GRAYISH OLIVE ME,6M7 |
76622-29135-G0 |
US $48.05 |
||
|
76604
|
76604
76622-29135-J2 Mudguard Sub-Assy, Front Fender, Lh[01.1996 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG DK.BLUE M.M.,8L3 |
76622-29135-J2 |
US $94.64 |
||
|
76604
|
76604
76622-29185-B0 Mudguard Sub-Assy, Front Fender, Lh[01.1995 - 01.1996] ST191,195 ﾂ-ﾘﾝｸﾞﾊﾞ-ｼﾞﾖﾝ,BL.GRAY ME,23V ,25V ,26V |
76622-29185-B0 |
US $96.10 |
||
|
76604
|
76604
76622-29185-B3 Mudguard Sub-Assy, Front Fender, Lh[05.1996 - 09.1996] ST195..TZG TZ-G ﾘﾐﾃﾂﾄﾞ*(G),*(J),BLUISH SILVER ME,1A0; ST19#..TZ TZﾘﾐﾃﾂﾄﾞ*(G),*(J),BLUISH SILVER ME,1A0 |
76622-29185-B3 |
US $96.10 |
||
|
76607
|
76607
76625-29125-A0
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG SUPER WHITE 2,040 |
76625-29125-A0 |
— | ||
|
76607
|
76607
76625-29125-B1 Mudguard Sub-Assy, Quarter Panel, Rear Rh[01.1995 - 01.1996] CT190,ST19#..CZ,TZ,TZG BL.GRAY.ME,23V ,25V ,26V |
76625-29125-B1 |
US $94.64 |
||
|
76607
|
76607
76625-29125-B2 Mudguard Sub-Assy, Quarter Panel, Rear Rh[02.1994 - 01.1996] CT190,ST19#..CZ,TZ,TZG LI.GRAIGE ME,1A2 |
76625-29125-B2 |
US $94.64 |
||
|
76607
|
76607
76625-29125-B5 Mudguard Sub-Assy, Quarter Panel, Rear Rh[01.1996 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG BLUISH SILVER ME.,1A0 |
76625-29125-B5 |
US $94.64 |
||
|
76607
|
76607
76625-29125-D2 Mudguard Sub-Assy, Quarter Panel, Rear Rh[02.1994 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG MAGENTA MC,3L3 |
76625-29125-D2 |
US $94.64 |
||
|
76607
|
76607
76625-29125-G0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG DK.GRAYISH OLIVE ME,6M7 |
76625-29125-G0 |
US $48.05 |
||
|
76607
|
76607
76625-29125-J2 Mudguard Sub-Assy, Quarter Panel, Rear Rh[01.1996 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG DK.BLUE M.M.,8L3 |
76625-29125-J2 |
US $94.64 |
||
|
76608
|
76608
76626-29125-A0
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG SUPER WHITE 2,040 |
76626-29125-A0 |
— | ||
|
76608
|
76608
76626-29125-B1 Mudguard Sub-Assy, Quarter Panel, Rear Lh[01.1995 - 01.1996] CT190,ST19#..CZ,TZ,TZG BL.GRAY.ME,23V ,25V ,26V |
76626-29125-B1 |
US $94.64 |
||
|
76608
|
76608
76626-29125-B2 Mudguard Sub-Assy, Quarter Panel, Rear Lh[02.1994 - 01.1996] CT190,ST19#..CZ,TZ,TZG LI.GRAIGE ME,1A2 |
76626-29125-B2 |
US $94.64 |
||
|
76608
|
76608
76626-29125-B5 Mudguard Sub-Assy, Quarter Panel, Rear Lh[01.1996 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG BLUISH SILVER ME.,1A0 |
76626-29125-B5 |
US $94.64 |
||
|
76608
|
76608
76626-29125-D2 Mudguard Sub-Assy, Quarter Panel, Rear Lh[02.1994 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG MAGENTA MC,3L3 |
76626-29125-D2 |
US $94.64 |
||
|
76608
|
76608
76626-29125-G0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[11.1992 - 01.1996] CT190,ST19#..CZ,TZ,TZG DK.GRAYISH OLIVE ME,6M7 |
76626-29125-G0 |
US $48.05 |
||
|
76608
|
76608
76626-29125-J2 Mudguard Sub-Assy, Quarter Panel, Rear Lh[01.1996 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG DK.BLUE M.M.,8L3 |
76626-29125-J2 |
US $94.64 |
||
|
76872
|
76872
76872-21020 Protector, Rear Spoiler, No.1[02.1995 - 08.1997] AT191,CT190,ST19#..CZ,TZ,TZG |
76872-21020 |
US $17.33 |
||
|
76872
|
76872
76872-21040 Protector, Rear Spoiler, No.1[02.1995 - 01.1996] ST191,195 ｽｶｲｷﾔﾉﾋﾟ- |
76872-21040 |
US $13.25 |
||
|
76872
|
76872
76872-21050 Protector, Rear Spoiler, No.1[01.1996 - 08.1997] ST19# ｴｱﾘｱﾙ |
76872-21050 |
US $6.26 |
||
|
76874
|
76874
76873-21030 Protector, Rear Spoiler, No.3[01.1996 - 08.1997] ST19# ｴｱﾘｱﾙ |
76873-21030 |
US $6.12 |
||
| replacement | |||||
|
76874
|
76874
76872-21050 Protector, Rear Spoiler, No.1[01.1996 - 08.1997] ST19# ｴｱﾘｱﾙ |
76872-21050 |
US $6.26 |
||
|
76887
|
76887
76887-21020 Seal, Rear Spoiler[02.1995 - 08.1997] ST191,195 ﾂ-ﾘﾝｸﾞﾊﾞ-ｼﾞﾖﾝ |
76887-21020 |
US $6.41 |
||
|
9015960364
|
9015960364
90159-60364 SCREW WWASHER |
90159-60364 |
from US $0.88 |
||
|
9015960415
|
9015960415
90159-60415 SCREW WWASHER |
90159-60415 |
from US $0.86 |
||
|
9018906085
|
9018906085
90189-06085 GROMMET |
90189-06085 |
US $1.89 |
||
|
9018906157
|
9018906157
90189-06157 GROMMET SCREW |
90189-06157 |
from US $0.78 |
||
|
9046709077
|
9046709077
90467-09077 Clip(For Rear Combination Lamp) |
90467-09077 |
from US $0.82 |
||
|
9163260610
|
9163260610
91632-60610 New Genuine Part |
91632-60610 |
US $1.46 |
||
| replacement | |||||
|
9163260610
|
9163260610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.90 |
||
|
9338315010
|
9338315010
93383-15010 New Genuine Part |
93383-15010 |
US $0.96 |
||
