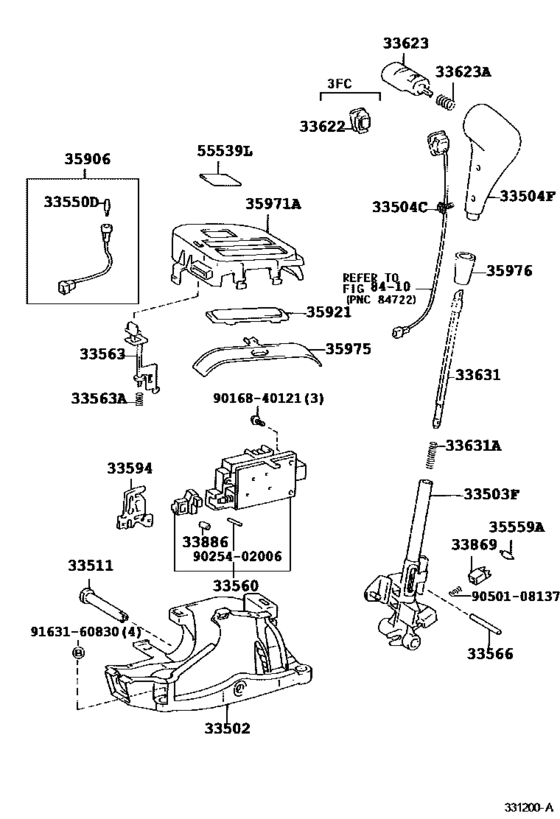

Shift Lever & Retainer ([01.1996 - ] (9601- )ATM) Diagram Toyota CALDINA
- Year
- 1995 - 1997
- Sales region
- Japan
- Frame
- ST195
- grade
- TZG
- body
- WG
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 02.1995
- To
- 08.1997
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33502
|
33502
33502-20320 Plate Sub-Assy, Shift Lever[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM |
33502-20320 |
US $110.66 |
||
|
33502
|
33502
33521-20280 Plate Sub-Assy, Shift Lever[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
33521-20280 |
US $53 |
||
|
33503F
|
33503F
33055-20180 Lever Sub-Assy, Shift(For Floor Shift)[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
33055-20180 |
US $85.90 |
||
|
33503F
|
33503F
33503-20520 Lever Sub-Assy, Shift(For Floor Shift)[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM |
33503-20520 |
US $74.26 |
||
|
33504C
|
33504C
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM |
90159-40109 |
US $1.28 |
||
|
33504C
|
33504C
93339-54008 Screw (For Shift Lever Knob Setting)[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
93339-54008 |
US $1.46 |
||
|
33504F
|
33504F
33542-20100-C0 Knob Sub-Assy, Shift Lever (Urethane) Black[02.1994 - 01.1996] CT190,196,ET196,ST19#..ATM BLACK,TRIM1# |
33542-20100-C0 |
US $46.82 |
||
|
33504F
|
33504F
33542-20180-C0 Knob Sub-Assy, Shift Lever[01.1996 - 06.2002] AT191,CT190,196,197,ET196,ST19#..ATM BLACK,TRIM1# |
33542-20180-C0 |
US $60.72 |
||
|
33511
|
33511
33511-16070 Shaft, Control (For Floor Shift)[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
33511-16070 |
US $8.59 |
||
|
33511
|
33511
33511-20270 Shaft, Control (For Floor Shift)[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM |
33511-20270 |
US $56.93 |
||
|
33550D
|
33550D
90981-11014 Bulb, Position Indicator Lamp[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM １４Ｖ １．４Ｗ |
90981-11014 |
from US $1.92 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.24 |
||
|
33560
|
33560
33560-20010 Bracket Sub-Assy, Shift Lock Solenoid[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM |
33560-20010 |
US $170.35 |
||
|
33560
|
33560
33560-20020 Unit Assy, Shift Lock Control[01.1996 - 08.1997] AT191,CT190,196,ET196,ST19#..ATM |
33560-20020 |
US $138.32 |
||
| replacement | |||||
|
33560
|
33560
33560-20021 Unit Assy, Shift Lock Control[01.1996 - 08.1997] AT191,CT190,196,ET196,ST19#..ATM |
33560-20021 |
US $161.62 |
||
|
33563
|
33563
33563-20060 Button, Shift Lock Release[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM |
33563-20060 |
US $4.08 |
||
|
33563
|
33563
33563-20080 Button, Shift Lock Release[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
33563-20080 |
US $9.17 |
||
|
33563A
|
33563A
90501-06063 Spring, Compression (For Shift Lock Release Button)[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM |
90501-06063 |
US $1.89 |
||
|
33563A
|
33563A
90501-07103 Spring, Compression (For Shift Lock Release Button)[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
90501-07103 |
US $2.04 |
||
|
33566
|
33566
33566-20020 Pin, Shift Lever Stop[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
33566-20020 |
US $5.10 |
||
|
33594
|
33594
33594-20060 Plate, Shift Lock (For Floor Shift)[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
33594-20060 |
US $6.84 |
||
|
33623
|
33623
33623-20060-C0 Button, Shift Lever Knob[02.1994 - 01.1996] CT190,196,ET196,ST19#..ATM BLACK,TRIM1# |
33623-20060-C0 |
US $15.20 |
||
|
33623
|
33623
33623-20080-C0 Button, Shift Lever Knob[01.1996 - 06.2002] AT191,CT190,196,197,ET196,ST19#..ATM BLACK,TRIM1# |
33623-20080-C0 |
US $17.04 |
||
|
33623A
|
33623A
90501-06088 Spring, Compression (For Shift Lever Knob Button)[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
90501-06088 |
US $1.75 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM |
90501-07009 |
from US $4.49 |
||
|
33631
|
33631
33631-16050 Rod, Detent[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM |
33631-16050 |
US $14.41 |
||
|
33631
|
33631
33631-20170 Rod, Detent[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
33631-20170 |
US $9.46 |
||
|
33631A
|
33631A
90501-07074 Spring, Compression (For Detent Rod)[11.1992 - 01.1996] CT190,196,ST19#..4FC |
90501-07074 |
US $0.79 |
||
|
33631A
|
33631A
90501-08111 Spring, Compression (For Detent Rod)[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
90501-08111 |
US $1.46 |
||
|
33869
|
33869
33869-20020 Holder, Shift Lever Detent Roller[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
33869-20020 |
US $5.24 |
||
|
33886
|
33886
33886-20030 Stopper, Shift Lever[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
33886-20030 |
US $2.33 |
||
|
35559A
|
35559A
90903-61002 Roller (For Shift Lock Switch)[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
90903-61002 |
US $2.04 |
||
|
35906
|
35906
35906-20070 Wire Sub-Assy, Indicator Lamp[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM |
35906-20070 |
US $18.78 |
||
| replacement | |||||
|
35906
|
35906
35906-42040
Wire Sub-Assy, Indicator Lamp
[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM |
35906-42040 |
— | ||
|
35906
|
35906
35906-20090 Wire Sub-Assy, Indicator Lamp[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
35906-20090 |
US $11.94 |
||
|
35921
|
35921
35921-20310 Plate, Control Position Indicator[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM |
35921-20310 |
US $54.31 |
||
|
35921
|
35921
35921-20350 Plate, Control Position Indicator[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
35921-20350 |
US $22.42 |
||
|
35971A
|
35971A
35971-20230 Housing, Position Indicator, Upper[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM |
35971-20230 |
US $35.53 |
||
|
35971A
|
35971A
35971-20290 Housing, Position Indicator, Upper[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
35971-20290 |
US $35.38 |
||
|
35975
|
35975
35975-20120 Cover, Slide (For Position Indicator)[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM |
35975-20120 |
US $17.04 |
||
|
35975
|
35975
35975-20160 Cover, Slide (For Position Indicator)[01.1996 -] AT191,CT190,196,197,ET196,ST19#..ATM |
35975-20160 |
US $38.26 |
||
|
35976
|
35976
35976-20050 Cover, Slide, No.2 (For Position Indicator)[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM LWR,L=149.2 |
35976-20050 |
US $11.65 |
||
|
35976
|
35976
35976-20060 Cover, Slide, No.2 (For Position Indicator)[11.1992 - 01.1996] CT190,196,ET196,ST19#..ATM UPR,L=122.2 |
35976-20060 |
US $15.43 |
||
|
35976
|
35976
35976-20090-C0 Cover, Slide, No.2 (For Position Indicator)[01.1996 - 06.2002] AT191,CT190,196,197,ET196,ST19#..ATM BLACK,TRIM1# |
35976-20090-C0 |
US $10.77 |
||
|
9016840121
|
9016840121
90168-40121 New Genuine Part |
90168-40121 |
US $1.24 |
||
|
9025402006
|
9025402006
90254-02006 Pin, Slotted Spring (For Shift Lock Solenoid Link) |
90254-02006 |
US $1.75 |
||
|
9050108137
|
9050108137
90501-08137 New Genuine Part |
90501-08137 |
US $0.73 |
||
|
9163160830
|
9163160830
91631-60830
New Genuine Part
|
91631-60830 |
— | ||
| replacement | |||||
|
9163160830
|
9163160830
91631-G0830 BOLT WWASHER |
91631-G0830 |
US $2.56 |
||
